700P ELF ISUZU Road Sweeper Truck Mounted Street Sweeper 10000L
Price:
Negotiable
MOQ:
1 UNIT
Delivery Time:
45-60 work days
Brand:
ISUZU
Product Description
ISUZU 700P ELF 10000L Self Dump Street Sweeper Road Cleaning Truck
Product Description
Road sweeper truck is also called street sweeper truck, street cleaning truck, road sweeper vehicle.
it combine the function of road sweeping, garbage collection and garbage transportation , is new type efficient sanitation special cleaning vehicle.
It is made of chassis, vice engine, air blower, electromagnetic valve, dust tank, water tank, sucker,
sweeper brush,spraying water system, hydraulic system, electric control system, etc.
It is mainly used to sweep the road garbage of street, highway,dock, station, square,cement mill,
electric power plant, etc.
Product Parameters
| Vehicle performance and parameters | |||
| Item | Parameter | Unit | |
| Working Performance | Max sweep width | 3 | m |
| Low pressure flushing width | 24 | m | |
| Sweep speed | 3—15 | km/h | |
| Max sweep capacity | 70000 | m2/h | |
| Max inhalation of granularity | ≥110 | mm | |
| Angle of unloading | ≥48 | . | |
| Volume of water tank | 5000 | L | |
| Volume of garbage tank | 5000 | L | |
| Driving Performance | Max speed | 98 | km/h |
| Max grade-ability | 30 | % | |
| Braking distance | ≤10 | m | |
| Min turning diameter | ≤13.6 | m | |
| Fuel Performance | Fuel consumption(Driving) | ≤12 | L/100km |
| Fuel consumption(Sweep working at 8km/h) | 6.5 | L/h | |
| 2.7 | L/10000m2 | ||
| Quality Parameters | Curb weight | 7000 | kg |
| Rated capacity | 4200 | kg | |
| GVW | 11000 | kg | |
| Dimension Parameter | Wheelbase | 3815 | mm |
| Track front | 1745 | mm | |
| Track rear | 1640 | mm | |
| Front suspension | 1130 | mm | |
| Rear suspension | 2070 | mm | |
| Approach angle | 21 | . | |
| Departure angle | 12 | . | |
Product Images

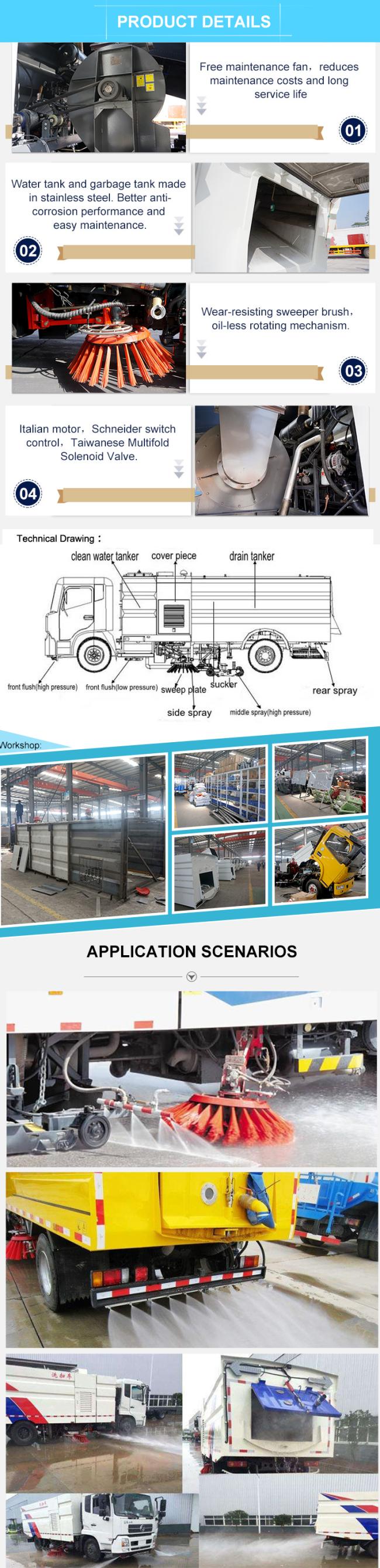

Product Details
