ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
Price:
USD 61200- USD 64200/ UNIT
MOQ:
1 UNIT
Delivery Time:
45-60 work days
Brand:
ISUZU
Product Description

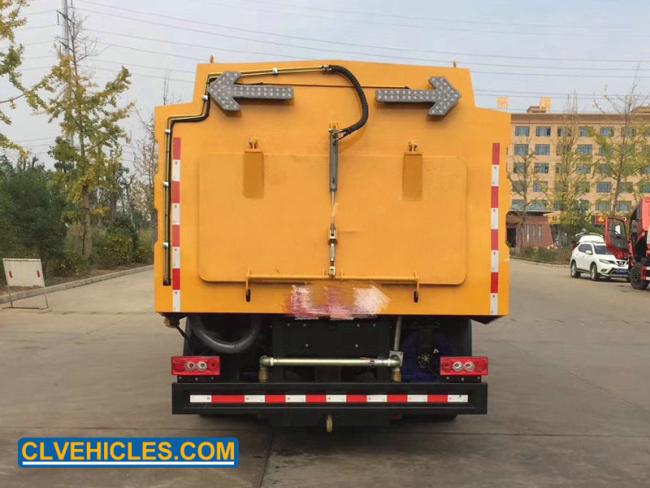

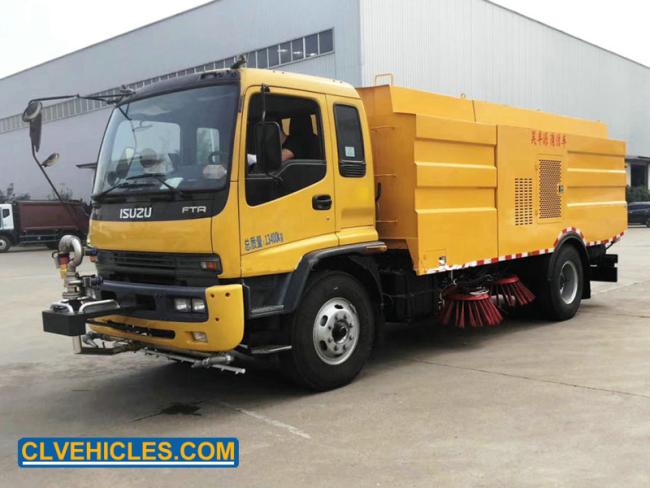

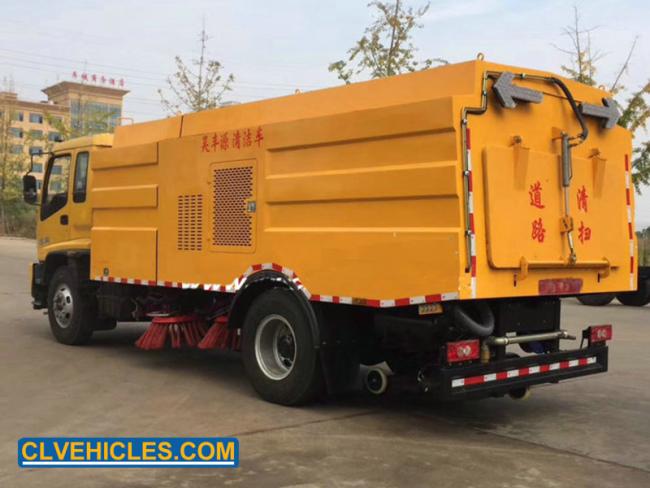

ISUZU FTR 205hp 4000L Water Tank 8000L Waste Tank Road Sweeper Truck
Product Description
This road sweeper truck with function sweeping road and water sprinkling cleaning road.
The structure design with two sweepers in the middle and nozzle at the back ensure wide sweeping width and high efficiency. in addition, it helps to facilitate sweeper installation and nozzle adjustment and maintenance. the nozzle has a short elevation in front and a large ground clearance, ensuring ease of passage for the vehicle.
![Dongfeng Tianjin 10000L Road Sweeper Truck with Right Hand Driving for Sale]()
![Dongfeng Tianjin 10000L Road Sweeper Truck with Right Hand Driving for Sale]()
![Dongfeng Tianjin 10000L Road Sweeper Truck with Right Hand Driving for Sale]()
![Dongfeng Tianjin 10000L Road Sweeper Truck with Right Hand Driving for Sale]()
~If you have any question or optional require, please feel free to chat me at below
The structure design with two sweepers in the middle and nozzle at the back ensure wide sweeping width and high efficiency. in addition, it helps to facilitate sweeper installation and nozzle adjustment and maintenance. the nozzle has a short elevation in front and a large ground clearance, ensuring ease of passage for the vehicle.
| Vehicle performance and parameters | |||
| Item | Parameter | Unit | |
| Working Performance | Max sweep width | 3.5 | m |
| Sweep speed | 3-20 | km/h | |
| Max sweep capacity | 70000 | m2/h | |
| Max inhalation of granularity | ≥120 | mm | |
| Angle of unloading | ≥45 | . | |
| Volume of water tank | 5000 | L | |
| Volume of garbage tank | 7000 | L | |
| Driving Performance | Max speed | 95 | km/h |
| Max gradeability | 30 | % | |
| Braking distance | ≤10 | m | |
| Min turning diameter | ≤13.6 | m | |
| Quality Parameter | Curb weight | 9800 | kg |
| GVW | 16000 | kg | |
| Dimension Parameter | Overall dimensions | 8090×2470×3050 | mm |
| Wheelbase | 4700 | mm | |
| Track front | 1680 | mm | |
| Track rear | 1640 | mm | |
| Front suspension | 1430 | mm | |
| Rear suspension | 1960 | mm | |
| Approach angle | 20 | . | |
| Departure angle | 12 | . | |
| Minimum Ground Clearance | 240 | mm | |
| Main parts and parameters | ||
| Chassis | Chassis model | ISUZU FTR |
| Engine model | 4HK1-TC50 | |
| Engine power | 150kw/ 205hp | |
| Clutch system | Single disc, dry type, diaphragm spring clutch | |
| Gearbox | MLD/ 6speed + 1reverse | |
| Driving axle | 6.3T/13T | |
| Tire | 10.00R20 | |
| Vice-fan Engine | Brand | B140-33 |
| Rated power | 102kw/ 140hp | |
| Fuel type | Diesel, share with chassis fuel tank | |
| Draught Fan | Type | High pressure centrifugal specialized draught fan |
| Rated speed | 2600—2900r/min | |
| Actuator type | Drive by vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission | |
| Hydraulic System | Type | Open type and electrohydraulic control system |
| Main part | Gear pump, cycloid motor, hydro cylinder, magnetic valve, hydraulic hand pump | |
| Hydraulic relief pressure | 16Mpa | |
| Hydraulic oil tank | 60L | |
| Spray Watering | Main part | Electric water pump, water filtration system, spray nozzle, water tank |
| Electric System | Composition | Made of chassis electric system and vice-fan engine with other work operating system |
| System voltage | 24V | |
| Battery model | 12-80A.H | |
| Sweeping Device | Type | Four sweeping devices between two axle in the middle, symmetric distribution on both side, drive by hydraulic motor, three speed level control, independent control |
| Diameter | 950mm | |
| Rotate speed | Three level: 110r/min 80r/min 60r/min | |
| Dip angle | Forerake 4o—6o , Out incline 4o—7o | |
| Suction Nozzle | Type | U-shaped , Free to move |
| Diameter | 200mm | |
| Ground clearance in working | 5—10mm | |
| Accessories |
LED arrows lamp Schneider Control switch Draught fan(maintenance-free) Manual pump emergency system CCTV camera and monitor system Hand wash and hose reel. |
|
