JMC Truck Mounted 27m Telescoping Aerial Work Platform/Hydraulic Lifting Platform
Price:
discuss in detail
MOQ:
1
Delivery Time:
Negotiable
Brand:
JIUBANG
Product Description
Products Description
Jiubang 27m aerial working vehicle adopts JMC/JAC/ISUZU as the working platform chassis, with the working height up to 27m. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.
|
|
|
|
|
|||
|
Brand
|
JAC/JMC/Isuzu
|
Drive
|
4 x 2
|
|||
|
Dimensions(L x W x H)
|
5995 x 2000 x 2980(mm)
|
Gross Vehicle Weight
|
4495 Kg
|
|||
|
Engine
|
Isuzu
|
Horsepower
|
95/115 HP
|
|||
|
Max. speed
|
110 / 99 Km/h
|
Emission Standard
|
Euro VI
|
|||
|
Wheelbase
|
3360 mm
|
Braking system
|
Oil brake
|
|||
|
Approach angle
|
27°
|
Departure angle
|
11°
|
|||
|
Cab
|
Single row / 2 passengers / Air Conditioner
|
|
|
|||
|
Aerial work platform
|
|
|
|
|||
|
Working platform dimensions
|
1400 x 710 x 1200 mm
|
Rated load
|
200 Kg
|
|||
|
Max. working height
|
27 m
|
Operating range at max. working height
|
3 m
|
|||
|
Max. operating range
|
12 m
|
Working height at max. operating range
|
17 m
|
|||
|
Working boom
|
Five section hexagonal work Boom
|
|
|
|||
|
PTO System
|
Mechanical operation
|
Rotary device
|
360 deg continuous rotation
|
|||
|
Derricking cylinder
|
1 set
|
Telescopic structure
|
Oil cylinder and wire rope
|
|||
|
Outrigger
|
Front V and rear H, separately controlled
|
|
|
|||
|
Outrigger span(TVS)
|
4140 mm
|
Outrigger span(I)
|
4300 mm
|
|||
|
Operation mode
|
Remote / electric / manual
|
|
|
|||
|
Emergency system
|
Automatic
|
|
|
|||
|
Control system
|
CAN bus control system
|
|
|
|||
|
Leveling system
|
Liquid automatic leveling
|
|
|
|||
|
Control voltage
|
12 V
|
|
|
|||
MORE STABLE LIFTING
Equipped with reducer and automatic leveling system

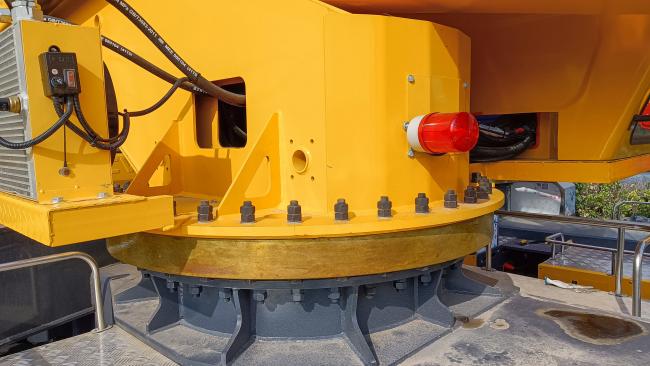

Equipped with Dejin rotary reducer, the movement speed is adjusted stably
Liquid automatic leveling system makes the working platform more stable
360 DEGREE ROTATION
The working platform and rotary device can rotate 360 degrees
The rotary device can rotate 360 degrees continuously
The manned platform can rotate 360 degrees continuously
FOUR IN ONE OPERATION
Different operation modes in different construction environments
MULTIPLE SECURITY GUARANTEES
Multiple safety schemes to ensure personnel and construction safety
HYDRAULIC OUTRIGGER
Interlock the outrigger and vehicle to prevent misoperation
The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way
AUTOMATIC EMERGENCY PUMP
When the engine and main pump fail, the staff can be sent back to the ground through the emergency system
For emergency stop operation and limit boom operation
When the working range reaches the specified value, the dangerous direction will be automatically limited
MORE PRODUCT DETAILS
Details determine product quality
OPTIONAL CONFIGURATION
Products support customization, giving you more choices
Panoramic operation room
Enlarge the working platform

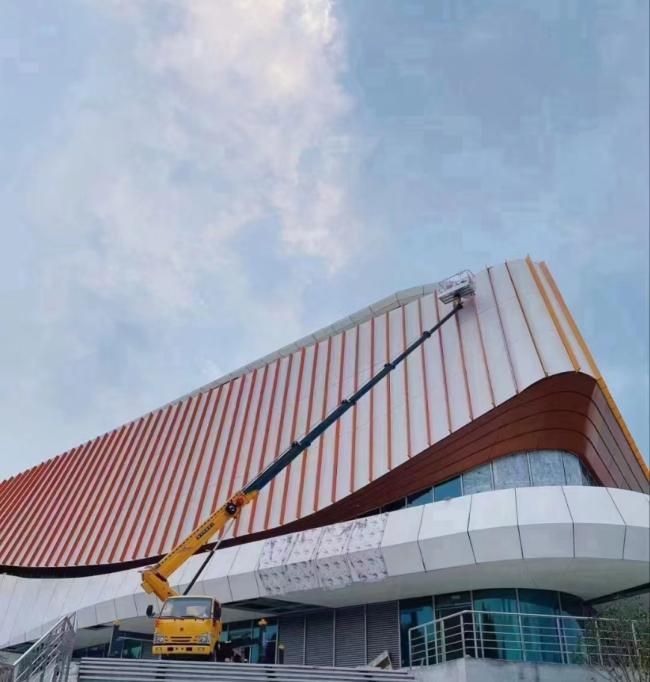

PRODUCT PHOTOGRAPH
More real product photos
