China 1064nm Crystal Fiber Laser Spares Nd YAG Rod For Laser Welding Machine for sale

1064nm Crystal Fiber Laser Spares Nd YAG Rod For Laser Welding Machine

Name: 1064nm Crystal Fiber Laser Spares Nd YAG Rodu00a0For Laser Welding Machine
Brand: Shenzhen Dapeng Laser Technology Co., Ltd

Price Negotiable

Price: USD300-1200

MOQ: 1 set

Delivery Time: 5-10 days

Product Description

Nd YAG Laser Rod / Yag Crystal / Laser crystal rod yag 1064nm Nd YAG Laser Crystal Rod

The ND:YAG continues as the best of the rare earth garnet materials that are characterized by four-level laser operation which permits low threshold pulse and cw operation.

Advantages of Nd:YAG Include:
High gain
Low threshold
High efficiency
Low loss at 1.06μm
Good thermal conductivity and thermal shock characteristics
Mechanical strength
High optical quality
Material characteristics that allow for various modes of operation
(CW,pulsed,Q-switched,mode locked,and cavity dumped)

Our general Nd:YAG production capabilities include:
Slab-Custom Geometries
Rod sizes form 2mm to 15mm in diameter and from 1mm to 220 mm in length
Nd dopant concentrations between 0.1 and 1.3%
Polished and AR coated barrels
MIL-C-675C adhesion,abrasion and humidity resistance
Damage threshold of over 15 J/cm2
A wide variety of anti-reflection,partial reflector,high reflector and dichroic coatings
Premium grade Nd:YAG,with lower wavefront distortion,is available upon request

Doping concentration Nd:	0.2 to 1.3 at%
Crystal orientation [111] or [100]	within 5 ° of deviation
Crystal bar size	Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements)
Dimensional tolerances	Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
Cylindrical processing	400 # abrasive grinding or polishing
End parallelism	≤ 10 "
Contour of the end face and the rod	≤ 5 '
Face flatness	Λ / 10 @ 632.8 nm
Surface Quality	10-5 (MIL-O-13830A)
Downside down	0.15 ± 0.05mm
Antireflection film reflectivity	≤ 0.25% @ 1064nm
Film resistance to laser damage threshold	≥ 500MW / cm2

Nd:YAG(Neodimium Doped Yttrium Aluminum Garnet) has been and continue to be the most widely used laser crystal for solid-state crystal material. Its laser parameters are a good compromise between the strengths and weaknesses of its competition. Nd:YAG crystals are used in all types of solid-state lasers systems-frequency-doubled continuous wave, high-energy Q-switched, and so forth. Compared with others laser crystals, its fluorescence lifetime is twice more than Nd:YVO4, and thermal conductivity is also better

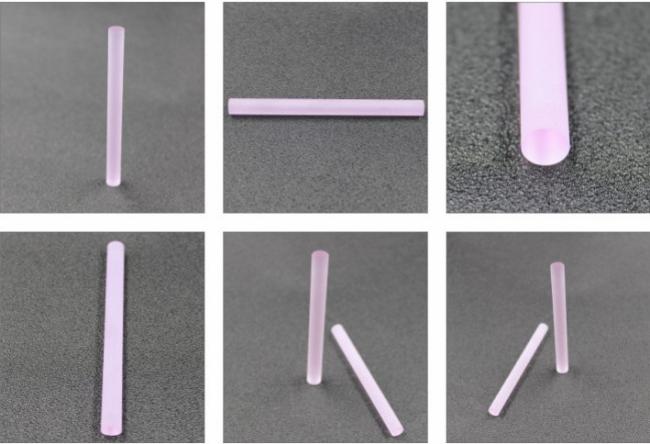

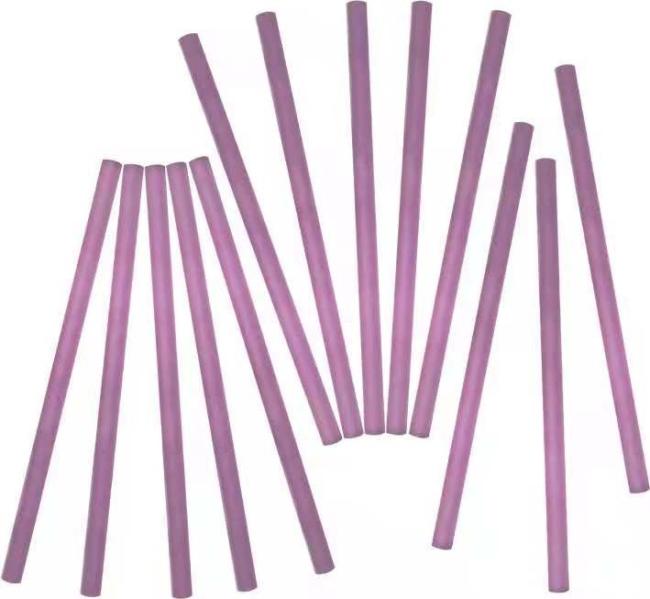

1064nm Nd YAG Laser Crystal Rod

Company Profile

Shenzhen Dapeng Laser Technology Co, Ltd. was established in 2011. It is a laser equipment high-tech enterprise that integrates R&D, manufacturing, sales and service. It is dedicated to laser process R&D, laser equipment design R&D, production, technical support, service and consulting. Our company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc, applied to electronics, IC chips, electrical appliances, lighting fixtures, jewelry, hardware tools, sanitary ware, instruments Instrumentation, automobile and motorcycle accessories, mobile phone communications components, molds, precision machinery, medical equipment, IT digital, metal housing, military aviation components, garment leather, craft gifts, advertising decoration, models, cookware, kitchen utensils and other industries. Dapeng laser product quality are stable and reliable, with a professional R & D team, while pursuing excellent quality, Dapeng laser also provides customers with timely, comfortable pre-sale, sales, after-sales service and excellent cost-effective products. Dapeng Laser has won the trust and praise of customers by implementing the business philosophy of "helping customers succeed, creating value models, and building industrial laser equipment industry to serve high-end brands". Customers are located throughout the country and overseas. In 2016, sold more than 5,000 laser equipment. Our company has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services.

Why Choose US

Dapeng Laser has established a complete production and sales and after-sales service system, has production bases in Shenzhen, Wenzhou,Kunshan and Xiamen, has a large-scale laser cutting machine production base in Dongguan, and has offices in major domestic industrial cities and regions. There are equipment demonstrations, process proofing, sales and after-sales services, and resident technical service personnel, to provide customers with timely, comfortable pre-sales, sales, after-sales support and services. Dapeng people know that quality and service are fundamental to the survival of the company. Innovation is the foundation for the long-tem development of the company. It helps customers create value and strives to build a well-known brand in the laser equipment industry.
