ANSI Rising Stem Metal Seat Gate Valve 50 mm Ductile Iron
ANSI/JIS Ductile Iron Rising Stem Metal Seat Gate Valve
Main parts materials:
· Body: GGG40/GGG50
· Bonnet: GGG40/GGG50
· Stem: 2Cr13/SS304/SS316/Brass
· Disc: GGG40/GGG50 with Brass/Bronze/Stainless steel
. Seat: Brass/Bronze/Stainless steel
· Stem nut: Brass
Description:
ANSI/JIS Ductile iron rising stem gate valve, with GGG40 or GGG50 body, and Brass/Bronze/Stainless steel sealing surface, manufactured for use in water, waste water, sewage, steam,oil and gas, being coated with epoxy power, the coated is make sure bigger than 250μm. The gate valves all guarantee 100% testing before packing and delivery.
Specifications:
|
Nominal Pressure |
Design Standard |
Face to Face |
Flange Standard |
|
125LB 150LB 5K 10K |
MSS SP-70 AWWA C509 JIS B2043 |
ANSI B16.10 JIS B2002 |
ANSI B16.1 ANSI B16.5 JIS B2212 |
|
Body |
Bonnet |
Stem |
Seat |
Nut |
Temp. |
Medium |
|
A126 A536 FCD400 FCD500 |
A126 A536 FCD400 FCD500 |
2Cr13 SS304 SS316 Brass |
Brass Bronze Stainless Steel |
Brass |
-20℃-120℃ |
Water Steam Oil Gas
|

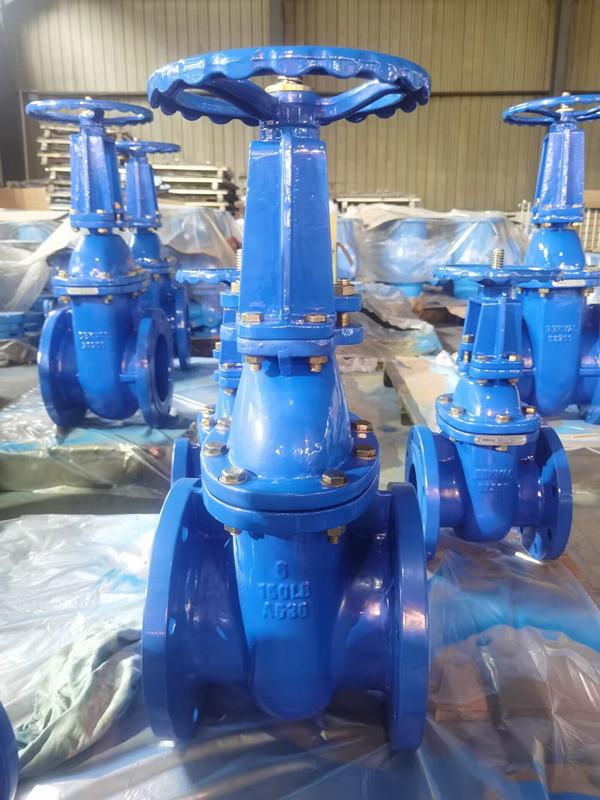

Valves wait for deliver
