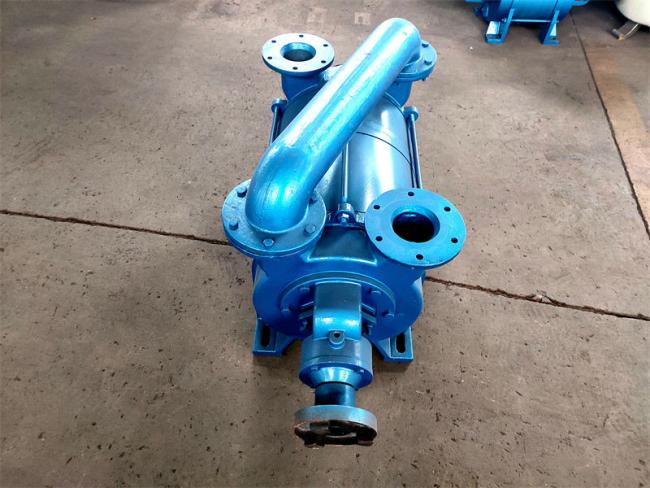

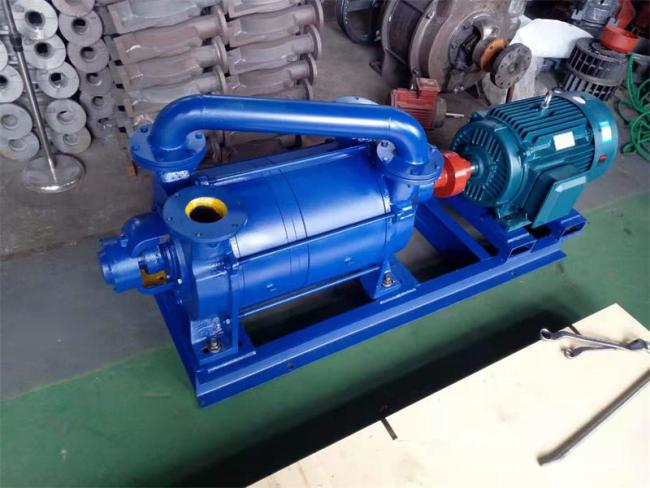

High Speed Two Stage Water Ring Vacuum Pumps 2.2kw To 55Kw 2SK-P1 Series
2SK-P1 series two-stage water ring vacuum pump-atmospheric jet pump unit-Water ring vacuum pump
2SK series two-stage water ring vacuum pump and 2SK-P1 series two-stage water ring vacuum pump-atmospheric jet pump unit are used to pump air and other non-corrosive, water-insoluble, and non-solid particles in order to obtain air in a closed container. higher vacuum It is widely used in vacuum evaporation, vacuum concentration, vacuum moisture resurgence, vacuum impregnation, vacuum drying and vacuum smelting in food, textile, chemical, pharmaceutical and metallurgical industries and electronic fields. The pump has the characteristics of high vacuum degree, high pumping speed in high vacuum area, compact structure, reliable process and convenient maintenance.
2SK series main technical performance parameter table
model | Pumping capacity (m／min) | Ultimate vacuum MPa(mmHg) | motor (kw) | Rotating speed (r.p.m) | Water supply (L/min) | Suction caliber (ww) | Discharge diameter (ww) | |
maximum capacity Max. | The suction pressure is -0.093MPa (-700mmHg) | |||||||
| 2SK-0.4 | 0.4 | 0.25 | -0.096(-725) | 2.2 | 2840 | 3-5 | G1" | G1" |
| 2SK-0.8 | 0.8 | 0.5 | -0.096(-725) | 3 | 2880 | 5-8 | G1" | G1" |
| 2SK-1.5 | 1.5 | 0.9 | -0.097(-730) | 4 | 1440 | 10-15 | 40 | 40 |
| 2SK-3 | 3 | 2 | -0.098(-735) | 7.5 | 1440 | 15-20 | 40 | 40 |
| 2SK-6 | 6 | 4 | -0.098(-735) | 15 | 1460 | 25-35 | 50 | 50 |
| 2SK-12 | 12 | 8 | -0.098(-735) | 22 | 970 | 40-50 | 100 | 100 |
| 2SK-20 | 20 | 14 | -0.098(-735) | 37 | 740 | 60-80 | 125 | 125 |
| 2SK-30 | 30 | 20 | -0.098(-735) | 55 | 710 | 70-90 | 125 | 125 |
2SK-P1 series water ring vacuum pump-atmospheric injection unit main technical performance parameters
model | Pumping capacity (㎡／min) | Ultimate vacuum MPa(mmHg) | Motor Power (kw) | Rotating speed (r/min) | Water supply (L/min) | |
Suction pressure is 30 Torr (-730mmHg) | Suction pressure is 20 Torr (-740mmHg) | |||||
| 2SK-0.4P, | 0.28 | 0.24 | -0.099(-750) | 2.2 | 2840 | 3-5 |
| 2SK-0.8P, | 0.56 | 0.48 | -0.099(-750) | 3 | 2880 | 5-8 |
| 2SK-1.5P1 | 1.05 | 0.9 | -0.099(-750) | 4 | 1440 | 10~15 |
| 2SK-3P, | 2.1 | 1.8 | -0.099(-750) | 7.5 | 1440 | 15-20 |
| 2SK-6P, | 4.2 | 3.6 | -0.099(-750) | 15 | 1440 | 25-35 |
| 2SK-12P, | 8.4 | 7.2 | -0.099(-750) | 22 | 970 | 40~50 |
| 2SK-20P, | 14 | 12 | -0.099(-750) | 37 | 740 | 60-80 |
| 2SK-30P | 21 | 18 | -0.099(-750) | 55 | 740 | 70-90 |
