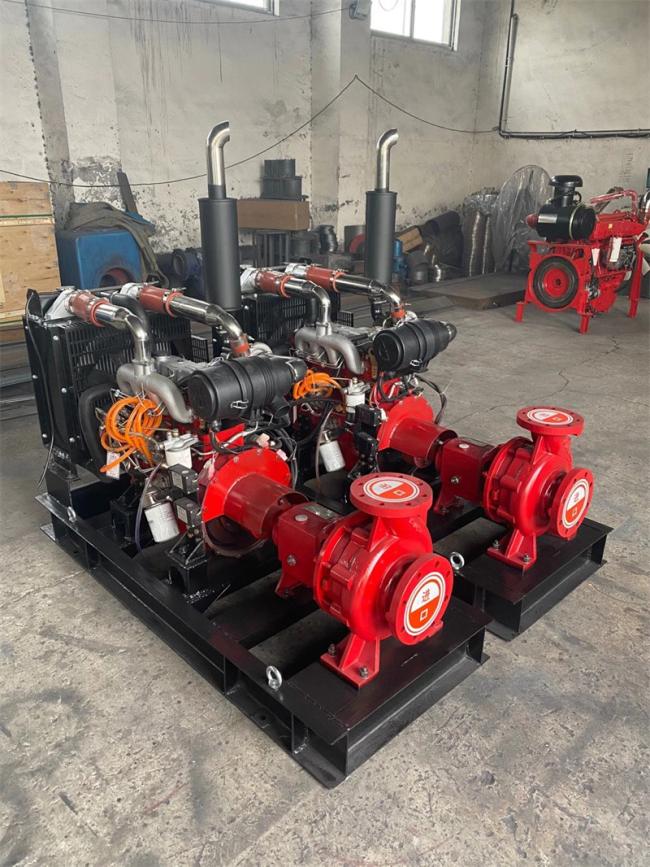

IS Clean Water Diesel Engine Pumps 3500 Rpm

product description

IS and IR type pumps are horizontal single-stage single-suction clean water centrifugal pumps, used to suck clean water and liquids with physical and chemical properties similar to water without solid particles. It is suitable for industry, agriculture and cities, drainage, fire water supply, etc. IS and IR type pumps are designed according to the performance and dimensions stipulated in the international standard ISO2858. Their technical standards are close to international standards and have reached the international advanced level. It is one of the energy-saving pump products promoted in my country. This pump has simple structure, reliable performance, small size, light weight, good anti-cavitation performance, low power consumption, and is easy to use and maintain. IS and IR type pumps have wide versatility, with a total of 140 specifications in the series, but only four types of shafts are used; shafts, bearings, shaft seals, impeller fasteners, etc. of the same specifications are all interchangeable: the suspensions of the full series of pumps are also interchangeable. There are only four kinds. The pump speed is divided into two types: 2900 and 1450 rpm.

The performance is as follows:

2900 rpm 1450 rpm

Flow rate: 240 m3/min, 400 m3/min,

Total lift: 125 meters 55 meters;

Rotation speed: 3500 rpm (when used in 60% wave modulation power supply, the impeller diameter is reduced)

Working temperature:80C

Allowable suction line pressure: 0.3MPa, pump operating pressure 1.6MPa.
