RPP Type All Plastic Water Jet Pump Vacuum Pump Unit 0.0985Mpa
RPP water jet pump vacuum unit-Vacuum unit

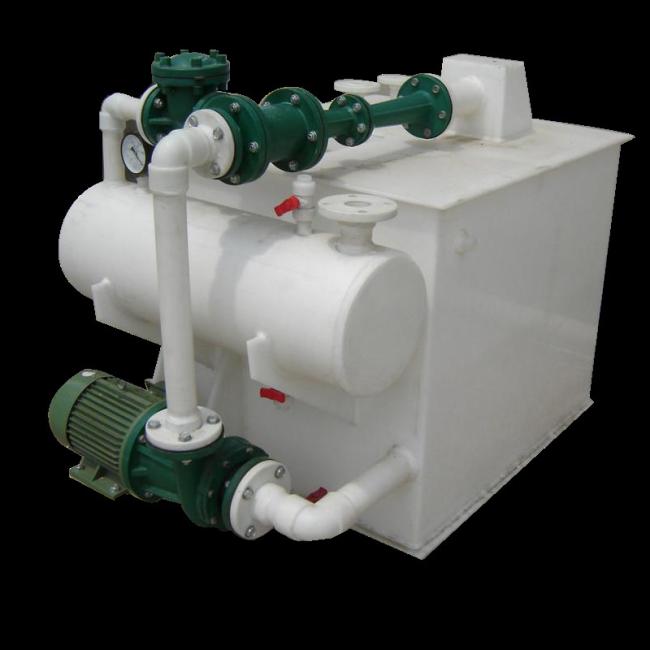

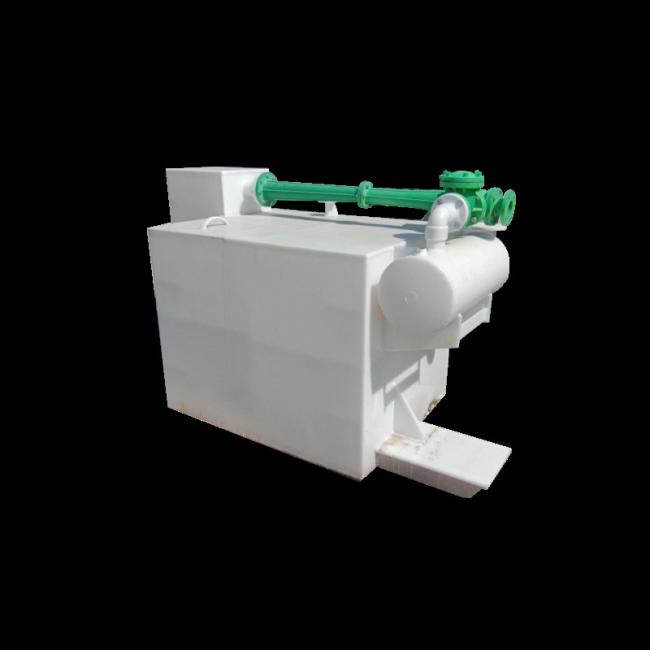

Overview of water jet pump unit The RPP type all-plastic water jet pump unit is made of reinforced polypropylene plastic for one-time injection molding. This product has high mechanical strength, strong corrosion resistance, smooth surface, simple structure, and small size. It has the longest service life among similar products at present. The largest amount, high vacuum degree and other advantages. Second, the use of water jet pump unit The RPP type all-plastic water jet pump unit can pump corrosive gases at a temperature of 150C, and can be used in series with steam jet pumps to achieve a higher vacuum degree. It is widely used in chemical, pharmaceutical, textile, food, brewing, metallurgy, environmental protection and other industries. Used in vacuum absorption, vacuum filtration, vacuum concentration, vacuum drying, vacuum transportation, vacuum deoxidation, vacuum oxygenation and other processes.
model |
ultimate vacuum Mpa |
Guaranteed vacuum Mpa |
Guaranteed vacuum m/h |
Supporting centrifugal pump power Kw |
Dimensions of horizontal unit length x width x height mm |
Remark |
| RPP-25-20 | -0.0985 | -0.0987 | 20 | 40FP(D)-18(1.5) | 800x600x800 |
Note: ultimate vacuum is based on the local Atmospheric pressure x present technology |
| RPP-32-40 | -0.0985 | -0.098 | 40 | 50FP(D)-22(2.2) | 800x700x800 | |
| RPP-40-60 | -0.098 | -0.097 | 60 | 50FP(D)-25(3) | 1500x900x1150 | |
| RPP-54-90 | -0.098 | -0.097 | 90 | 65FP(D)-28(4) | 1500x1000x1200 | |
| RPP-54-110 | -0.0985 | -0.0975 | 110 | 80FP(D)-30(5.5) | 1500x1000x1200 | |
| RPP-54-180 | -0.0993 | -0.098 | 180 | 80FP(D)-30(5.5) | 1800x1000x1250 | |
| RPP-54-220 | -0.0996 | -0.0981 | 220 | 100FP(D)-32(15) | 1850x1000x1300 | |
| RPP-65-280 | -0.0993 | -0.098 | 280 | 80FP(D)-32(7.5) | 1900x1000x1300 | |
| RPP-65-360 | -0.0995 | -0.098 | 360 | 100FP(D)-32(11-15) | 2000x1200x1300 | |
| RPP-80-500 | -0.0995 | -0.098 | 500 | 100FP(D)-32(15) | 2500x1200x1500 | |
|
steam jet pump |
-0.1 | -0.0996 |
ditto |
The soda and water are connected in series and matched with 180.280.360, the air consumption is 40kg/h, and the working air pressure is 0.3Mpa |
||
