704-24-28203 7042428203 704-24-28202 704-24-28201 For Komatsu PW200-1 PC200-3 WA700-3 EXCAVATORS Hydraulic Main Pump Gear pumps LOADER PUMP SWITCH PUMP Piston Pump PUMP ASSY Aftermarket Original
Price:
Negotiable price
MOQ:
1 PCS
Delivery Time:
5-8 Weekdays
Brand:
KOMATSU
Product Description
704-24-28203 7042428203 704-24-28202 704-24-28201 For Komatsu PW200-1 PC200-3 WA700-3 EXCAVATORS Hydraulic Main Pump Gear pumps LOADER PUMP SWITCH PUMP Piston Pump PUMP ASSY Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 704-24-28203 7042428203 704-24-28202 704-24-28201 For Komatsu PW200-1 PC200-3 WA700-3 EXCAVATORS Hydraulic Main Pump Gear pumps LOADER PUMP SWITCH PUMP Piston Pump PUMP ASSY Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: KOMATSU | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

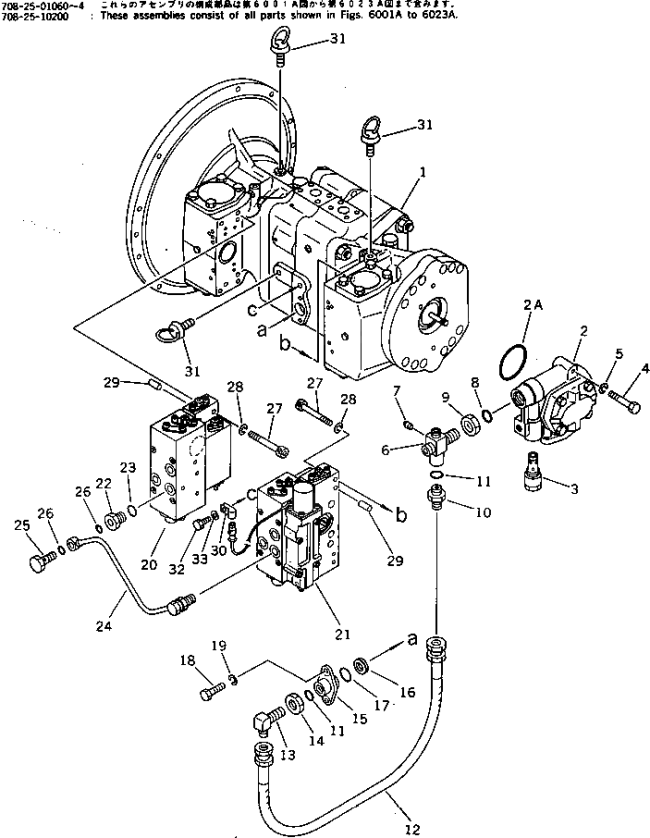

| Pos. | Part No | Qty | Parts name | Comments |
| 708-25-01084 | [1] | PUMP ASSY Komatsu China | ||
| analogs:["7082501080", "7082530200"] | ||||
| 708-25-01083 | [1] | PUMP ASSY Komatsu China | ||
| analogs:["7082501084", "7082501080", "7082530200"] | ||||
| 708-25-01082 | [1] | PUMP ASSY Komatsu China | ||
| analogs:["7082501084", "7082501080", "7082530200"] | ||||
| 708-25-01081 | [1] | PUMP ASSY Komatsu China | ||
| analogs:["7082501084", "7082501080", "7082530200"] | ||||
| 708-25-01080 | [1] | PUMP ASSY Komatsu China | ||
| analogs:["7082501084", "7082530200"] | ||||
| 1 | 708-25-01250 | [1] | PUMP SUB ASSY Komatsu China | |
| analogs:["7082511100"] | ||||
| 1 | 708-25-11101 | [1] | PUMP SUB ASSY Komatsu China | |
| analogs:["7082501250", "7082511100"] | ||||
| 2 | 704-24-28203 | [1] | PUMP ASSY Komatsu | 7.94 kg. |
| analogs:["7042428202", "7042428201"] | ||||
| 2 | 704-24-28202 | [1] | PUMP ASSY Komatsu | 7.94 kg. |
| analogs:["7042428203", "7042428201"] | ||||
| [-1] | (704-24-28203,704-28-02710) | |||
| 2 | 704-24-28201 | [1] | PUMP ASSY Komatsu | 7.94 kg. |
| analogs:["7042428203", "7042428202"] | ||||
| 2A. | 704-28-02710 | [1] | O-RING Komatsu | 0.002 kg. |
| 3 | 708-25-14902 | [1] | RELIEF VALVE ASSY Komatsu | 0.32 kg. |
| analogs:["7082514900"] | ||||
| 3 | 708-25-14900 | [1] | RELIEF VALVE ASSY Komatsu | 0.32 kg. |
| analogs:["7082514902"] | ||||
| 4 | 01010-31260 | [2] | BOLT Komatsu China | 0.069 kg. |
| analogs:["0101061260", "01010E1260"] | ||||
| 5 | 01643-31232 | [2] | WASHER Komatsu | 0.027 kg. |
| analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 6 | 708-25-19111 | [1] | JOINT Komatsu China | |
| 7 | 07042-20108 | [1] | PLUG Komatsu | 0.008 kg. |
| analogs:["0704230108"] | ||||
| 8 | 07002-02434 | [1] | O-RING Komatsu China | 0.01 kg. |
| analogs:["0700212434", "0700213434"] | ||||
| 9 | 07239-12410 | [1] | NUT Komatsu | 0.055 kg. |
| 10 | 07230-20422 | [1] | UNION Komatsu | 0.11 kg. |
| analogs:["10E6016141", "2036251220"] | ||||
| 10 | 07230-10422 | [1] | UNION Komatsu | 0.11 kg. |
| analogs:["0723020422", "10E6016141", "2036251220"] | ||||
| 11 | 07002-02034 | [2] | O-RING Komatsu China | 0.94 kg. |
| analogs:["0700002034", "0700212034", "0700012034"] | ||||
| 12 | 07102-20404 | [1] | HOSE Komatsu OEM | 0.86 kg. |
| analogs:["0710030404", "0710020404"] | ||||
| 13 | 07232-30422 | [1] | ELBOW Komatsu China | |
| analogs:["0723200422", "0723220422", "0723210422", "20R9101670"] | ||||
| 13 | 07231-20422 | [1] | ELBOW Komatsu China | |
| 14 | 07239-12009 | [1] | NUT Komatsu China | |
| analogs:["0723902009", "0723922009"] | ||||
| 15 | 708-25-19120 | [1] | FLANGE Komatsu China | |
| 16 | 720-68-15240 | [1] | FILTER Komatsu | 0.003 kg. |
| 17 | 07000-02021 | [1] | O-RING Komatsu China | 0.01 kg. |
| analogs:["0700012021"] | ||||
| 18 | 01010-30820 | [2] | BOLT Komatsu | 0.013 kg. |
| analogs:["01010E0820"] | ||||
| 19 | 01602-20825 | [2] | WASHER,SPRING Komatsu | 0.004 kg. |
| analogs:["0160200825", "0231011020", "6124613790"] | ||||
| 20 | 708-25-07131 | [1] | SERVO VALVE ASSY,FRONT Komatsu China | |
| analogs:["7082535600"] | ||||
| 20 | 708-25-07130 | [1] | SERVO VALVE ASSY,FRONT Komatsu China | |
| analogs:["7082535600"] | ||||
| 20 | 708-25-35600 | [1] | SERVO VALVE ASSY,FRONT Komatsu China | |
| 21 | 708-25-07232 | [1] | SERVO VALVE ASSY,REAR Komatsu China | |
| analogs:["7082507231", "7082507230", "7082536600"] | ||||
| 21 | 708-25-07231 | [1] | SERVO VALVE ASSY,REAR Komatsu China | |
| analogs:["7082507230", "7082507232", "7082536600"] | ||||
| 21 | 708-25-07230 | [1] | SERVO VALVE ASSY,REAR Komatsu China | |
| analogs:["7082507231", "7082507232", "7082536600"] | ||||
| 21 | 708-25-36600 | [1] | SERVO VALVE ASSY,REAR Komatsu China | |
| analogs:["7082507231", "7082507230", "7082507232"] | ||||
| 22 | 706-46-53260 | [2] | PLUG Komatsu | 0.03 kg. |
| 23 | 07002-01423 | [2] | O-RING Komatsu China | 0.001 kg. |
| analogs:["0700211423"] | ||||
| 24 | 708-25-19140 | [1] | TUBE Komatsu | 0.15 kg. |
| 25 | 706-46-53180 | [2] | BOLT,JOINT Komatsu | 0.028 kg. |
| 26 | 07000-02012 | [4] | O-RING Komatsu China | 0.001 kg. |
| analogs:["0700012012", "7082E11790"] | ||||
| 27 | 708-25-19130 | [8] | BOLT Komatsu China | |
| 28 | 01602-00825 | [8] | WASHER,SPRING Komatsu | 0.004 kg. |
| analogs:["0160220825", "0231011020", "6124613790"] | ||||
| 29 | 04020-00616 | [4] | PIN,DOWEL Komatsu | 0.004 kg. |
| 30 | 08036-21814 | [1] | CLIP Komatsu | 0.022 kg. |
| 31 | 04530-01018 | [3] | BOLT,EYE Komatsu | 0.079 kg. |
| analogs:["0453011018"] | ||||
| 32 | 01010-31016 | [1] | BOLT Komatsu | 0.022 kg. |
| analogs:["01010E1016"] | ||||
| 33 | 01643-31032 | [1] | WASHER Komatsu | 0.054 kg. |
| analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] |
