153-9624 0R1062 1539624 CA1539624 For TQCAT 834G 834H 836G 836H 988G 988H Wheel Loader Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly Aftermarket Original
153-9624 0R1062 1539624 CA1539624 For TQTQCAT 834G 834H 836G 836H 988G 988H Wheel Loader Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 153-9624 0R1062 1539624 CA1539624 For TQTQCAT 834G 834H 836G 836H 988G 988H Wheel Loader Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQTQCAT | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

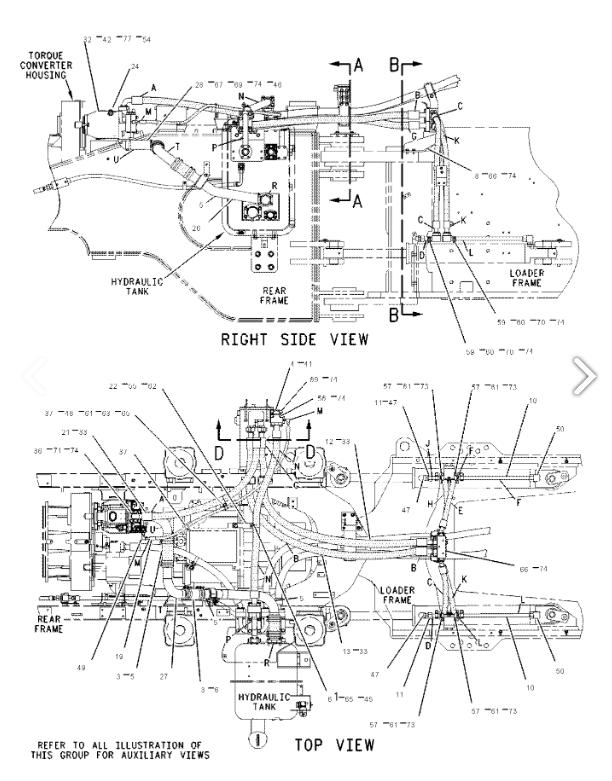

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6V-0852 | [1] | CAP-DUST | |
| 2 | 6V-3965 | [1] | FITTING (QUICK DISCONNECT) | |
| 3 | 8T-4985 | [12] | CLAMP-HOSE | |
| 4 | 171-1470 | [1] | ELBOW | |
| 5 | 131-9889 | [1] | HOSE | |
| 6 | 135-5050 | [2] | HOSE | |
| 7 | 153-0148 | [1] | BLOCK-MANIFOLD | |
| 8 | 153-0149 | [1] | BRACKET | |
| 9 | 192-3234 I | [2] | HOSE AS | |
| 10 | 153-0155 | [2] | TUBE AS | |
| 11 | 153-0156 | [2] | TUBE AS | |
| 12 | 153-6396 I | [1] | HOSE AS | |
| 13 | 153-6399 I | [1] | HOSE AS | |
| 14 | 153-6408 | [1] | BRACKET AS | |
| 8T-3490 M | [2] | NUT-WELD (M10X1.5-THD) | ||
| 8T-3597 M | [3] | NUT-WELD (M12X1.75-THD) | ||
| 8T-3612 M | [2] | NUT-WELD (M8X1.25-THD) | ||
| 9R-2672 M | [2] | BOSS-THREADED (M10X1.5X120-MM) | ||
| 15 | 153-6417 | [1] | BLOCK | |
| 16 | 161-6608 | [1] | TUBE AS | |
| 17 | 161-6903 | [1] | PLATE | |
| 18 | 162-9245 | [1] | BRACKET AS | |
| 8T-3490 M | [1] | NUT-WELD (M10X1.5-THD) | ||
| 19 | 163-4501 I | [1] | HOSE AS | |
| 20 | 192-2174 I | [1] | HOSE AS | |
| 21 | 163-4503 I | [1] | HOSE AS | |
| 22 | 163-4504 | [1] | ANGLE AS | |
| 8T-3490 M | [1] | NUT-WELD (M10X1.5-THD) | ||
| 23 | 163-4507 | [2] | BRACKET AS | |
| (EACH INCLUDES) | ||||
| 8T-3490 M | [2] | NUT-WELD (M10X1.5-THD) | ||
| 24 | 148-8327 | [1] | CONNECTOR AS | |
| 6V-8637 | CONNECTOR | |||
| 3D-2824 | [1] | SEAL-O-RING | ||
| 6V-9746 | [1] | SEAL-O-RING | ||
| 25 | 164-0719 | [1] | TUBE AS | |
| 26 | 164-0720 | [1] | TUBE | |
| 27 | 164-0721 | [1] | TUBE | |
| 28 | 164-0722 | [1] | TUBE AS | |
| 29 | 106-5125 | [1] | CLIP (SLOT) | |
| 30 | 106-5126 | [1] | CLIP (TAB) | |
| 31 | 192-3233 I | [2] | HOSE AS | |
| 32 | 153-9624 Y | [1] | PUMP GP-PISTON (STEERING) | |
| 33 | 1P-3704 | [6] | SEAL-RECTANGULAR | |
| 34 | 1P-3706 | [1] | SEAL-RECTANGULAR | |
| 35 | 1P-4579 | [4] | FLANGE-HALF | |
| 36 | 1P-5767 | [12] | FLANGE-HALF | |
| 37 | 1S-0994 | [2] | CLIP (LOOP) | |
| 38 | 5P-7470 | [2] | CLIP (SLOT) | |
| 39 | 5P-7471 | [2] | CLIP (TAB) | |
| 40 | 4J-0520 | [8] | SEAL-O-RING | |
| 41 | 4J-0524 | [4] | SEAL-O-RING | |
| 42 | 5F-3106 | [1] | SEAL-O-RING | |
| 43 | 5P-8182 | [2] | GROMMET (46-MM ID) | |
| 44 | 1H-7339 | [1] | SEAL-O-RING | |
| 45 | 6V-2235 | [1] | CLIP | |
| 46 | 6H-3977 | [1] | SEAL-O-RING | |
| 47 | 148-8335 | [2] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-8635 | [1] | CONNECTOR | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 48 | 7D-1553 | [1] | CLIP | |
| 49 | 148-8378 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 3J-1907 | [1] | SEAL-O-RING | ||
| 6V-8397 | [1] | SEAL-O-RING | ||
| 6V-8724 | [1] | ELBOW | ||
| 50 | 155-7328 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 5P-7701 | [1] | SEAL-O-RING | ||
| 6V-9008 | [1] | ELBOW | ||
| 8C-3093 | [1] | SEAL-O-RING | ||
| 52 | 7D-7233 | [4] | CLIP (LOOP) | |
| 53 | 3J-1907 | [2] | SEAL-O-RING | |
| 54 | 9X-8257 | [2] | WASHER (17.5X30X3.5-MM THK) | |
| 55 | 7X-0343 | [1] | BOLT (5/8-11X1.25-IN) | |
| 56 | 7X-2549 M | [2] | BOLT (M12X1.75X100-MM) | |
| 57 | 8C-3206 | [16] | FLANGE-HALF | |
| 59 | 8T-1889 | [4] | CLIP (SLOT) | |
| 60 | 8T-1890 | [4] | CLIP (TAB) | |
| 61 | 8T-4121 | [47] | WASHER-HARD (11X21X2.5-MM THK) | |
| 62 | 8T-4122 | [1] | WASHER-HARD (17X32X3.5-MM THK) | |
| 63 | 8T-4133 M | [1] | NUT (M10X1.5-THD) | |
| 64 | 8T-4136 M | [10] | BOLT (M10X1.5X25-MM) | |
| 65 | 8T-4137 M | [2] | BOLT (M10X1.5X20-MM) | |
| 66 | 8T-4139 M | [14] | BOLT (M12X1.75X30-MM) | |
| 67 | 8T-4176 M | [6] | BOLT (M12X1.75X90-MM) | |
| 68 | 8T-4183 M | [4] | BOLT (M12X1.75X40-MM) | |
| 69 | 8T-4184 M | [12] | BOLT (M12X1.75X45-MM) | |
| 70 | 8T-4192 M | [6] | BOLT (M12X1.75X25-MM) | |
| 71 | 8T-4194 M | [24] | BOLT (M12X1.75X50-MM) | |
| 72 | 8T-4195 M | [2] | BOLT (M10X1.5X30-MM) | |
| 73 | 8T-4196 M | [32] | BOLT (M10X1.5X35-MM) | |
| 74 | 8T-4223 | [71] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 75 | 8T-5041 M | [3] | BOLT (M12X1.75X120-MM) | |
| 76 | 6V-0484 | [1] | ELBOW | |
| 77 | 8T-7338 M | [2] | BOLT (M16X2X45-MM) | |
| 78 | 9X-7456 | [1] | GROMMET |
