216-8978 CA2168978 2168978 10R3589 For TQCAT 834H 988G 988H WHEEL LOADER Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original
216-8978 CA2168978 2168978 10R3589 For TQTQCAT 834H 988G 988H WHEEL LOADER Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 216-8978 CA2168978 2168978 10R3589 For TQTQCAT 834H 988G 988H WHEEL LOADER Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQTQCAT | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

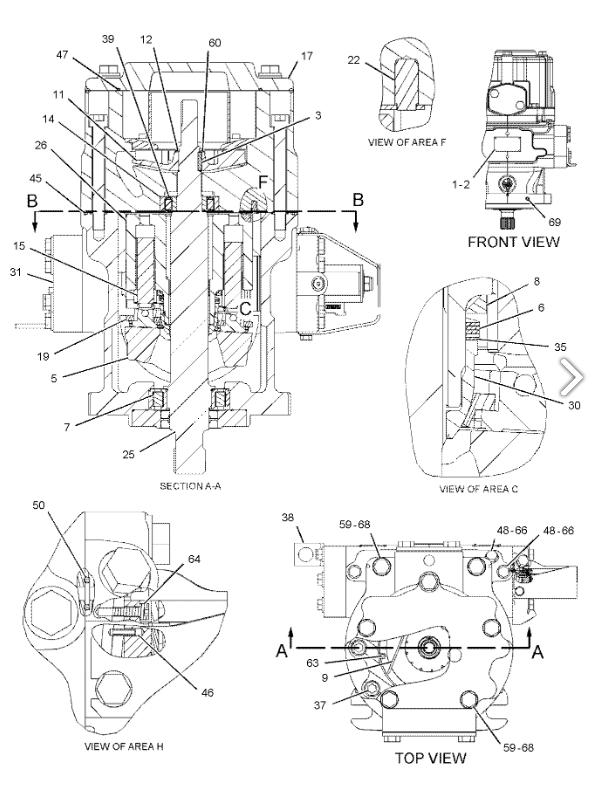

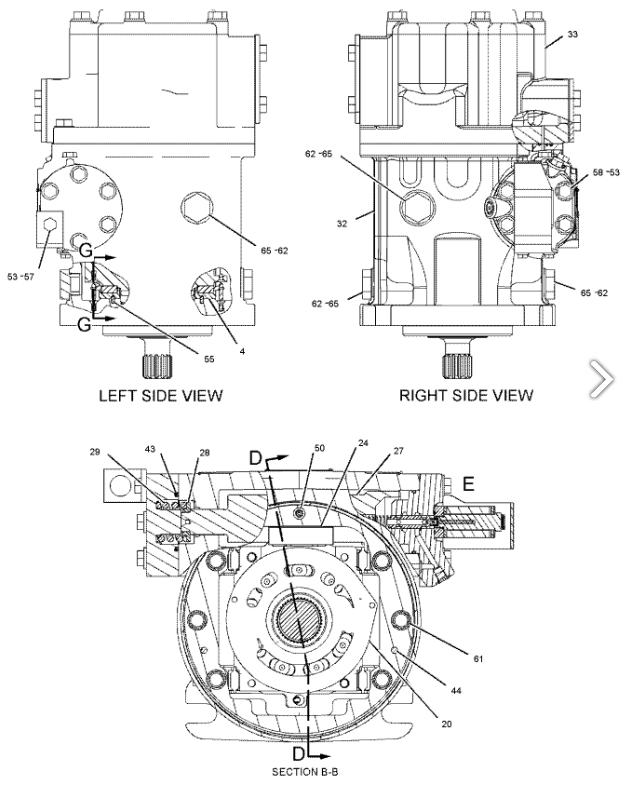

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 4B-4158 | [4] | SCREW-DRIVE (NO 4X0.25-IN) | |
| 2 | 8J-0101 | [1] | PLATE-NOTICE (HYDRAULIC OIL FILL) | |
| 3 | 006-0136 | [1] | KEY (SQUARE) | |
| 4 | 110-2973 | [2] | BEARING-SPECIAL ROLLER | |
| 5 | 110-3971 | [1] | SWASHPLATE | |
| 6 | 110-3978 | [1] | SPRING-WAVE | |
| 7 | 118-5805 | [1] | BEARING-SPECIAL RACE | |
| 8 | 137-5646 | [1] | SPACER (70.4X87.5X7.6-MM THK) | |
| 9 | 143-2006 | [1] | COVER AS | |
| 10 | 146-3728 | [1] | WASHER-SPRING | |
| 11 | 146-8990 | [1] | IMPELLER | |
| 12 | 146-8991 | [1] | SPACER (29X38X1.57-MM THK) | |
| 13 | 148-2350 | [1] | COIL AS | |
| 14 | 148-3548 | [1] | BEARING-SPECIAL RACE | |
| 15 | 150-4355 | [9] | PISTON AS | |
| 16 | 155-2251 | [1] | PLATE | |
| 17 | 155-4326 | [1] | COVER | |
| 18 | 158-3504 | [1] | SPOOL-CONTROL | |
| 19 | 159-7320 | [1] | PLATE-RETAINER | |
| 20 | 164-3256 | [1] | PLATE-PORT | |
| 21 | 165-6062 | [2] | LINK (TIMING) | |
| 22 | 175-7887 | [2] | DOWEL | |
| 23 | 179-2006 | [1] | RETAINER AS | |
| 6V-3382 | [2] | SEAL-LIP TYPE | ||
| 124-1555 | [1] | PLUG | ||
| 24 | 184-3635 | [1] | SLIDE-ACTUATOR | |
| 25 | 185-3889 | [1] | SHAFT | |
| 26 | 187-9116 | [1] | BARREL AS-PUMP | |
| 27 | 213-3221 | [1] | ACTUATOR | |
| 28 | 264-0010 | [1] | RETAINER | |
| 29 | 214-2445 | [1] | SPRING | |
| 30 | 214-6489 | [1] | BALL (HOLD DOWN) | |
| 31 | 269-5755 | [1] | COVER | |
| 32 | 250-9329 | [1] | BODY AS | |
| 124-1555 | [1] | PLUG | ||
| 33 | 252-4537 | [1] | HEAD-PUMP | |
| 34 | 263-7732 | [1] | HOUSING AS | |
| 124-1555 | [1] | PLUG | ||
| 35 | 142-0149 | [1] | SPACER (70.75X80X1.07-MM THK) | |
| 36 | 030-4605 | [1] | SEAL-O-RING | |
| 37 | 096-0008 M | [6] | BOLT-SOCKET HEAD (M16X2X140-MM) | |
| 38 | 110-5281 | [1] | ANGLE | |
| 39 | 143-7319 | [1] | RACE-ROLLER BEARING | |
| 40 | 154-4133 | [1] | CARTRIDGE AS | |
| 41 | 177-1403 | [1] | SPRING | |
| 42 | 177-1405 | [1] | SPRING | |
| 43 | 1P-3709 | [1] | SEAL-RECTANGULAR | |
| 44 | 2A-3630 | [2] | PIN | |
| 45 | 2R-0239 | [1] | SEAL-O-RING | |
| 46 | 3C-8388 | [2] | PIN-ROLL | |
| 47 | 3J-0634 | [1] | SEAL-O-RING | |
| 48 | 3J-1907 | [2] | SEAL-O-RING | |
| 49 | 3J-7354 | [1] | SEAL-O-RING | |
| 50 | 4J-5309 | [3] | SEAL-O-RING | |
| 51 | 5A-3604 M | [3] | BOLT-SOCKET HEAD (M8X1.25X25-MM) | |
| 52 | 5H-8848 | [1] | SEAL-O-RING | |
| 53 | 5P-8245 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 54 | 6F-5559 | [1] | SEAL-O-RING | |
| 55 | 6F-7061 | [2] | DOWEL | |
| 56 | 6S-3002 | [1] | SEAL-O-RING | |
| 57 | 6V-3823 M | [6] | BOLT (M12X1.75X60-MM) | |
| 58 | 6V-5684 M | [6] | BOLT (M12X1.75X45-MM) | |
| 59 | 6V-5686 M | [7] | BOLT (M16X2X50-MM) | |
| 60 | 6V-8243 | [1] | RING-RETAINING | |
| 61 | 7F-8607 | [6] | SEAL-O-RING | |
| 62 | 7M-8485 | [4] | SEAL-O-RING | |
| 63 | 8T-0267 M | [5] | BOLT-SOCKET HEAD (M6X1X12-MM) | |
| 64 | 162-2165 M | [4] | BOLT-SOCKET HEAD (M4X0.7X16-MM) | |
| 65 | 9S-4181 | [4] | PLUG (1-5/16-12-THD) | |
| 66 | 9S-4191 | [2] | PLUG (9/16-18-THD) | |
| 67 | 9S-8002 | [1] | PLUG (7/16-20-THD) | |
| 68 | 9X-8268 | [7] | WASHER (17.5X30X3.5-MM THK) | |
| 69 | 3D-4603 | [1] | PLUG-PIPE | |
| AVAILABLE REPAIR KIT(S): | ||||
| 185-5352 | [1] | KIT-SEAL | ||
| INCLUDES PIN, SEAL-0RINGS, RING-BACKUP, CAP-DUST, SEAL-LIP, & RING-RETAINING | ||||
| KIT-SPACER | ||||
| INCLUDES THREE SPACERS | ||||
| 227-1069 | KIT-SPRING |
