550-4341 5504341 CA5504341 For TQCAT 336 340 345 GC EXCAVATOR PARTS K7V180 Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original
550-4341 5504341 CA5504341 For TQTQCAT 336 340 345 GC EXCAVATOR PARTS K7V180 Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 550-4341 5504341 CA5504341 For TQTQCAT 336 340 345 GC EXCAVATOR PARTS K7V180 Hydraulic Pump Piston Pump MAIN PUMP Pump Assy Pump Assembly PUMP GP-PISTON Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQTQCAT | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

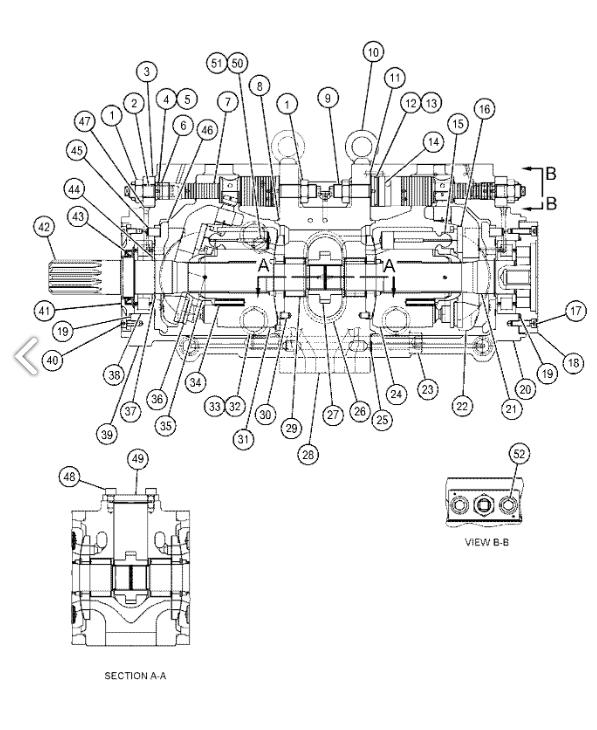

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4131 M | [4] | NUT (M20X2.5-THD) | |
| 2 | 551-1107 | [2] | SETSCREW | |
| 3 | 549-4309 | [2] | COVER | |
| 4 | 7I-8171 | [2] | RING-BACKUP | |
| 5 | 095-1522 | [2] | SEAL-O-RING | |
| 6 | 549-4310 | [2] | STOPPER | |
| 7 | 549-4327 | [2] | PISTON AS | |
| 8 | 549-4308 | [2] | SEAL-O-RING | |
| 9 | 242-6919 M | [2] | SETSCREW (M20X2.5X56-MM) | |
| 10 | 551-1108 | [2] | BOLT-EYE | |
| 11 | 347-6530 | [8] | SEAL-RECTANGULAR | |
| 12 | 7I-8172 | [2] | RING-BACKUP | |
| 13 | 095-1701 | [2] | SEAL-O-RING | |
| 14 | 549-4311 | [2] | STOPPER | |
| 15 | 549-4331 | [2] | PISTON AS | |
| 16 | 549-4317 | [2] | PLATE | |
| 17 | 6V-5192 M | [4] | BOLT-SOCKET HEAD (M8X1.25X30-MM) | |
| 18 | 551-1111 | [1] | FLANGE | |
| 19 | 095-1717 | [2] | SEAL-O-RING | |
| 20 | 551-1102 | [1] | BODY AS-REAR | |
| 21 | 551-1114 | [1] | SHAFT-REAR | |
| 22 | 549-4329 | [2] | SWASHPLATE AS | |
| 23 | 551-1110 | [4] | BOLT-SOCKET HEAD | |
| 24 | 549-4330 | [1] | BARREL AS | |
| 25 | 559-3652 | [14] | SEAL-SQUARE | |
| 26 | 095-1715 | [1] | SEAL-O-RING | |
| 27 | 551-1113 | [1] | GEAR | |
| 28 | 551-1101 | [1] | BLOCK AS | |
| 29 | 549-4321 | [2] | BEARING | |
| 30 | 549-4306 | [4] | PIN | |
| 31 | 551-1117 | [1] | BARREL AS | |
| 32 | 360-3695 | [4] | PLUG | |
| 33 | 238-5082 | [4] | SEAL-O-RING | |
| 34 | 200-3280 | [18] | SPRING | |
| 35 | 549-4319 | [2] | BUSHING | |
| 36 | 549-4320 | [2] | PLATE | |
| 37 | 8T-4241 | [2] | RING-RETAINING | |
| 38 | 549-4322 | [2] | BEARING | |
| 39 | 551-1103 | [1] | BODY AS-FRONT | |
| 40 | 6V-8202 M | [4] | BOLT-SOCKET HEAD (M8X1.25X16-MM) | |
| 41 | 551-1112 | [1] | COVER-FRONT | |
| 42 | 551-1115 | [1] | SHAFT-FRONT | |
| 43 | 551-1109 | [1] | SEAL-LIP TYPE | |
| 44 | 247-8719 | [2] | SPACER (50X64X3-MM THK) | |
| 45 | 247-8786 | [2] | DOWEL | |
| 46 | 549-4316 | [2] | SUPPORT | |
| 47 | 371-7201 | [16] | PLUG | |
| 48 | 6V-3938 M | [4] | BOLT (M10X1.5X20-MM) | |
| 49 | 516-4306 | [1] | COVER | |
| 50 | 110-5525 | [1] | PLUG | |
| 51 | 382-4825 | [1] | SEAL-O-RING | |
| 52 | 184-1836 M | [4] | BOLT (M18X2.5X45-MM) |

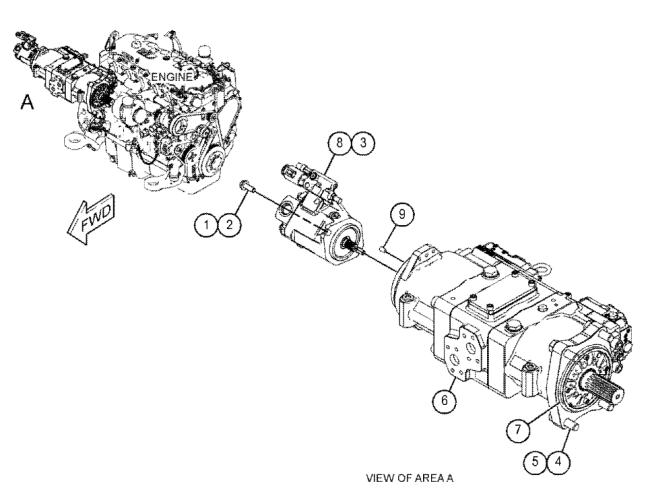

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4223 | [2] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 2 | 8T-4956 M | [2] | BOLT (M12X1.75X35-MM) | |
| 3 | 236-6919 | [1] | SEAL-O-RING | |
| 4 | 447-1720 M | [4] | BOLT (M20X2.5X70-MM) | |
| 5 | 451-2176 | [4] | WASHER-HARD (22X35X3.5-MM THK) | |
| 6 | 550-4341 Y | [1] | PUMP GP-MAIN HYDRAULIC | |
| 7 | 511-8604 | [1] | SEAL-O-RING | |
| 8 | 524-0924 Y | [1] | PUMP GP-PISTON | |
| 9 | 2B-7556 | [2] | CORK |
