4635645 YA00003076 For HITACHI EX1200-6 ZX650LC-3 ZX670LCH-3 ZX850-3 ZX870H-3 Excavator Parts K3V280 Hydraulic Piston Pump Hydraulic Pump MAIN PUMP PUMP DEVICE PUMP ASSY Aftermarket Original
4635645 For HITACHI EX1200-6 ZX650LC-3 ZX670LCH-3 ZX850-3 ZX870H-3 Excavator Parts K3V280 Hydraulic Piston Pump Hydraulic Pump MAIN PUMP PUMP DEVICE PUMP ASSY Pump Assembly Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 4635645 For HITACHI EX1200-6 ZX650LC-3 ZX670LCH-3 ZX850-3 ZX870H-3 Excavator Parts K3V280 Hydraulic Piston Pump Hydraulic Pump MAIN PUMP PUMP DEVICE PUMP ASSY Pump Assembly Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: HITACHI | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

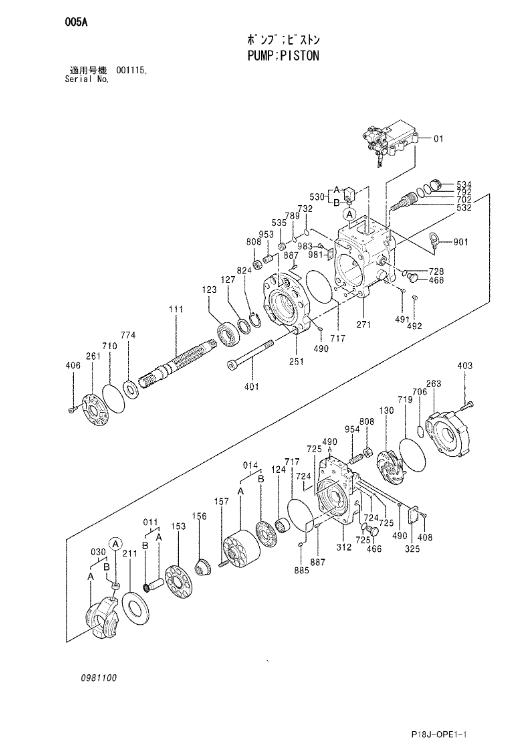

| Pos. | Part No | Qty | Parts name | Comments |
| 4635645 | [1] | PUMP;PISTON | This PART NO. consists of all parts shown in PUMP;UNIT and PUMP;REGULATOR. | |
| 1 | 4661507 | [1] | PUMP;REGULATOR | |
| 11 | 0718001 | [1] | PISTON ASSY | |
| 011A. | +++++++ | [9] | PISTON | |
| 011B. | +++++++ | [9] | SHOE | |
| 14 | 0703002 | [1] | CYL. ASSY | |
| 014A. | +++++++ | [1] | BLOCK;CYL. | |
| 014B. | +++++++ | [1] | PLATE;VALVE | |
| 30 | 0716801 | [1] | PLATE ASSY | |
| 030A. | +++++++ | [1] | PLATE | |
| 030B. | +++++++ | [1] | BUSHING | |
| 111 | 0682301 | [1] | SHAFT;DRIVE | |
| 123 | 0682302 | [1] | BRG.;ROL. | |
| 124 | 0682303 | [1] | BRG.;NEEDLE | |
| 127 | 0339809 | [1] | SPACER | |
| 130 | 0682304 | [1] | BOOSTER | |
| 153 | 0718002 | [1] | RETAINER | |
| 156 | 0828401 | [1] | BUSHING | |
| 157 | 0682307 | [9] | SPRING | |
| 211 | 0682309 | [1] | PLATE | |
| 251 | 0981101 | [1] | SUPPORT | |
| 261 | 0682311 | [1] | COVER | |
| 263 | 0981102 | [1] | COVER | |
| 271 | 0981103 | [1] | CASING | |
| 312 | 0682314 | [1] | COVER | |
| 325 | 0682315 | [1] | COVER | |
| 401 | 0682316 | [4] | BOLT;SOCKET | |
| 403 | 0111530 | [6] | BOLT;SOCKET | |
| 406 | M340820 | [4] | BOLT;SOCKET | |
| 408 | 0102411 | [3] | BOLT;SOCKET | |
| 466 | 0236014 | [2] | PLUG | |
| 468 | 0175233 | [3] | PLUG | |
| 490 | 0263019 | [27] | PLUG | |
| 491 | 0451027 | [2] | SCREW | |
| 492 | 0451028 | [2] | PLUG | |
| 530 | 0800706 | [1] | PIN ASSY | |
| 530A. | +++++++ | [1] | PIN | |
| 530B. | +++++++ | [1] | PIN | |
| 532 | 0800707 | [1] | PISTON;SERVO | |
| 534 | 0682319 | [1] | STOPPER | |
| 535 | 0682320 | [1] | STOPPER | |
| 702 | 4292386 | [1] | O-RING | |
| 706 | 0443413 | [1] | O-RING | |
| 710 | 0682321 | [1] | O-RING | |
| 717 | 0682322 | [2] | O-RING | |
| 719 | 0682323 | [1] | O-RING | |
| 724 | 0443801 | [10] | O-RING | |
| 725 | 4297379 | [4] | O-RING | |
| 728 | 0443408 | [3] | O-RING | |
| 732 | 0682324 | [1] | O-RING | |
| 774 | 0682325 | [1] | SEAL;OIL | |
| 789 | 0682326 | [1] | RING;BACK-UP | |
| 792 | 0682327 | [1] | RING;BACK-UP | |
| 808 | 0451038 | [2] | NUT | |
| 824 | 960323 | [1] | RING;RETAINING | |
| 885 | 0313404 | [1] | PIN | |
| 887 | 4144353 | [2] | PIN;SPRING | |
| 901 | 0134458 | [2] | BOLT;EYE | |
| 953 | 0339847 | [1] | SCREW | |
| 954 | 0682328 | [1] | SCREW;SET | |
| 981 | +++++++ | [1] | PLATE | |
| 983 | 0625509 | [2] | PIN |

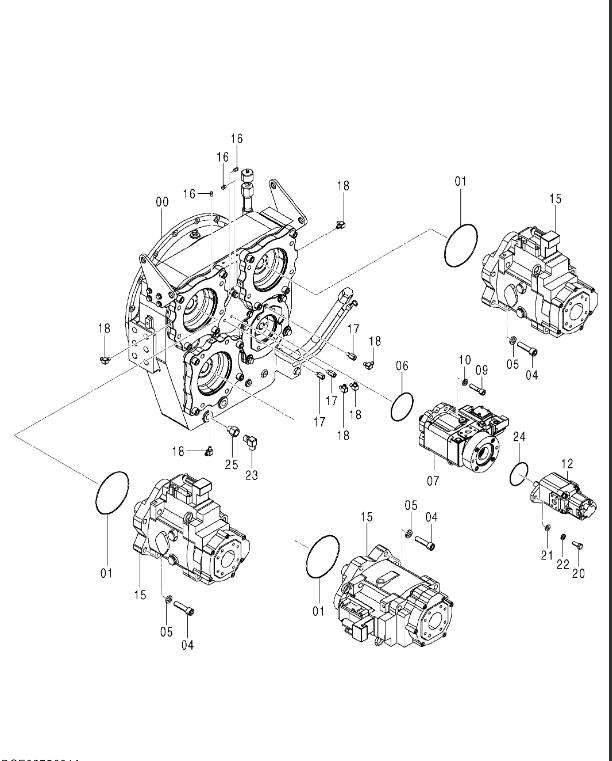

| Pos. | Part No | Qty | Parts name | Comments |
| 9275691 | [1] | PUMP DEVICE | ||
| 0 | 9272551 | [1] | T.MISSION (PUMP) | |
| 1 | 4445928 | [3] | O-RING | |
| 4 | M342080 | [12] | BOLT;SOCKET | |
| 5 | A590920 | [12] | WASHER;SPRING | |
| 6 | 4153552 | [1] | O-RING | |
| 7 | 4667614 | [1] | PUMP;PISTON | |
| 9 | M341665 | [4] | BOLT;SOCKET | |
| 10 | A590916 | [4] | WASHER;SPRING | |
| 12 | 4482892 | [1] | PUMP;GEAR | |
| 15 | 4635645 | [3] | PUMP;PISTON | I YA00003063 |
| 15 | YA00003063 | [3] | PUMP;PISTON | I YA00003076 |
| 15 | YA00003076 | [3] | PUMP;PISTON | |
| 16 | 94-2022 | [3] | PLUG | |
| 17 | 4085073 | [3] | ADAPTER | |
| 18 | 4097666 | [6] | ELBOW | |
| 20 | J901435 | [2] | BOLT | |
| 21 | A590114 | [2] | WASHER;PLANE | |
| 22 | A590914 | [2] | WASHER;SPRING | |
| 23 | 94-1404 | [1] | ELBOW;S | |
| 24 | 4153547 | [1] | O-RING | |
| 25 | 4317633 | [1] | ADAPTER |
