706-7K-01120 7067K01120 For KOMATSU PC2000-8 EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
Price:
Negotiable price
MOQ:
1 PCS
Delivery Time:
5-8 Weekdays
Brand:
TQ
Product Description
706-7K-01120 7067K01120 For KOMATSU PC2000-8 EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 706-7K-01120 7067K01120 For KOMATSU PC2000-8 EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |
| 706-7K-01120 | [1] | MOTOR ASSY Komatsu China | ||
| [-1] | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-03A0. | |||
| 706-7K-03110 | [1] | MOTOR SUB ASSY Komatsu China | ||
| 1 | 706-7K-41610 | [1] | SHAFT Komatsu | 8.062 kg. |
| 2 | 706-77-43880 | [1] | BEARING Komatsu | 5.5 kg. |
| analogs:["7067743890"] | ||||
| 3 | 706-7K-41810 | [1] | SPACER Komatsu | 0.8 kg. |
| 4 | 706-77-42051 | [2] | SPRING Komatsu | 0.14 kg. |
| 5 | 706-77-42041 | [1] | SEAT Komatsu | 0.1 kg. |
| 6 | 706-77-42890 | [1] | BEARING Komatsu | 1.185 kg. |
| 7 | 706-77-05010 | [1] | SPACER KIT Komatsu | 0.172 kg. |
| 8 | 04064-06525 | [1] | RING,SNAP Komatsu China | 0.021 kg. |
| 9 | 706-8J-41420 | [1] | SEAL,OIL Komatsu | 0.662 kg. |
| 10 | 706-7K-41920 | [1] | SPACER Komatsu | 0.04 kg. |
| 11 | 04065-07525 | [1] | RING Komatsu | 0.021 kg. |
| 12 | 706-7K-41210 | [1] | BLOCK,CYLINDER Komatsu | 5.2 kg. |
| 13 | 706-7K-41710 | [1] | PLATE,VALVE Komatsu | 0.9 kg. |
| 14 | 708-18-13230 | [1] | PIN Komatsu | 0.01 kg. |
| 15 | 706-7K-41120 | [1] | SHAFT,CENTER Komatsu | 0.62 kg. |
| 16 | 706-77-42130 | [1] | RING,CENTER Komatsu | 0.1 kg. |
| 17 | 706-7K-41140 | [1] | SPRING Komatsu | 0.21 kg. |
| 706-7K-05010 | [1] | RETAINER KIT Komatsu | 0.45 kg. | |
| 20 | 706-7K-41160 | [7] | PISTON SUB ASSY Komatsu | 6.78 kg. |
| 21 | 706-7K-91340 | [5] | PLATE Komatsu | 1 kg. |
| 22 | 706-7K-91350 | [4] | DISC Komatsu | 0.24 kg. |
| 23 | 706-7K-91111 | [1] | PISTON,BRAKE Komatsu | 3.99 kg. |
| 24 | 07000-B5230 | [1] | O-RING Komatsu | 0.033 kg. |
| 25 | 706-86-90290 | [1] | O-RING Komatsu | 0.038 kg. |
| 26 | 706-7K-91360 | [6] | SPRING Komatsu | 0.17 kg |

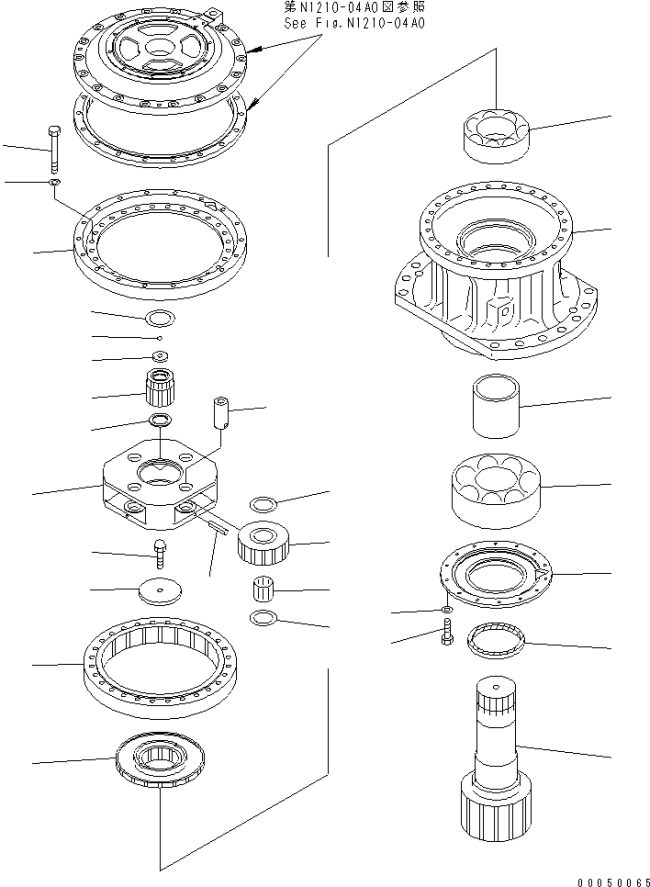

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 209-26-71212 | [1] | CASE Komatsu China | |
| 2 | 06300-23130 | [1] | BEARING Komatsu | 15.952 kg. |
| 3 | 209-26-71360 | [1] | SPACER Komatsu China | |
| 4 | 209-26-71341 | [1] | BEARING Komatsu | 64.3 kg. |
| 5 | 209-26-71230 | [1] | COVER Komatsu | 12.13 kg. |
| 6 | 01010-81030 | [14] | BOLT Komatsu OEM | 0.03 kg. |
| analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 7 | 01643-31032 | [14] | WASHER Komatsu | 0.054 kg. |
| analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 8 | 209-26-71332 | [1] | OIL SEAL Komatsu | 0.5 kg. |
| analogs:["2092671331"] | ||||
| 9 | 21T-26-67110 | [1] | SHAFT Komatsu China | |
| 10 | 209-26-71240 | [1] | COUPLING Komatsu | 13.15 kg. |
| 11 | 209-26-71310 | [1] | PLATE Komatsu China | |
| 12 | 205-32-51211 | [1] | BOLT Komatsu | 0.17 kg. |
| 13 | 208-27-61170 | [1] | CARRIER Komatsu | 46.3 kg. |
| 14 | 208-27-61140 | [4] | GEAR Komatsu China | 11.25 kg. |
| 15 | 207-27-61230 | [4] | BEARING Komatsu | 0.65 kg. |
| 16 | 20Y-27-21250 | [8] | WASHER Komatsu China | 0.03 kg. |
| 17 | 207-27-61250 | [4] | PIN Komatsu China | 1.75 kg. |
| 18 | 20Y-27-21290 | [4] | PIN Komatsu OEM | 0.03 kg. |
| 19 | 209-26-71160 | [1] | GEAR Komatsu | 49.8 kg. |
| 20 | 209-26-71190 | [1] | SPACER Komatsu China | |
| 21 | 01011-61820 | [28] | BOLT Komatsu | 0.286 kg. |
| 22 | 01643-31845 | [28] | WASHER Komatsu China | 0.02 kg. |
| analogs:["0164321845", "R0164331845"] | ||||
| 23 | 208-27-61132 | [1] | GEAR Komatsu | 4.4 kg. |
| 24 | 207-27-52270 | [1] | SPACER Komatsu OEM | 0.089 kg. |
| 25 | 04260-01270 | [1] | BALL Komatsu OEM | 0.009 kg. |
| 26 | 21T-26-31160 | [1] | PLATE Komatsu | 0.25 kg. |
| 27 | 209-26-71180 | [1] | SPACER Komatsu | 0.08 kg. |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 21T-26-31120 | [1] | CARRIER Komatsu China | |
| 2 | 21T-26-31140 | [3] | GEAR Komatsu | 7.85 kg. |
| 3 | 20Y-26-21290 | [3] | BEARING Komatsu | 0.31 kg. |
| 4 | 20Y-27-21250 | [6] | WASHER Komatsu China | 0.03 kg. |
| 5 | 20Y-26-21320 | [3] | PIN Komatsu China | 1.33 kg. |
| 6 | 20Y-26-21330 | [3] | PIN Komatsu China | 0.1 kg. |
| 7 | 209-26-71150 | [1] | GEAR Komatsu | 26.4 kg. |
| 8 | 21T-26-31130 | [1] | SHAFT Komatsu China | |
| 9 | 20Y-27-11250 | [1] | SPACER Komatsu OEM | 0.044 kg. |
| analogs:["2052771570"] | ||||
| 10 | 21T-26-31110 | [1] | COVER Komatsu China | |
| 11 | 01010-61685 | [18] | BOLT Komatsu | 0.165 kg. |
| analogs:["0101051685", "0101031685", "0101081685"] | ||||
| 12 | 01643-31645 | [18] | WASHER Komatsu | 0.072 kg. |
| analogs:["802170005", "0164301645"] | ||||
| 13 | 07103-20606 | [1] | HOSE Komatsu China | |
| analogs:["0710300606"] | ||||
| 14 | 209-26-51280 | [1] | ELBOW Komatsu China | |
| 15 | 07730-40004 | [1] | VALVE Komatsu | 0.33 kg. |
| 16 | 417-875-1630 | [1] | UNION Komatsu China | |
| 17 | 209-26-72150 | [1] | GAUGE Komatsu | 0.1 kg. |
| 18 | 21T-26-31210 | [1] | FILLER Komatsu China | |
| 19 | 21T-26-31170 | [1] | HOSE Komatsu China | |
| 20 | 07030-00252 | [1] | BREATHER Komatsu | 0.09 kg. |
| ["SN: 20001-UP"] analogs:["R0703000252"] | ||||
| 21 | 21T-26-31150 | [1] | BRACKET Komatsu China | |
| 22 | 07283-32738 | [1] | CLIP Komatsu | 0.084 kg. |
| 23 | 01597-01009 | [2] | NUT Komatsu | 0.011 kg. |
| 24 | 01643-31032 | [2] | WASHER Komatsu | 0.054 kg. |
| analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 25 | 01010-81030 | [2] | BOLT Komatsu OEM | 0.03 kg. |
| analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 27 | 07049-03038 | [2] | PLUG Komatsu | 0.214 kg. |
