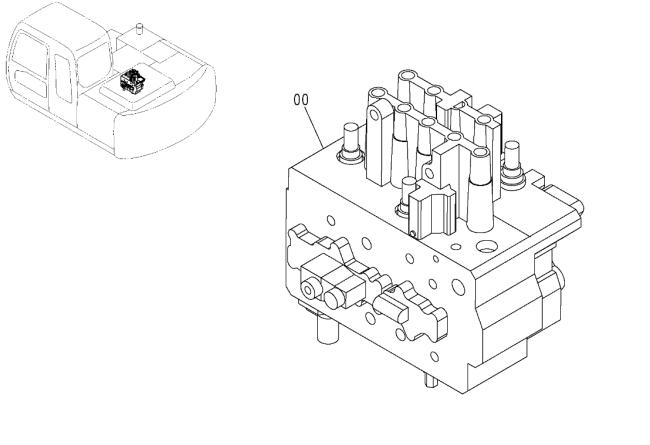

4410248 For Hitachi ZX120 ZX120-E ZX120-HCMC ZX130-AMS ZX130-HCME ZX130H ZX130K EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE HCV06 Aftermarket Original
4410248 For Hitachi ZX120 ZX120-E ZX120-HCMC ZX130-AMS ZX130-HCME ZX130H ZX130K EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE HCV06 Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 4410248 For Hitachi ZX120 ZX120-E ZX120-HCMC ZX130-AMS ZX130-HCME ZX130H ZX130K EXCAVATORS PARTS Hydraulic MAIN CONTROL VALVE HCV06 Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

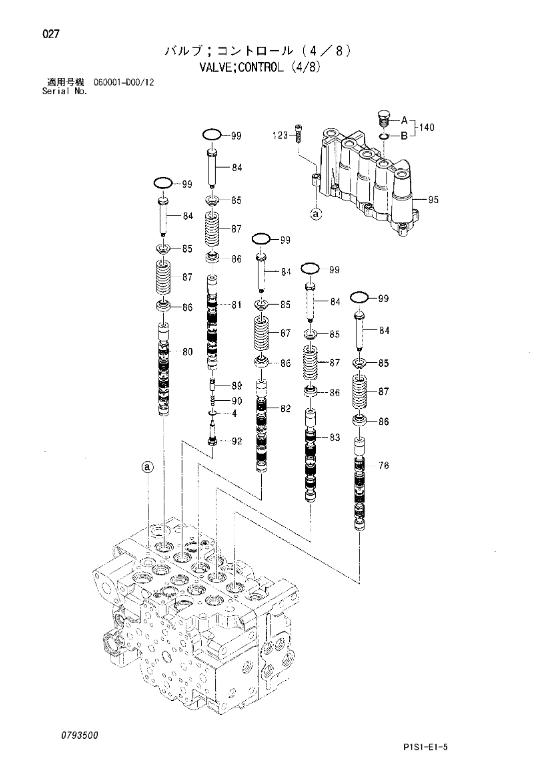

| Pos. | Part No | Qty | Parts name | Comments |
| 4410248 | [1] | VALVE;CONTROL | (4/8)<BR>This PART NO. consists of all parts shown in VALVE;CONTROL(1/8) to (8/8). | |
| 4 | 4506320 | [1] | O-RING | |
| 76 | +++++++ | [1] | SPOOL | |
| 80 | +++++++ | [1] | SPOOL | |
| 81 | +++++++ | [1] | SPOOL | |
| 82 | +++++++ | [1] | SPOOL | |
| 83 | +++++++ | [1] | SPOOL | |
| 84 | 0670002 | [5] | BOLT | |
| 85 | 0670003 | [5] | SEAT;SPRING | |
| 86 | 0670004 | [5] | SEAT;SPRING | |
| 87 | 0793501 | [5] | SPRING | |
| 89 | 0412015 | [1] | VALVE | |
| 90 | 0412016 | [1] | SPRING | |
| 92 | 0670001 | [1] | PLUG | |
| 95 | 0793502 | [1] | HOUSING | |
| 99 | 0669906 | [5] | O-RING | |
| 123 | 0411804 | [10] | BOLT;SOCKET | |
| 140 | 4385798 | [1] | PLUG | |
| 140A. | 0309466 | [1] | PLUG | |
| 140B. | 4509180 | [1] | O-RING |
| Pos. | Part No | Qty | Parts name | Comments |
| 4410248 | [1] | VALVE;CONTROL | (7/8)<BR>This PART NO. consists of all parts shown in VALVE;CONTROL(1/8) to (8/8). | |
| 4 | 4506320 | [1] | O-RING | |
| 11 | 0309402 | [1] | O-RING | |
| 22 | 0793804 | [1] | VALVE;CHECK | |
| 26 | 0309413 | [1] | SPRING | |
| 27 | 0669902 | [1] | PLUG | |
| 28 | 4506412 | [1] | O-RING | |
| 29 | 0309416 | [1] | RING;BACK-UP | |
| 68 | 0670303 | [1] | WASHER | |
| 73 | 0793801 | [1] | SPOOL | |
| 74 | 0670307 | [1] | SPRING | |
| 98 | 0393902 | [1] | O-RING | |
| 100 | 0793601 | [1] | VALVE;HOLDING | |
| 101 | 0412212 | [1] | SPRING | |
| 113 | 0793605 | [1] | RING;BACK-UP | |
| 114 | 0793606 | [1] | RING;BACK-UP | |
| 118 | 4372684 | [1] | VALVE;RELIEF | |
| 119 | 4372683 | [1] | VALVE;RELIEF | |
| 141 | 4455787 | [1] | BODY | |
| 141A. | 0793802 | [1] | BODY ASSY | |
| 141A1. | +++++++ | [1] | BODY | |
| 141A2. | +++++++ | [1] | SPOOL | |
| 141B. | 0670104 | [2] | RING;BACK-UP | |
| 141C. | 4509181 | [2] | O-RING | |
| 141D. | 4506420 | [1] | O-RING | |
| 141E. | 0670105 | [1] | WASHER | |
| 141F. | 0793603 | [1] | SPRING | |
| 141G. | 0670107 | [1] | PLUG | |
| 141H. | 4509180 | [1] | O-RING | |
| 141I. | 4297661 | [1] | RING;BACK-UP | |
| 142 | 0793803 | [1] | SCREW | |
| 147 | 4506409 | [1] | O-RING |

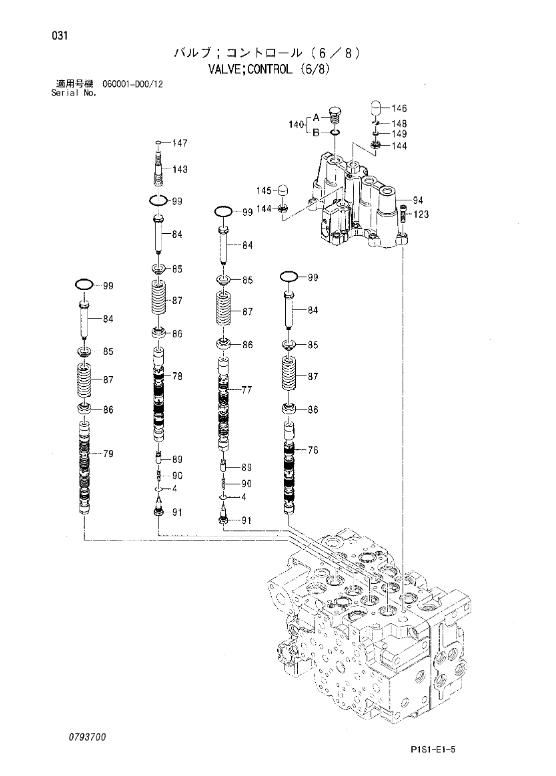

| Pos. | Part No | Qty | Parts name | Comments |
| 4410248 | [1] | VALVE;CONTROL | (6/8)<BR>This PART NO. consists of all parts shown in VALVE;CONTROL(1/8) to (8/8). | |
| 4 | 4506320 | [2] | O-RING | |
| 76 | +++++++ | [1] | SPOOL | |
| 77 | +++++++ | [1] | SPOOL | |
| 78 | +++++++ | [1] | SPOOL | |
| 79 | +++++++ | [1] | SPOOL | |
| 84 | 0670002 | [4] | BOLT | |
| 85 | 0670003 | [4] | SEAT;SPRING | |
| 86 | 0670004 | [4] | SEAT;SPRING | |
| 87 | 0793501 | [4] | SPRING | |
| 89 | 0412015 | [2] | VALVE | |
| 90 | 0412016 | [2] | SPRING | |
| 91 | 0670201 | [2] | PLUG | |
| 94 | 0793701 | [1] | HOUSING | |
| 99 | 0669906 | [4] | O-RING | |
| 123 | 0411804 | [11] | BOLT;SOCKET | |
| 140 | 4385798 | [1] | PLUG | |
| 140A. | 0309466 | [1] | PLUG | |
| 140B. | 4509180 | [1] | O-RING | |
| 143 | 0670206 | [1] | SCREW | |
| 144 | 0412202 | [2] | NUT | |
| 145 | 0412204 | [1] | CAP | |
| 146 | 0670207 | [1] | CAP | |
| 147 | 4506409 | [1] | O-RING | |
| 148 | 0412203 | [1] | RING;RETAINING | |
| 149 | 0670208 | [1] | WASHER |
