31N6-15010 For Hyundai R200-W7 WHEEL EXCAVATOR Parts KAWASAKI K3V112DP-119R-9S09-D Hydraulic Pump MAIN PUMP Aftermarket Original
31N6-15010 For Hyundai R200-W7 WHEEL EXCAVATOR parts KAWASAKI K3V112DP-119R-9S09-D Hydraulic Pump MAIN PUMP Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 31N6-15010 For Hyundai R200-W7 WHEEL EXCAVATOR parts KAWASAKI K3V112DP-119R-9S09-D Hydraulic Pump MAIN PUMP Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: KOMATSU | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

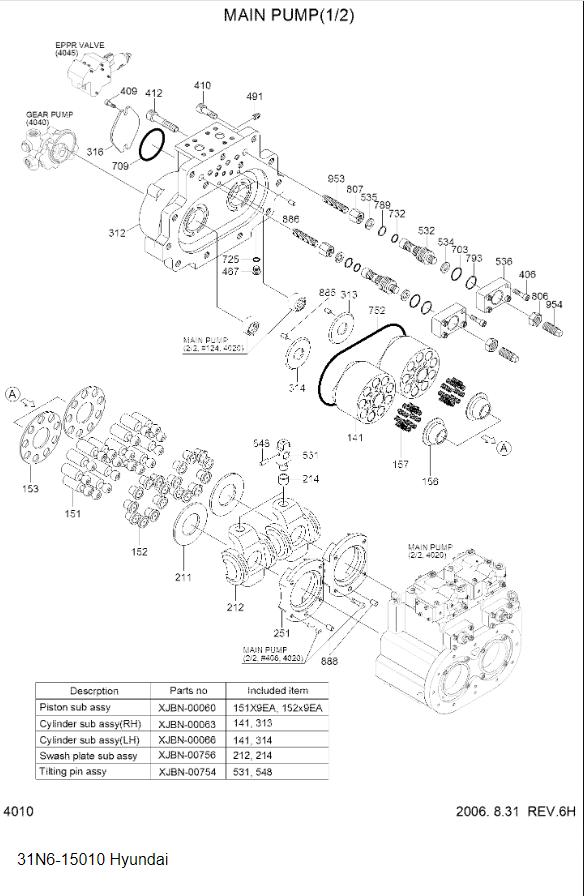

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N6-15010 | [1] | MAIN PUMP | *-1,*-2,*-3,*-4 |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| NS141. | XJBN-00067 | [2] | BLOCK-CYLINDER | |
| NS151. | XJBN-00061 | [18] | PISTON | |
| NS152. | XJBN-00062 | [18] | SHOE | |
| 153 | XJBN-00082 | [2] | PLATE-SET | |
| 156 | XJBN-00083 | [2] | BUSHING-SPHERICAL | |
| 157 | XJBN-00084 | [18] | SPRING-CYLINDER | |
| 211 | XJBN-00085 | [2] | PLATE-SHOE | |
| NS212. | XJBN-00780 | [2] | PLATE-SWASH | |
| S214. | XJBN-00071 | [2] | BUSHING-TILTING | |
| 251 | XJBN-00779 | [2] | SUPPORT | |
| 312 | XJBN-00776 | [1] | COVER-VALVE | |
| S313. | XJBN-00738 | [1] | PLATE-VALVE,RH | |
| S314. | XJBN-00739 | [1] | PLATE-VALVE,LH | |
| 316 | XJBN-00690 | [1] | COVER | |
| 406 | XJBN-00029 | [8] | SCREW-HEX | |
| 409 | XJBN-00696 | [2] | SCREW-HEX | |
| 410 | XJBN-00775 | [12] | SCREW-HEX | |
| 412 | XJBN-00774 | [1] | SCREW-HEX | |
| 467 | XJBN-00265 | [2] | PLUG | |
| 491 | XJBN-00234 | [9] | PLUG | |
| NS531. | XJBN-00771 | [2] | PIN-TILTING | |
| 532 | XJBN-00770 | [2] | PISTON-SERVO | |
| 534 | XJBN-00769 | [2] | STOPPER(L) | |
| 535 | XJBN-00093 | [2] | STOPPER(S) | |
| 536 | XJBN-00768 | [2] | COVER-SERVO | |
| NS548. | XJBN-00360 | [2] | PIN-FEED BACK | |
| 703 | XJBN-00281 | [2] | O-RING | |
| 709 | XJBN-00387 | [1] | O-RING | |
| 725 | XJBN-00045 | [2] | O-RING | |
| 732 | XJBN-00097 | [2] | O-RING | |
| 752 | XJBN-00763 | [1] | PACKING-SEAT | |
| 789 | XJBN-00099 | [2] | RING-BACK UP | |
| 793 | XJBN-00761 | [2] | RING-BACK UP | |
| 806 | XJBN-00101 | [2] | NUT | |
| 807 | XJBN-00760 | [2] | NUT | |
| 885 | XJBN-00103 | [2] | PIN-VALVE PLATE | |
| 886 | XJBN-00054 | [2] | PIN-SPRING | |
| 888 | XJBN-00712 | [2] | PIN | |
| 953 | XJBN-00757 | [2] | SCREW-SET | |
| 954 | XJBN-00392 | [2] | SCREW-SET | |
| *-2. | @ | [2] | REGULATOR | SEE 4030 |
| *-3. | @ | [1] | GEAR PUMP | SEE 4040 |
| *-4. | @ | [1] | EPPR VALVE | SEE 4045 |
| S. | XJBN-00060 | [2] | PISTON ASSY | SEE ILLUST |
| S. | XJBN-00063 | [1] | CYLINDER ASSY(RH) | SEE ILLUST |
| S. | XJBN-00066 | [1] | CYLINDER ASSY(LH) | SEE ILLUST |
| S. | XJBN-00756 | [2] | SWASH PLATE ASSY | SEE ILLUST |
| S. | XJBN-00754 | [2] | TILTING PIN ASSY | SEE ILLUST |

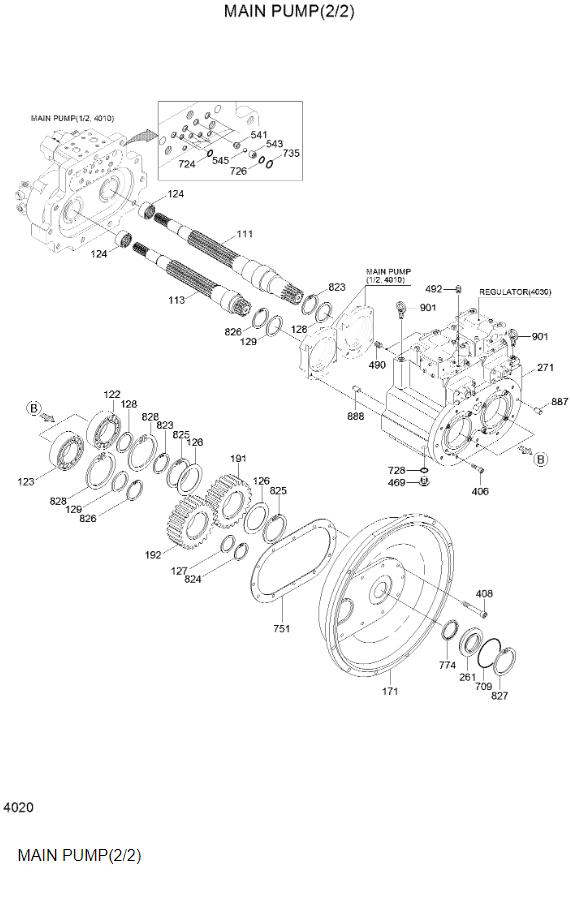

| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | MAIN PUMP | SEE 4010 |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| 111 | XJBN-00790 | [1] | SHAFT-DRIVE | |
| 113 | XJBN-00789 | [1] | SHAFT-DRIVEN | |
| 122 | XJBN-00788 | [1] | BEARING-ROLLER | |
| 123 | XJBN-00787 | [1] | BEARING-ROLLER | |
| 124 | XJBN-00786 | [2] | BEARING-NEEDLE | |
| 126 | XJBN-00785 | [2] | SPACER-BEARING | |
| 127 | XJBN-00081 | [1] | SPACER-BEARING | |
| 128 | XJBN-00784 | [2] | SPACER-BEARING | |
| 129 | XJBN-00569 | [2] | SPACER-BEARING | |
| 171 | XJBN-00783 | [1] | CASING-FRONT | |
| 191 | XJBN-00782 | [1] | GEAR-DRIVE | |
| 192 | XJBN-00781 | [1] | GEAR-DRIVEN | |
| 261 | XJBN-00778 | [1] | COVER-FRONT | |
| 271 | XJBN-00777 | [1] | CASING-PUMP | |
| 406 | XJBN-00029 | [8] | SCREW-HEX | |
| 408 | XJBN-00695 | [10] | SCREW-HEX | |
| 469 | XJBN-00238 | [2] | PLUG | |
| 490 | XJBN-00032 | [15] | PLUG | |
| 492 | XJBN-00772 | [2] | RESTRICTOR | |
| N541. | XJBN-00767 | [4] | SEAT | |
| N543. | XJBN-00766 | [4] | STOPPER 1 | |
| N545. | XJBN-00765 | [4] | BALL-STEEL | |
| 709 | XJBN-00387 | [1] | O-RING | |
| 724 | XJBN-00044 | [3] | O-RING | |
| 726 | XJBN-00231 | [4] | O-RING | |
| 728 | XJBN-00046 | [2] | O-RING | |
| 735 | XJBN-00280 | [4] | O-RING | |
| 751 | XJBN-00764 | [1] | PACKING | |
| 774 | XJBN-00762 | [1] | SEAL-OIL | |
| 823 | XJBN-00759 | [2] | RING-SNAP | |
| 824 | XJBN-00102 | [1] | RING-SNAP | |
| 825 | XJBN-00508 | [2] | RING-SNAP | |
| 826 | XJBN-00052 | [2] | RING-SNAP | |
| 827 | XJBN-00489 | [1] | RING-SNAP | |
| 828 | XJBN-00130 | [2] | RING-SNAP | |
| 887 | XJBN-00758 | [2] | PIN-SPRING | |
| 888 | XJBN-00712 | [2] | PIN | |
| 901 | XJBN-00104 | [2] | BOLT-EYE |
