24100J11720F5 24100J13483F3 For Kobelco SK250NLC SK220LC SK250LC SK250 SK220-4 EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
24100J11720F5 24100J13483F3 For Kobelco SK250NLC SK220LC SK250LC SK250 SK220-4 EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 24100J11720F5 24100J13483F3 For Kobelco SK250NLC SK220LC SK250LC SK250 SK220-4 EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

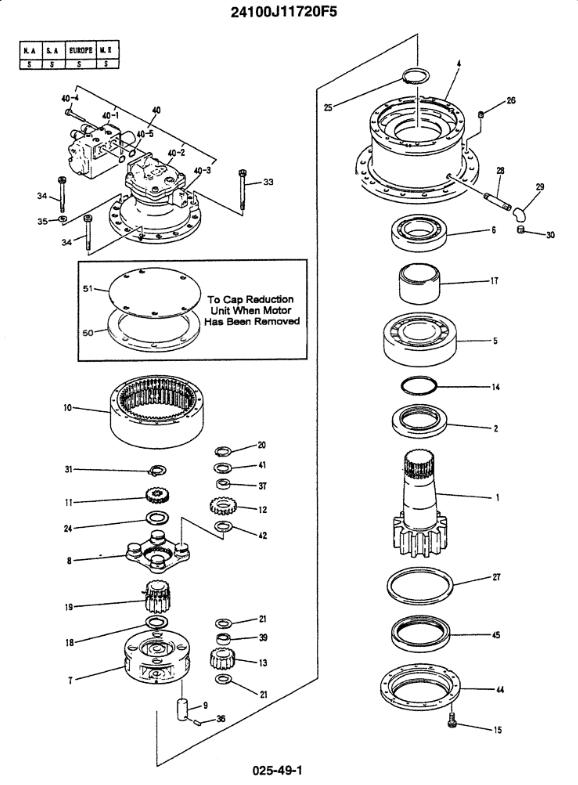

| Pos. | Part No | Qty | Parts name | Comments |
| . . | 24100J11720F5 | [1] | MOTOR | KOB Assembly, Swing |
| . . | 24100J13483F3 | [1] | REDUCER | KOB Incls. Refs. 1-30, 33-39 & 41-45 |
| 1 | 2410N518 | [1] | FINGER ASSY. | KOB Shaft, Pinion |
| 2 | 2418T17493 | [1] | SLEEVE | KOB Sleeve |
| 4 | 2414J1092 | [1] | HOUSING | HOUSING |
| 5 | 25Z804D22 | [1] | ROLLER BEARING | KOB |
| 6 | 2425R212 | [1] | SPARE PART | HIT Superseded by part number: 2425R170D18 |
| 7 | 2413J376 | [1] | DIFF. SPIDER | KOB |
| 8 | 2413N452F1 | [1] | SPIDER | KOB Assembly |
| 9 | 2410T352 | [4] | ROLLER SHAFT | KOB |
| 10 | 2401J149 | [1] | RING GEAR | KOB |
| 11 | 2401P1307 | [1] | SUN GEAR | KOB |
| 12 | 2401P1303 | [4] | PINION | KOB Planetary |
| 13 | 2401P1302 | [4] | PINION | KOB Planetary |
| 14 | ZD11G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOB ID 109.40 ± 0.91 x OD 115mm |
| 15 | ZS23C12035 | [12] | SCREW,Hex Socket Head, M12 x 35mm | KOB M12x1.75x35mm |
| 17 | 2418T17492 | [1] | SPACER | KOB |
| 18 | 2418T17491 | [1] | SPACER | KOB |
| 19 | 2401P1301 | [1] | SUN GEAR | KOB |
| 20 | ZR16X04000 | [4] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 21 | 2418T20446 | [8] | THRUST WASHER | KOB |
| 24 | 2418P22118 | [1] | SPACER | KOB |
| 25 | ZR16X10000 | [1] | RING | KOB Retaining -- ID 94.50 x OD 119 x Th 3.0mm |
| 26 | ZS83C20030 | [2] | SCREW | KOB Set -- M20x2.50x30mm |
| 27 | 2418T17494 | [1] | SPACER | KOB |
| 28 | 2420T6698D2 | [1] | PIPE | KOB |
| 29 | ZG31U12000 | [1] | ELBOW | KOB |
| 30 | ZE82T12000 | [1] | PLUG | KOB 3/4" PT |
| 31 | ZR16X04500 | [1] | RING | KOB Retaining -- ID 45 x OD 58 x Th 1.8mm |
| 33 | 2420T4530 | [3] | SCREW,M14 x 2 x 185mm | KOB M14x2.0x185mm |
| 34 | ZS23C14150 | [13] | SCREW,Hex Socket Head, M14 x 150mm | KOB M14x2.0x150mm |
| 35 | ZW16H14000 | [2] | WASHER | KOB ID 15 x OD 29 x Th 3.2mm |
| 36 | ZP26D08032 | [4] | PIN | KOB Roll -- OD 08 x 32mm Long |
| 37 | 2425Z540 | [4] | NEEDLE BEARING,40mm ID x 48mm OD x 25mm W | KOB |
| 39 | 2425Z541 | [4] | NEEDLE BEARING,40mm ID x 54mm OD x 50mm W | KOB |
| 40 | 2441U927F1 | [1] | HYDRAULIC MOTOR | KOB Incls. Refs. 40-1 - 40-5 |
| 40-1. | 2436U2567F1 | [1] | CONTROL VALVE | KOB |
| 40-2. | 2441U786F1 | [1] | MOTOR | KOB Swing |
| 40-3. | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOB |
| 40-4. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOB M12x1.75x110mm Superseded by part number: ZS28C12110 |
| 40-5. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB ID 34.40 ± 0.33 x OD 40mm |
| 41 | 2418T19775D3 | [4] | THRUST WASHER | KOB |
| 42 | 2418T20962 | [4] | THRUST WASHER | KOB |
| 44 | 2418P25746 | [1] | RETAINER | KOB |
| 45 | 2418R561 | [1] | SEAL | KOB Oil |
| 50 | NA | [1] | NOT SERVICED | FOR Spacer |
| 51 | NA | [1] | NOT SERVICED | FOR Cover |
