708-1L-00380 7081L00380 7081L21230 For KOMATSU D61EX-15E0 D61EX-15 D61PX-15E0 Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE HSS PUMP Aftermarket Original
708-1L-00380 7081L00380 7081L21230 For KOMATSU D61EX-15E0 D61EX-15 D61PX-15E0 Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE HSS PUMP Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 708-1L-00380 7081L00380 7081L21230 For KOMATSU D61EX-15E0 D61EX-15 D61PX-15E0 Excavator Parts Hydraulic PUMP MAIN PUMP PUMP DEVICE HSS PUMP Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: KOMATSU | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

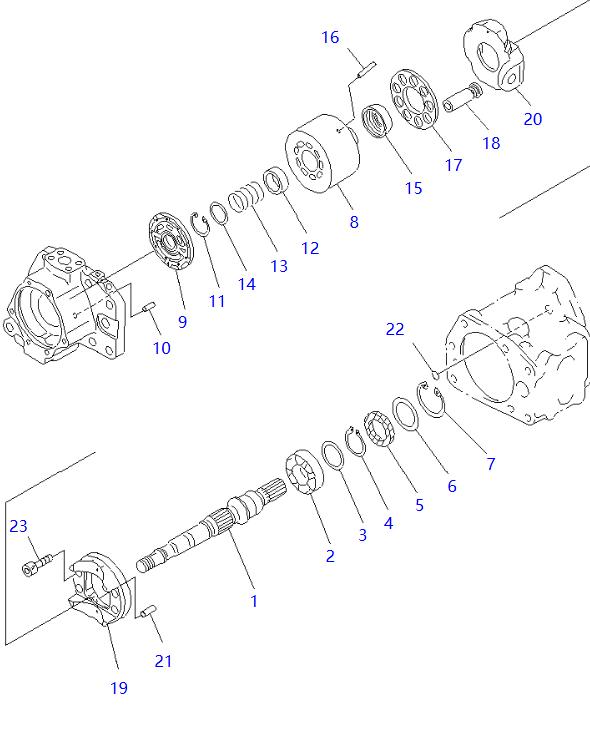

| Pos. | Part No | Qty | Parts name | Comments |
| 708-1L-00380 | [1] | PUMP ASSY Komatsu | 20.5 kg. | |
| analogs:["7081L21230"] | ||||
| 1 | 708-1L-22111 | [1] | SHAFT Komatsu | 3.282 kg. |
| 2 | 708-2L-32150 | [1] | BEARING Komatsu | 0.6 kg. |
| analogs:["7082E12152", "7082L22150", "7082512731"] | ||||
| 3 | 708-2E-05040 | [1] | WASHER KIT Komatsu | 0.101 kg. |
| analogs:["7082E12190"] | ||||
| 4 | 708-25-12790 | [1] | RING,SNAP Komatsu | 0.006 kg. |
| 5 | 708-25-52861 | [1] | SEAL,OIL Komatsu China | 0.078 kg. |
| analogs:["7082552860", "7067340920"] | ||||
| 6 | 708-2L-22160 | [1] | SPACER Komatsu | 0.047 kg. |
| 7 | 04065-06825 | [1] | RING,SNAP Komatsu | 0.018 kg. |
| 708-2L-06180 | [1] | BLOCK ASSY,REAR Komatsu | 5.3 kg. | |
| analogs:["7082L06350"] | ||||
| 10 | 720-68-19610 | [1] | PIN Komatsu | 0.002 kg. |
| 11 | 04065-04818 | [1] | RING,SNAP Komatsu OEM | 0.007 kg. |
| 12 | 708-2L-23131 | [1] | SEAT Komatsu | 0.073 kg. |
| 13 | 708-2L-33160 | [1] | SPRING Komatsu | 0.12 kg. |
| analogs:["7082L23151"] | ||||
| 14 | 708-7L-13140 | [1] | SEAT Komatsu | 0.02 kg. |
| 15 | 708-2L-23351 | [1] | GUIDE,RETAINER Komatsu OEM | 0.14 kg. |
| 16 | 708-2L-23360 | [3] | PIN Komatsu | 0.003 kg. |
| 17 | 708-2L-33361 | [1] | RETAINER,SHOE Komatsu | 0.5 kg. |
| analogs:["7082L33360"] | ||||
| 18 | 708-2L-33310 | [9] | PISTON SUB ASSY Komatsu OEM | 0.211 kg. |
| analogs:["7082L23313"] | ||||
| 708-1L-04510 | [1] | CRADLE ASSY Komatsu | 5 kg. | |
| 21 | 04020-01228 | [1] | PIN Komatsu | 0.026 kg. |
| analogs:["21T3016190"] | ||||
| 22 | 07000-B1009 | [1] | O-RING Komatsu China | 0.001 kg. |
| analogs:["7082L23910"] | ||||
| 23 | 01252-61230 | [4] | BOLT Komatsu | 0.044 kg |

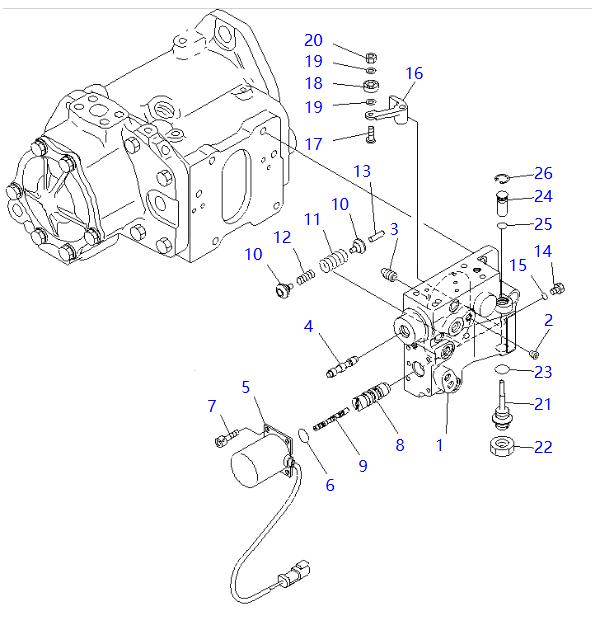

| Pos. | Part No | Qty | Parts name | Comments |
| 708-1L-00380 | [1] | PUMP ASSY Komatsu | 20.5 kg. | |
| analogs:["7081L21230"] | ||||
| 708-1L-03430 | [1] | SERVO VALVE ASSY Komatsu China | ||
| 708-1L-03841 | [1] | BODY ASSY Komatsu | 6.5 kg. | |
| 5 | 708-2L-25190 | [1] | SOLENOID ASSY Komatsu | 0.84 kg. |
| 6 | 07000-B2016 | [1] | O-RING Komatsu | 0.001 kg. |
| 7 | 01252-60612 | [4] | BOLT Komatsu | 0.006 kg. |
| 8 | 708-1L-25910 | [1] | SLEEVE Komatsu | 0.06 kg. |
| 9 | 708-2L-25232 | [1] | SPOOL Komatsu | 0.02 kg. |
| 10 | 708-2L-25291 | [2] | SEAT Komatsu | 0.01 kg. |
| 11 | 708-2L-25251 | [1] | SPRING Komatsu | 0.02 kg. |
| 12 | 708-2L-25261 | [1] | SPRING Komatsu | 0.008 kg. |
| 13 | 708-2L-25281 | [1] | PISTON Komatsu China | |
| analogs:["R7082L25281"] | ||||
| 14 | 07040-11007 | [1] | PLUG Komatsu | 0.014 kg. |
| 15 | 07002-61023 | [1] | O-RING Komatsu | 0.22 kg. |
| analogs:["7082L23920"] | ||||
| 16 | 708-2L-25373 | [1] | LEVER Komatsu China | |
| analogs:["7082L25372"] | ||||
| 17 | 708-2L-25311 | [1] | PIN Komatsu | 0.01 kg. |
| 18 | 708-2L-25330 | [1] | BEARING Komatsu | 0.005 kg. |
| 19 | 708-2L-25321 | [2] | WASHER Komatsu | 0.003 kg. |
| 20 | 01580-00605 | [1] | NUT Komatsu | 0.002 kg. |
| analogs:["0158030605"] | ||||
| 21 | 708-2L-25340 | [1] | PLUG Komatsu China | |
| 22 | 01583-11811 | [1] | NUT Komatsu China | 0.075 kg. |
| analogs:["0158301811"] | ||||
| 23 | 07002-61823 | [1] | O-RING Komatsu | 0.001 kg. |
| 24 | 708-2L-25382 | [1] | PLUG Komatsu | 0.03 kg. |
| 25 | 07000-B2010 | [1] | O-RING Komatsu | 0.001 kg. |
| analogs:["7082L25990"] | ||||
| 26 | 04065-01610 | [1] | RING Komatsu | 0.001 kg |
