31ND-11140 31ND-13130 For Hyundai R1200-9 R800LC-9 R800LC-7A EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) Aftermarket Original
31ND-11140 31ND-13130 For Hyundai R1200-9 R800LC-9 R800LC-7A EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 31ND-11140 31ND-13130 For Hyundai R1200-9 R800LC-9 R800LC-7A EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) Aftermarket Original | TQTQCATegory: SWING DEVICE | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Pos. | Part No | Qty | Parts name | Comments |

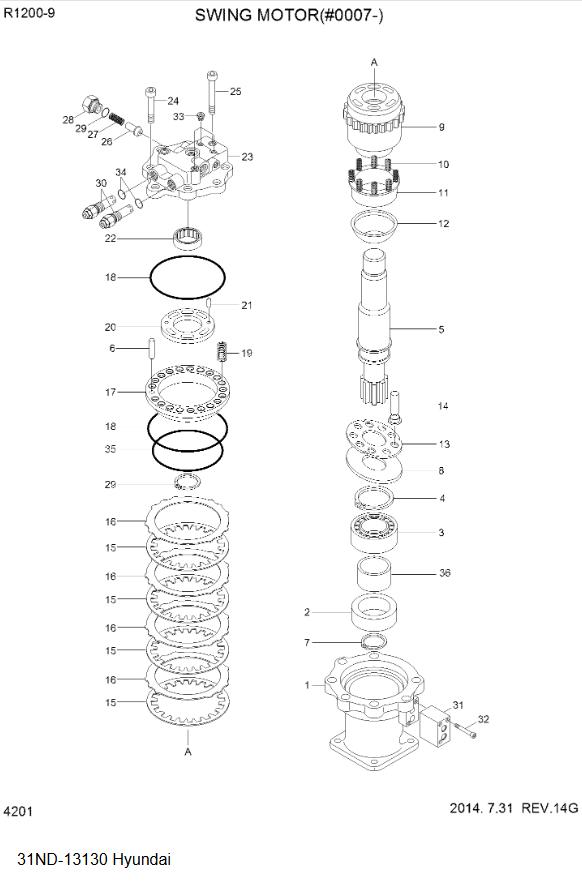

| *. | @ | [1] | SWING MOTOR ASSY | |
| *-1. | 31ND-13130 | [1] | SWING MOTOR UNIT | |
| 1 | XKAY-00161 | [1] | BODY | |
| 2 | XKAY-00162 | [1] | SEAL-OIL | |
| 3 | XKAY-00163 | [1] | BEARING-ROLLER | |
| 4 | XKAY-00164 | [1] | RING-SNAP | |
| 5 | XKAY-00165 | [1] | SHAFT | |
| 6 | XKAY-00166 | [1] | PIN | |
| 7 | XKAY-00167 | [1] | RING-STOP | |
| 8 | XKAY-00168 | [1] | PLATE-SHOE | |
| 9 | XKAY-00721 | [1] | BLOCK-CYLINDER | |
| 10 | XKAY-00170 | [9] | SPRING | |
| 11 | XKAY-00171 | [1] | GUIDE SEAT-BALL | |
| 12 | XKAY-00172 | [1] | GUIDE-BALL | |
| 13 | XKAY-00173 | [1] | PLATE-SET | |
| 14 | XKAY-00174 | [9] | PISTON ASSY | |
| 15 | XKAY-00175 | [4] | PLATE-FRICTION | |
| 16 | XKAY-00176 | [4] | PLATE | |
| 17 | XKAY-00177 | [1] | PISTON-BRAKE | |
| 18 | XKAY-00722 | [2] | O-RING | |
| 19 | XKAY-00179 | [19] | SPRING | |
| 20 | XKAY-00979 | [1] | PLATE-VALVE | |
| 21 | XKAY-00181 | [2] | PIN | |
| 22 | XKAY-00182 | [1] | BEARING-NEEDLE | |
| 23 | XKAY-01620 | [1] | COVER-REAR | |
| 23 | XKAY-02190 | [1] | COVER-REAR | |
| 24 | XKAY-00184 | [7] | BOLT-WRENCH | |
| 25 | XKAY-00185 | [1] | BOLT-WRENCH | |
| 26 | XKAY-00186 | [2] | POPPET | |
| 27 | XKAY-00187 | [2] | SPRING | |
| 28 | XKAY-00188 | [2] | PLUG | |
| 29 | XKAY-00189 | [2] | O-RING | |
| 30 | XKAY-01622 | [2] | RELIEF VALVE ASSY | |
| 31 | XKAY-00148 | [1] | VALVE-TIME DELAY | |
| 32 | XKAY-00149 | [3] | BOLT-WRENCH | |
| 33 | XKAY-00140 | [3] | PLUG | |
| 34 | XKAY-00191 | [2] | O-RING | |
| 35 | XKAY-00724 | [1] | O-RING | |
| 36 | XKAY-00193 | [1] | BUSHING | |

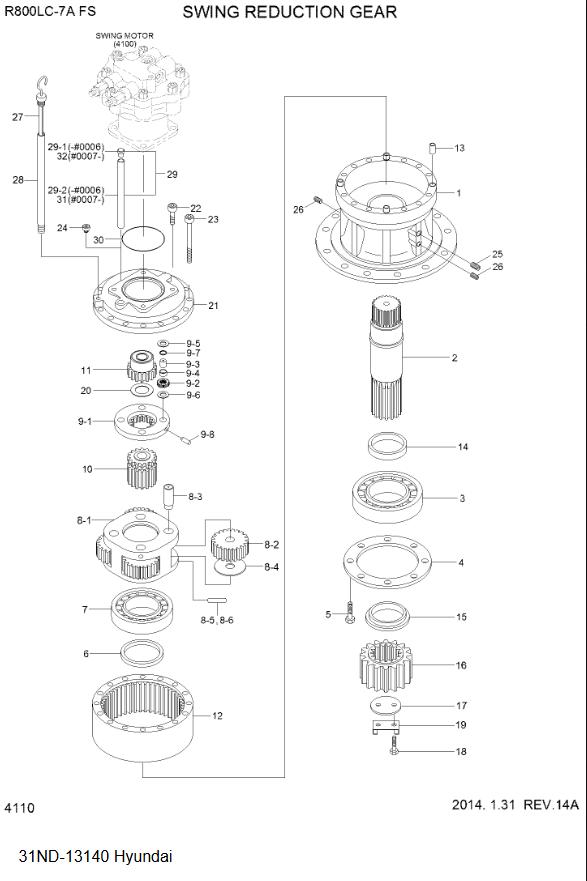

| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4110 |
| Pos. | Part No | Qty | Parts name | Comments |
| *-2. | 31ND-13140 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31ND-13141 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31ND-13142 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31ND-13143 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31ND-13142AR | [1] | SWING REDUCTION GEAR | |
| N1. | XKAQ-00406 | [1] | CASING | |
| 2 | XKAQ-00458 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00146 | [1] | BEARING-ROLLER | |
| 4 | XKAQ-00147 | [1] | PLATE-COVER | |
| 5 | XKAQ-00148 | [8] | BOLT-HEX | |
| 6 | XKAQ-00149 | [1] | SEAL-OIL | |
| 7 | XKAQ-00027 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00791 | [1] | BEARING-ROLLER | |
| 8 | XKAQ-00459 | [1] | CARRIER ASSY 2 | |
| 8 | XKAQ-00808 | [1] | CARRIER ASSY 2 | |
| 8-1. | XKAQ-00408 | [1] | CARRIER 2 | |
| 8-1. | XKAQ-00793 | [1] | CARRIER 2 | |
| 8-2. | XKAQ-00460 | [4] | GEAR-PLANET 2 | |
| 8-3. | XKAQ-00410 | [4] | PIN 2 | |
| 8-4. | XKAQ-00411 | [4] | WASHER | |
| 8-5. | XKAQ-00050 | [4] | PIN-SPRING | |
| 8-6. | XKAQ-00232 | [4] | PIN-SPRING | |
| 9 | XKAQ-00412 | [4] | CARRIER ASSY 1 | |
| 9-1. | XKAQ-00413 | [1] | CARRIER 1 | |
| 9-2. | XKAQ-00414 | [1] | GEAR-PLANETARY 1 | |
| 9-3. | XKAQ-00415 | [4] | PIN 1 | |
| 9-4. | XKAQ-00030 | [4] | CAGE-NEEDLE | |
| 9-5. | XKAQ-00416 | [4] | PLATE 2-SIDE | |
| 9-6. | XKAQ-00417 | [4] | PLATE 1-SIDE | |
| 9-7. | XKAQ-00041 | [4] | RING-STOP | |
| 9-8. | XKAQ-00048 | [4] | PIN-SPRING | |
| 10 | XKAQ-00463 | [1] | SUN GEAR 2 | |
| 11 | XKAQ-00418 | [1] | SUN GEAR 1 | |
| 12 | XKAQ-00420 | [1] | GEAR-RING | |
| 13 | XKAQ-00072 | [2] | PIN-KNOCK | |
| 14 | XKAQ-00171 | [1] | RING-SPACER | |
| 15 | XKAQ-00421 | [1] | SPACER | |
| 16 | XKAQ-00464 | [1] | GEAR-PINION | |
| 17 | XKAQ-00164 | [1] | PLATE-LOCK | |
| 18 | XKAQ-00042 | [2] | BOLT-HEX | |
| 19 | XKAQ-00292 | [2] | WASHER-LOCK | |
| 20 | XKAQ-00260 | [1] | RING-THRUST | |
| 21 | XKAQ-00750 | [1] | COVER | |
| 21 | XKAQ-00982 | [1] | COVER | |
| 22 | XKAQ-00170 | [4] | BOLT-SOCKET | |
| 23 | XKAQ-00425 | [16] | BOLT-SOCKET | |
| 24 | XKAQ-00155 | [1] | PLUG-SOCKET | |
| 25 | XKAQ-00049 | [1] | PLUG | |
| 26 | XKAQ-00274 | [2] | PLUG | |
| 27 | XKAQ-00166 | [1] | BAR-GAUGE | |
| 28 | XKAQ-00167 | [1] | PIPE-GAUGE | |
| 29 | XKAQ-00798 | [1] | AIR BREATHER ASSY | |
| 29-1. | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| 29-2. | XKAQ-00799 | [1] | POST AIR BREATHER | |
| 30 | XKAQ-00751 | [1] | O-RING | |
| 31 | XKAQ-00143 | [1] | POST-AIR BREATHER | |
| 32 | XKAQ-00797 | [1] | CAP-ARI BREATHER | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
