378-9545 3789545 4512796 451-2796 CA4512796 For TQCAT 390F EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
378-9545 3789545 4512796 451-2796 CA4512796 For TQTQCAT 390F EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 378-9545 3789545 4512796 451-2796 CA4512796 For TQTQCAT 390F EXCAVATORS PARTS Hydraulic Swing Motor SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) aftermarket Original | TQTQCATegory: Hydraulic MOTOR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

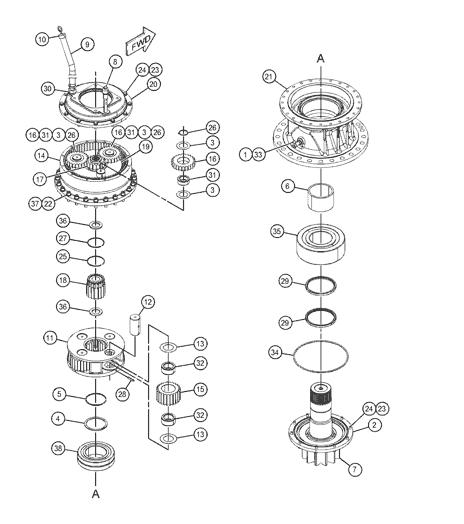

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6V-7238 | [1] | VALVE-SHUTOFF | |
| 2 | 7I-7611 | [1] | CAGE | |
| 3 | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 4 | 110-7149 | [1] | RING-RETAINING | |
| 5 | 114-1322 | [1] | RING-RETAINING | |
| 6 | 171-9413 | [1] | SPACER (140.5X160X103.2-MM THK) | |
| 7 | 199-4496 | [1] | SHAFT-PINION | |
| 8 | 227-6221 | [1] | BREATHER AS (SWING DRIVE) | |
| 4H-6112 | [1] | BREATHER (SWING DRIVE) | ||
| 227-6215 | [1] | BOSS (1/4-18-THD) | ||
| 267-6785 | [1] | PIPE | ||
| 9 | 526-1112 | [1] | PIPE AS | |
| 10 | 526-1111 | [1] | GAUGE-OIL LEVEL (DIPSTICK) | |
| 11 | 378-9523 | [1] | CARRIER-PLANETARY | |
| 12 | 378-9524 | [4] | SHAFT | |
| 13 | 378-9525 | [8] | WASHER (62.3X104X1-MM THK) | |
| 14 | 378-9526 | [1] | GEAR-RING (67-TEETH) | |
| 15 | 378-9527 | [4] | GEAR-PLANETARY (24-TEETH) | |
| 16 | 378-9528 | [3] | GEAR-PLANETARY (24-TEETH) | |
| 17 | 378-9529 | [1] | GEAR-SUN (13-TEETH) | |
| 18 | 378-9530 | [1] | GEAR-SUN (17-TEETH) | |
| 19 | 378-9531 | [1] | CARRIER AS | |
| 20 | 378-9534 | [1] | COVER-HOUSING | |
| 21 | 378-9535 | [1] | HOUSING | |
| 22 | 451-2175 | [24] | WASHER-HARD (17.5X30X3.5-MM THK) | |
| 23 | 451-2182 | [22] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 24 | 453-3447 M | [22] | BOLT (M12X1.75X40-MM) | |
| 25 | 093-1730 | [1] | RING-RETAINING | |
| 26 | 095-0927 | [3] | RING-RETAINING | |
| 27 | 096-1441 | [1] | RING-RETAINING | |
| 28 | 510-1989 | [4] | PIN-SPRING | |
| 29 | 128-9170 | [2] | SEAL-LIP TYPE | |
| 30 | 153-6247 | [1] | CONNECTOR AS | |
| 5K-9090 | [1] | SEAL-O-RING | ||
| 8C-6875 | [1] | CONNECTOR | ||
| 31 | 296-6269 | [3] | BEARING-ROLLER | |
| 32 | 378-9593 | [8] | BEARING AS | |
| 33 | 3K-0360 | [1] | SEAL-O-RING | |
| 34 | 5M-4454 | [1] | SEAL-O-RING | |
| 35 | 7I-7619 | [1] | BEARING-ROLLER | |
| 36 | 7I-7684 M | [2] | SPACER (50X79.6X6-MM THK) | |
| 37 | 8T-0348 M | [24] | BOLT-SOCKET HEAD (M16X2X50-MM) | |
| 38 | 9U-8693 | [1] | BEARING-ROLLER | |
| 1U-8846 BF | SEALANT-GASKET |

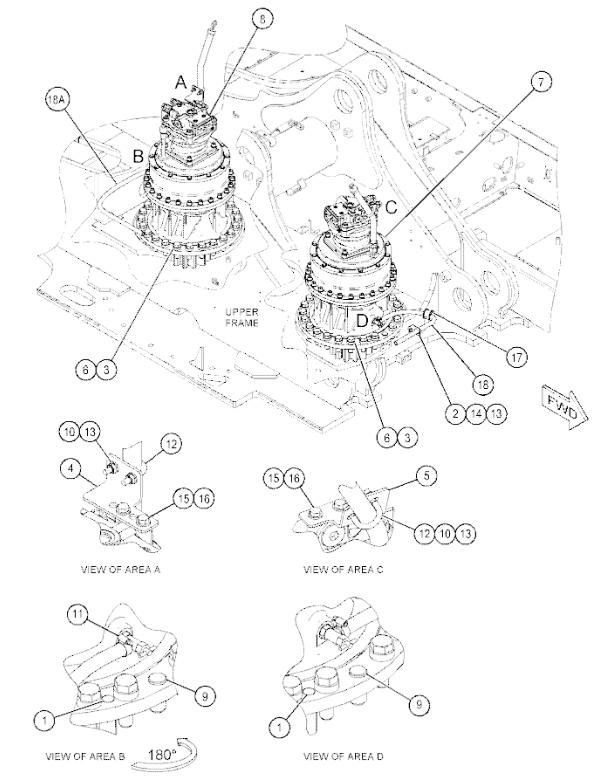

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 450-9350 Y | [1] | MOTOR & MTG GP-SWING (FRONT) | |
| 2 | 451-2801 Y | [1] | DRIVE GP-SWING (WITHOUT MOTOR) |
