39Q6-11101 FOR HYUNDAI R220LC-9S HX220SL EXCAVATORS PARTS HYDRAULIC SWING MOTOR SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL
39Q6-11101 FOR HYUNDAI R220LC-9S HX220SL EXCAVATORS PARTS HYDRAULIC SWING MOTOR SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model:39Q6-11101 FOR HYUNDAI R220LC-9S HX220SL EXCAVATORS PARTS HYDRAULIC SWING MOTOR SWING GEARBOX SWING REDUCTION GEARA SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL | TQTQCATegory: SWING MOTOR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

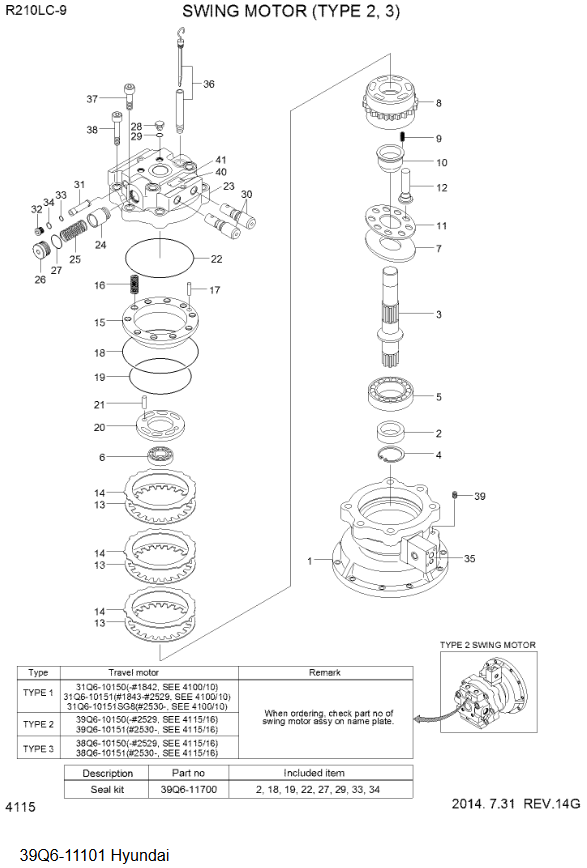

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 39Q6-10150 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| *. | 39Q6-10151 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| *. | 39Q6-10152 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 2 |
| *. | 38Q6-10150 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 3 |
| *. | 38Q6-10151 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 3 |
| *. | 38Q6-10152 | [1] | SWING MOTOR ASSY | *-1, *-2, TYPE 3 |
| *-1. | 39Q6-11100 | [1] | SWING MOTOR UNIT | TYPE 2 |
| N*-1. | 39Q6-11101 | [1] | SWING MOTOR UNIT | TYPE 2 |
| *-1. | 38Q6-11100 | [1] | SWING MOTOR UNIT | TYPE 3 |
| *-1. | 38Q6-11101 | [1] | SWING MOTOR UNIT | TYPE 3 |
| 1 | 39Q6-11110 | [1] | CASING | |
| *-A. | 39Q6-11160 | [1] | ROTARY KIT | INCL *-B, *-C, 12 |
| *-B. | 39Q6-11170 | [1] | CYLINDER BLOCK KIT | INCL 8, 9 |
| N8. | 39Q6-11180 | [1] | BLOCK-CYLINDER | |
| N9. | 39Q6-41290 | [9] | SPRING | |
| *-C. | 39Q6-11190 | [1] | RETAINER KIT | INCL 10, 11 |
| N10. | 39Q6-11200 | [1] | GUIDE-BALL | |
| N11. | 39Q6-11210 | [1] | PLATE-RETAINER | |
| N12. | 39Q6-11220 | [9] | PISTON ASSY | |
| K2. | 39Q6-11660 | [1] | SEAL-OIL | |
| 3 | 39Q6-11120 | [1] | SHAFT | |
| 4 | S601-040004 | [1] | RING-SNAP | |
| 5 | 39Q6-11130 | [1] | BEARING-ROLLER | |
| 6 | 39Q6-11140 | [1] | BEARING-NEEDLE | |
| 7 | 39Q6-11150 | [1] | PLATE-SWASH | |
| 13 | 39Q6-41360 | [4] | PLATE-FRICTION | |
| 13 | 39Q6-41361 | [4] | PLATE-FRICTION | |
| 14 | 39Q6-41370 | [4] | PLATE-SEPARATED | |
| 15 | 39Q6-11250 | [1] | PISTON-PARKING | |
| 16 | 39Q6-11260 | [26] | SPRING-BRAKE | |
| 17 | S471-800454 | [1] | PIN-SPRING | |
| K18. | Y172-043004 | [1] | O-RING | |
| K19. | Y172-041004 | [1] | O-RING | |
| 20 | 39Q6-11270 | [1] | PLATE-VALVE | |
| 21 | S471-800254 | [2] | PIN-SPRING | |
| K22. | Y172-042004 | [1] | O-RING | |
| 23 | 39Q6-11280 | [1] | CASING A-VALVE | |
| 23 | 39Q6-11281 | [1] | CASING A-VALVE | |
| 24 | 39Q6-11290 | [2] | VALVE-CHECK | |
| 25 | 39Q6-11300 | [2] | SPRING-CHECK VALVE | |
| 26 | 39Q6-11670 | [2] | PLUG | |
| 26 | 39Q6-11671 | [2] | PLUG | |
| K27. | S631-038004 | [2] | O-RING | |
| 28 | 39Q6-41750 | [3] | PLUG | |
| K29. | S631-011004 | [3] | O-RING | |
| 30 | 39Q6-11310 | [2] | VALVE ASSY-RELIFE | |
| 30 | 39Q6-11311 | [2] | VALVE ASSY-RELIFE | |
| 31 | 39Q6-11420 | [2] | REACTIONLESS VLV ASSY | SB-F-2014-007.PDF |
| 32 | 39Q6-11500 | [2] | PLUG | |
| K33. | S631-012004 | [2] | O-RING | |
| K34. | S631-018004 | [2] | O-RING | |
| 35 | 39Q6-11510 | [1] | VALVE ASSY-TIME DELAY | |
| 36 | 39Q6-11600 | [1] | GAUGE-LEVEL | |
| 36 | 39Q6-11601 | [1] | GAUGE-LEVEL | |
| 37 | S109-180456 | [2] | BOLT-SOCKET | |
| 38 | S109-180556 | [4] | BOLT-SOCKET | |
| 39 | P220-430202 | [1] | PLUG-HEX | |
| 40 | 39Q6-11650 | [1] | NAME PLATE | TYPE 2 |
| 40 | 39Q6-11652 | [1] | NAME PLATE | TYPE 2 |
| 40 | 39Q6-11653 | [1] | NAME PLATE | TYPE 2 |
| 40 | 38Q6-11650 | [1] | NAME PLATE | TYPE 3 |
| 40 | 38Q6-11652 | [1] | NAME PLATE | TYPE 3 |
| 40 | 38Q6-11653 | [1] | NAME PLATE | TYPE 3 |
| 41 | 39Q6-41800 | [2] | RIVET | |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4116 |
| K. | 39Q6-11700 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
Why choose us?
1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?
2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?
3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?
4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.
5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
