31N6-10181 FOR HYUNDAI R210LC-7 R220LC-9S R180LC7 R215LC7 RD220-7 SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
31N6-10181 FOR HYUNDAI R210LC-7 R220LC-9S R180LC7 R215LC7 RD220-7 SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model:130426-00014 FOR DOOSAN DX340LCA DX340LCA-K SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING EXCAVATORS PARTS AFTERMARKET ORIGINAL | TQTQCATegory: SWING REDUCTION GEAR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

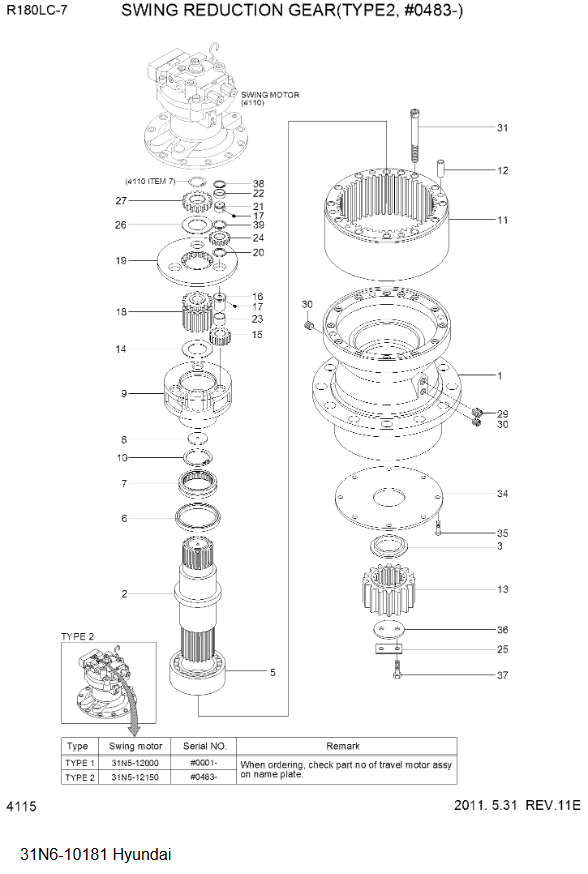

| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | SWING MOTOR ASSY | |
| *-2. | 31N6-10180 | [1] | SWING REDUCTION GEAR | |
| *-2. | 31N6-10181 | [1] | SWING REDUCTION GEAR | |
| 1 | XKAQ-00771 | [1] | CASING | |
| 1 | XKAQ-00962 | [1] | CASING | |
| 2 | XKAQ-00331 | [1] | SHAFT-DRIVE | |
| 2 | XKAQ-00780 | [1] | SHAFT-DRIVE | |
| 3 | XKAQ-00018 | [1] | SPACER | |
| 5 | XKAQ-00026 | [1] | BEARING-ROLLER | |
| 6 | XKAQ-00032 | [1] | SEAL-OIL | |
| 7 | XKAQ-00029 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00647 | [1] | BEARING-ROLLER | |
| 7 | XKAQ-00961 | [1] | BEARING-ROLLER | |
| 8 | XKAQ-00076 | [1] | PLATE-THRUST | |
| 9 | XKAQ-00075 | [1] | CARRIER 2 | |
| 10 | XKAQ-00074 | [1] | RING-STOP | |
| 11 | XKAQ-00284 | [1] | GEAR-RING | |
| 11 | XKAQ-00779 | [1] | GEAR-RING | |
| 12 | XKAQ-00072 | [4] | PIN-KNOCK | |
| 13 | XKAQ-00976 | [1] | GEAR-PINION | |
| 14 | XKAQ-00071 | [6] | WASHER-THRUST | |
| 15 | XKAQ-00023 | [3] | GEAR-PLANET 2 | |
| 16 | XKAQ-00070 | [3] | PIN | INCL 23 |
| 17 | XKAQ-00048 | [6] | PIN-SPRING | |
| 18 | XKAQ-00011 | [1] | GEAR-SUN 2 | |
| 19 | XKAQ-00015 | [1] | CARRIER 1 | |
| 20 | XKAQ-00057 | [3] | PLATE-SIDE 1 | |
| 21 | XKAQ-00019 | [3] | PIN 1 | |
| 22 | XKAQ-00030 | [3] | CAGE-NEEDLE | |
| N23. | @ | [3] | BUSHING 2 | |
| 24 | XKAQ-00025 | [3] | GEAR-PLANET 1 | |
| 25 | XKAQ-00292 | [1] | WASHER-LOCK | |
| 26 | XKAQ-00068 | [1] | PLATE-SIDE 3 | |
| 27 | XKAQ-00010 | [1] | GEAR-SUN 1 | |
| 29 | XKAQ-00049 | [1] | PLUG | |
| 30 | XKAQ-00066 | [2] | PLUG | |
| 31 | XKAQ-00065 | [12] | BOLT-SOCKET | |
| 34 | XKAQ-00031 | [1] | PLATE-COVER | |
| 35 | XKAQ-00064 | [8] | BOLT-HEX | |
| 36 | XKAQ-00043 | [1] | PLATE-LOCK | |
| 37 | XKAQ-00042 | [2] | BOLT-HEX | |
| 38 | XKAQ-00041 | [3] | RING-STOP | |
| 39 | XKAQ-00040 | [3] | PLATE-SIDE 2 | |
| *-1. | @ | [1] | SWING MOTOR UNIT | SEE 4101 |
