TQ RC511-61905 RC511-61906 RC511-61907 FOR KUBOTA U35-3 U35-3S U35S EXCAVATORS PARTS SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL
TQ RC511-61905 RC511-61906 RC511-61907 FOR KUBOTA U35-3 U35-3S U35S EXCAVATORS PARTS SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: TQ RC511-61905 RC511-61906 RC511-61907 FOR KUBOTA U35-3 U35-3S U35S EXCAVATORS PARTS SWING REDUCTION GEAR HYDRAULIC SWING MOTOR SWING GEARBOX SWING DEVICE (REAR) DRIVE GP-SWING AFTERMARKET ORIGINAL | TQTQCATegory: SWING REDUCTION GEAR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

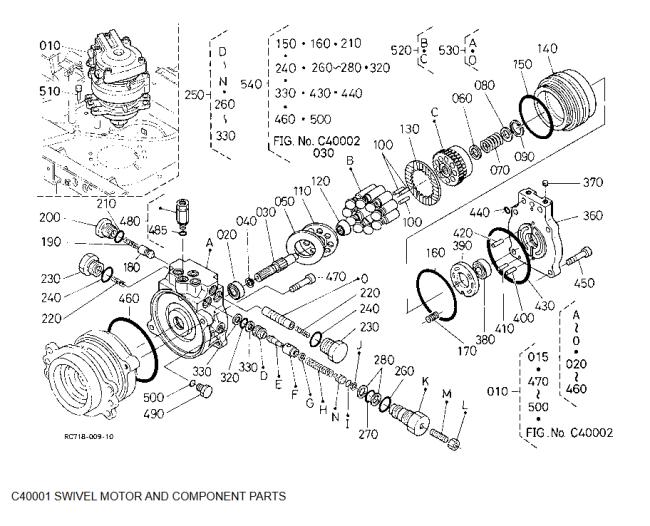

| Pos. | Part No | Qty | Parts name | Comments |
| 10 | RC511-61900 | [1] | ASSY MOTOR SWIVEL | <=20602 |
| 10 | RC511-61905 | [1] | ASSY MOTOR,SWIVEL | >=20603 |
| 15 | RC511-73100 | [1] | ASSY MOTOR | |
| 20 | RC411-73330 | [1] | BEARING,BALL | |
| 30 | RC411-73323 | [1] | SHAFT | |
| 40 | 04612-00220 | [1] | CIR-CLIP,EXTERNAL | |
| 50 | 58700-11070 | [1] | PLATE,THRUST | |
| 60 | RC411-73470 | [1] | WASHER,SPRING | |
| 70 | RC411-73460 | [1] | SPRING | |
| 80 | RC411-73470 | [1] | WASHER,SPRING | |
| 90 | 04611-00370 | [1] | CIR-CLIP,INTERNAL | |
| 100 | RC411-73710 | [3] | PIN | |
| 110 | RC411-73430 | [1] | PLATE,RETAINER | |
| 120 | RC411-73420 | [1] | HOLDER RETAINER | <=20602 |
| 120 | RC411-73422 | [1] | HOLDER,RETAINER | >=20603 |
| 130 | RC411-73210 | [1] | PLATE,FRICTION | |
| 140 | RC411-73220 | [1] | PISTON | |
| 150 | 04811-51100 | [1] | RING | |
| 160 | 04811-51300 | [1] | O RING | |
| 170 | RC411-73270 | [12] | SPRING | |
| 180 | RC301-72244 | [2] | POPPET | |
| 190 | RC301-72280 | [2] | SPRING | |
| 200 | RC101-72630 | [2] | PLUG | |
| 210 | 04817-00140 | [2] | O RING | |
| 220 | RC301-72280 | [2] | SPRING | |
| 230 | RC301-72290 | [2] | PLUG | |
| 240 | 04817-00180 | [2] | O RING | |
| 250 | RC711-72300 | [2] | ASSY VALVE,RELIEF | |
| 260 | 04817-00180 | [2] | O RING | |
| 270 | 04817-00140 | [2] | O RING | |
| 280 | 34076-66250 | [4] | RING,BACK UP | |
| 320 | 04817-00120 | [2] | O RING | |
| 330 | 68551-61420 | [4] | RING,BACK UP | |
| 360 | RC411-72213 | [1] | COVER | |
| 370 | 68311-13350 | [2] | PLUG | <=20341 |
| 370 | 15521-96030 | [2] | PLUG | >=20342 |
| 380 | 08101-06203 | [1] | BEARING,BALL | |
| 390 | RC411-73450 | [1] | PLATE,VALVE | |
| 400 | 05012-00410 | [1] | PIN,STRAIGHT | |
| 410 | 05012-00612 | [2] | PIN, STRAIGHT | |
| 420 | 05012-00818 | [2] | PIN,STRAIGHT | |
| 430 | 04811-51450 | [1] | RING | |
| 440 | 04817-00220 | [2] | O RING | |
| 450 | RC411-73520 | [5] | BOLT,HEX-SOC-HD | |
| 460 | RC411-73510 | [1] | O RING | |
| 470 | RC411-73520 | [2] | BOLT,HEX-SOC-HD | |
| 480 | RC411-73532 | [1] | FILTER | <=20602 |
| 480 | RC441-73530 | [1] | FILTER | >=20603 |
| 485 | 04817-00180 | [1] | O RING | |
| 490 | 68811-17430 | [1] | PLUG | |
| 500 | 04817-00110 | [1] | O RING | |
| 510 | 01138-51440 | [6] | BOLT,SEMS | |
| 520 | RP821-73560 | [1] | ASSY BLOCK,CYLINDER | |
| 530 | RC411-73573 | [1] | ASSY HOUSING,SWING | |
| 540 | RC411-73550 | [1] | KIT SEAL |

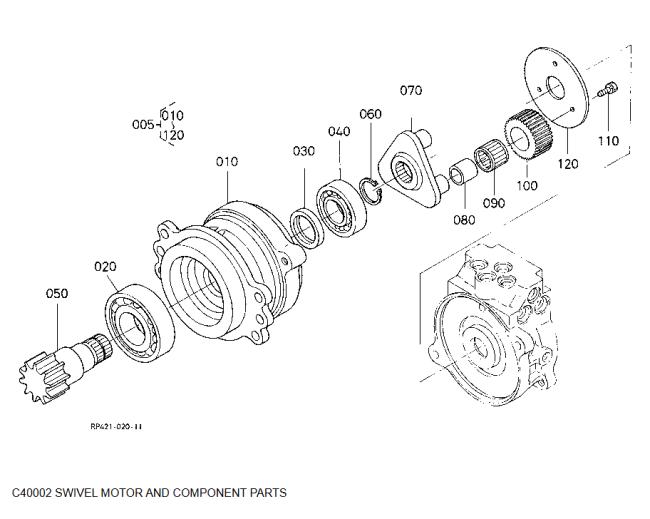

| Pos. | Part No | Qty | Parts name | Comments |
| 5 | RC411-17103 | [1] | ASSY GEAR CASE | |
| 10 | RC411-17110 | [1] | CASE,GEAR | |
| 20 | RC601-17120 | [1] | BEARING,BALL | |
| 30 | RC411-17210 | [1] | SEAL,OIL | |
| 40 | 08101-06308 | [1] | BEARING,BALL | |
| 50 | RC411-17133 | [1] | SHAFT,PINION | |
| 60 | 04612-00400 | [1] | CIR-CLIP,EXTERNAL | |
| 70 | RC411-17142 | [1] | HOLDER | |
| 80 | RC411-17170 | [3] | COLLAR | |
| 90 | 33860-31630 | [3] | BEARING,NEEDLE | |
| 100 | RC411-17190 | [3] | GEAR,PLANETARY | |
| 110 | 01053-50612 | [3] | HEX.BOLT | |
| 120 | RC411-17202 | [1] | PLATE |
