246-4486 Hydraulic Pump 14m 16m Implement Steer Main Pump Assy Piston Pump Excavator Parts
246-4486 For 14m 16m Implement Steer Hydraulic Main Pump Assy Piston Pump Excavator Parts Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 246-4486 For 14m 16m Implement Steer Hydraulic Main Pump Assy Piston Pump Excavator Parts Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

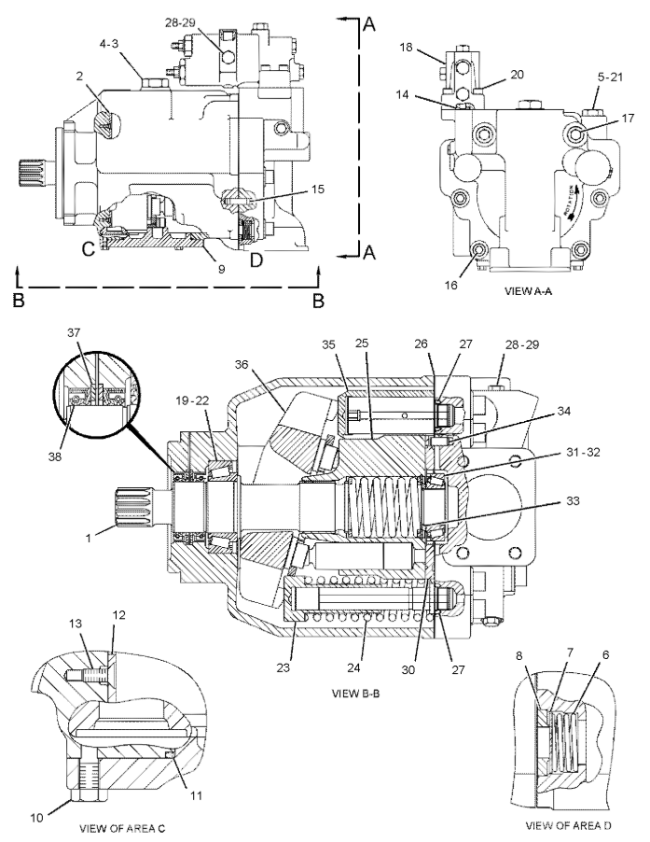

| Pos. | Part No | Qty | Parts name |
| 1 | 6E-4232 | [1] | SHAFT |
| 2 | 6E-4237 | [1] | BEARING |
| 3 | 6E-4224 | [1] | PLUG-SWASHPLATE |
| 4 | 033-6036 | [1] | SEAL-O-RING |
| 5 | 9S-4190 | [1] | PLUG-O-RING (7/8-14-THD) |
| 6 | 9T-1699 | [1] | SPRING |
| 7 | 9T-1710 | [1] | POPPET |
| 8 | 9T-1636 | [1] | SEAT |
| 9 | 6E-4227 | [1] | COVER |
| 10 | 6V-8837 M | [3] | BOLT (M6X1X16-MM) |
| 11 | 4F-4097 | [1] | SEAL-O-RING |
| 12 | 6E-4236 | [1] | BEARING |
| 13 | 3E-4302 M | [2] | SCREW-FLAT HEAD (M4X0.7X10-MM) |
| 14 | 8T-5039 | [3] | SEAL-O-RING |
| 15 | 095-0888 | [2] | PIN-SPRING |
| 16 | 8T-0343 M | [4] | BOLT-SOCKET HEAD (M12X1.75X55-MM) |
| 17 | 095-0705 M | [2] | BOLT-SOCKET HEAD (M16X2X100-MM) |
| 18 | 271-6847 Y | [1] | VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR) |
| 19 | 7K-8877 | [1] | CONE-BEARING |
| 20 | 6V-8337 M | [4] | BOLT-SOCKET HEAD (M8X1.25X35-MM) |
| 21 | 033-6027 | [1] | SEAL-O-RING |
| 22 | 7K-8876 | [1] | CUP-BEARING |
| 23 | 6E-4213 | [1] | KIT-BIAS PISTON (HYDRAULIC PISTON PUMP) |
| (INCLUDES SPRING, ROD, PISTON, & PACKING) | |||
| 24 | 6E-4214 | [1] | SPRING-BIAS |
| 25 | 6E-4216 Y | [1] | ROTATING GP-PUMP (IMPLEMENT, STEERING) |
| 26 | 6E-4225 | [1] | GASKET |
| 27 | 7L-9061 | [2] | SEAL-O-RING |
| 28 | 3E-7417 | [3] | PLUG |
| 29 | 8T-7876 | [3] | SEAL-O-RING |
| 30 | 6E-4233 | [1] | PLATE-VALVE |
| 31 | 005-0471 | [1] | CONE-BEARING |
| 32 | 005-0469 | [1] | CUP-BEARING |
| 33 | 103-6282 B | [1] | SHIM PACK (INCLUDES 17-SHIMS) |
| 34 | 9T-1652 | [1] | PIN |
| 35 | 6E-4215 | [1] | KIT-PISTON (HYDRAULIC PISTON PUMP) |
| (INCLUDES PACKING, ROD, & PISTON) | |||
| 36 | 184-1527 Y | [1] | SWASHPLATE GP (IMPLEMENT, STEERING PUMP) |
| 37 | 6L-8797 | [2] | RING-RETAINING |
| 38 | 9X-7547 | [2] | SEAL-LIP TYPE |
| B | USE AS REQUIRED | ||
| M | METRIC PART | ||
| Y | SEPARATE ILLUSTRATION |
