31ND-10010 FOR Hyundai R800-7AFS R800LC-7A EXCAVATOR PARTS HYDRAULIC MAIN PUMP ASSY HYDRAULIC PUMP K3V280DTH1AHR-9C0H-VB AFTERMARKET ORIGINAL
31ND-10010 FOR Hyundai R800-7AFS R800LC-7A EXCAVATOR PARTS HYDRAULIC MAIN PUMP ASSY HYDRAULIC PUMP K3V280DTH1AHR-9C0H-VB AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 31ND-10010 FOR Hyundai R800-7AFS R800LC-7A EXCAVATOR PARTS HYDRAULIC MAIN PUMP ASSY HYDRAULIC PUMP K3V280DTH1AHR-9C0H-VB AFTERMARKET ORIGINAL | TQTQCATegory: Hydraulic Pump | |
| Brand: Hyundai | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
|
Guarantee: We will check and send detailed pictures to buyers for confirmation |
||

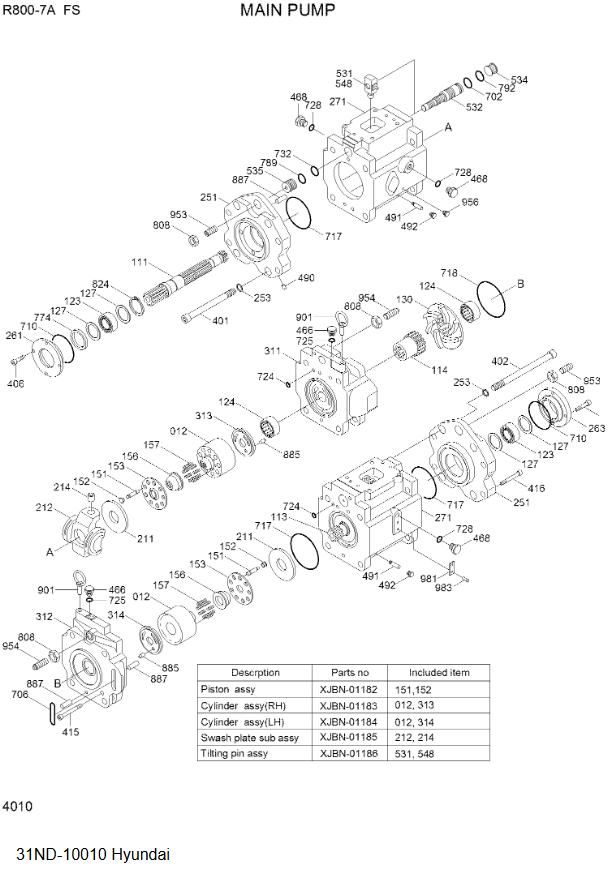

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31ND-10010 | [1] | MAIN PUMP | *-1,2,3 |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| 111 | XJBN-01130 | [1] | SHAFT(F)-DRIVE | |
| 113 | XJBN-01131 | [1] | SHAFT(R)-DRIVE | |
| 114 | XJBN-01132 | [1] | COUPLING | |
| 123 | XJBN-01133 | [2] | BEARING-ROLLER | |
| 124 | XJBN-01135 | [2] | BEARING-NEEDLE | |
| 127 | XJBN-01136 | [4] | SPACER | |
| 130 | XJBN-01137 | [1] | BOOSTER | |
| NS012. | XJBN-01138 | [2] | BLOCK-CYLINDER | |
| NS151. | XJBN-01139 | [18] | PISTON | |
| NS152. | XJBN-01140 | [18] | SHOE | |
| 153 | XJBN-01141 | [2] | PLATE-SET | |
| 156 | XJBN-01142 | [2] | BUSHING-SPHERICAL | |
| 157 | XJBN-01143 | [18] | SPRING-CYLINDER | |
| S211. | XJBN-01144 | [2] | PLATE-SHOE | |
| N212. | XJBN-01145 | [2] | PLATE-SWASH | |
| NS214. | XJBN-01146 | [2] | BEARING-STEEL | |
| N251. | XJBN-01147 | [2] | SUPPORT | |
| 253 | XJBN-01148 | [8] | WASHER | |
| 261 | XJBN-01149 | [1] | COVER-FRONT | |
| 261 | XJBN-02038 | [1] | COVER-FRONT | |
| 263 | XJBN-01150 | [1] | COVER-REAR | |
| 271 | XJBN-01151 | [2] | CASING-PUMP | |
| 311 | XJBN-01152 | [1] | COVER(F)-VALVE | |
| 312 | XJBN-01153 | [1] | COVER(R)-VALVE | |
| NS313. | XJBN-01154 | [1] | PLATE(R)-VALVE | |
| NS314. | XJBN-01155 | [1] | PLATE(F)-VALVE | |
| 401 | XJBN-01156 | [4] | SCREW | |
| 402 | XJBN-01157 | [4] | SCREW | |
| 406 | XJBN-00355 | [4] | SCREW-HEX SOC HD | |
| 407 | XJBN-00693 | [4] | BOLT | |
| 415 | XJBN-01158 | [2] | SCREW | |
| 416 | XJBN-01159 | [4] | SCREW | |
| 466 | XJBN-00356 | [2] | PLUG-VP | |
| 468 | XJBN-00357 | [4] | PLUG-VP | |
| 490 | XJBN-00032 | [31] | PLUG | |
| 491 | XJBN-01160 | [4] | RESTRICTOR | |
| 492 | XJBN-00234 | [5] | PLUG | |
| NS531. | XJBN-01161 | [2] | PIN-TILTING | |
| 532 | XJBN-01162 | [2] | PISTON-SERVO | |
| 534 | XJBN-01163 | [4] | STOPPER(L) | |
| 535 | XJBN-01164 | [2] | STOPPER(S) | |
| NS548. | XJBN-01165 | [2] | PIN-FEED BACK | |
| 702 | XJBN-01166 | [2] | O-RING | |
| 706 | XJBN-01167 | [1] | O-RING | |
| 710 | XJBN-01168 | [2] | O-RING | |
| 717 | XJBN-01169 | [4] | O-RING | |
| 718 | XJBN-01170 | [1] | O-RING | |
| 724 | XJBN-01171 | [19] | O-RING | |
| 725 | XJBN-01172 | [2] | O-RING | |
| 728 | XJBN-01173 | [2] | O-RING | |
| 732 | XJBN-01174 | [2] | O-RING | |
| 774 | XJBN-01175 | [1] | SEAL-OIL | |
| 789 | XJBN-01176 | [2] | RING-BACK UP | |
| 792 | XJBN-01177 | [2] | RING-BACK UP | |
| 808 | XJBN-00364 | [4] | NUT-HEX | |
| 824 | XJBN-00759 | [2] | RING-SNAP | |
| 885 | XJBN-00053 | [2] | PIN 2 | |
| 887 | XJBN-01178 | [5] | PIN-SPRING | |
| 901 | XJBN-01179 | [2] | BOLT-EYE | |
| 953 | XJBN-01180 | [2] | SCREW-SET | |
| 954 | XJBN-00713 | [2] | SCREW-SET | |
| 956 | XJBN-01181 | [8] | SCREW-SET | |
| 981 | XJBN-00156 | [1] | NAME PLATE | |
| 983 | XJBN-00341 | [2] | PIN | |
| *-2. | @ | [2] | REGULATOR | SEE 4020 |
| *-3. | @ | [2] | REGULATOR | SEE 4030 |
| *-4. | @ | [2] | GEAR PUMP | SEE 4040 |
| S011. | XJBN-01182 | [2] | PISTON ASSY | SEE ILLUST |
| S013. | XJBN-01183 | [1] | CYLINDER ASSY-RH | SEE ILLUST |
| S014. | XJBN-01184 | [1] | CYLINDER ASSY-LH | SEE ILLUST |
| S030. | XJBN-01185 | [2] | SWASH PLATE ASSY | SEE ILLUST |
| S530. | XJBN-01186 | [2] | TILTING PIN ASSY | SEE ILLUST |
