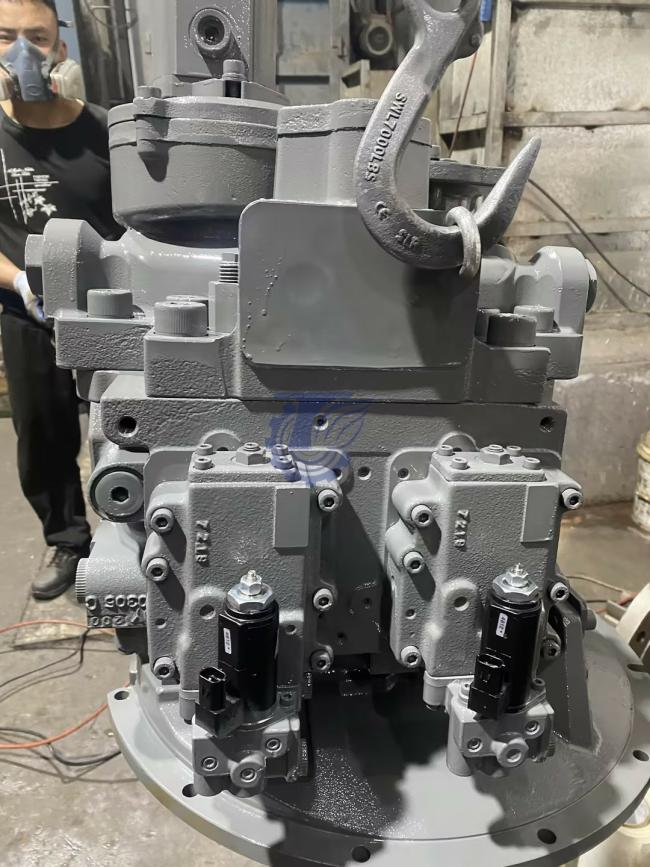

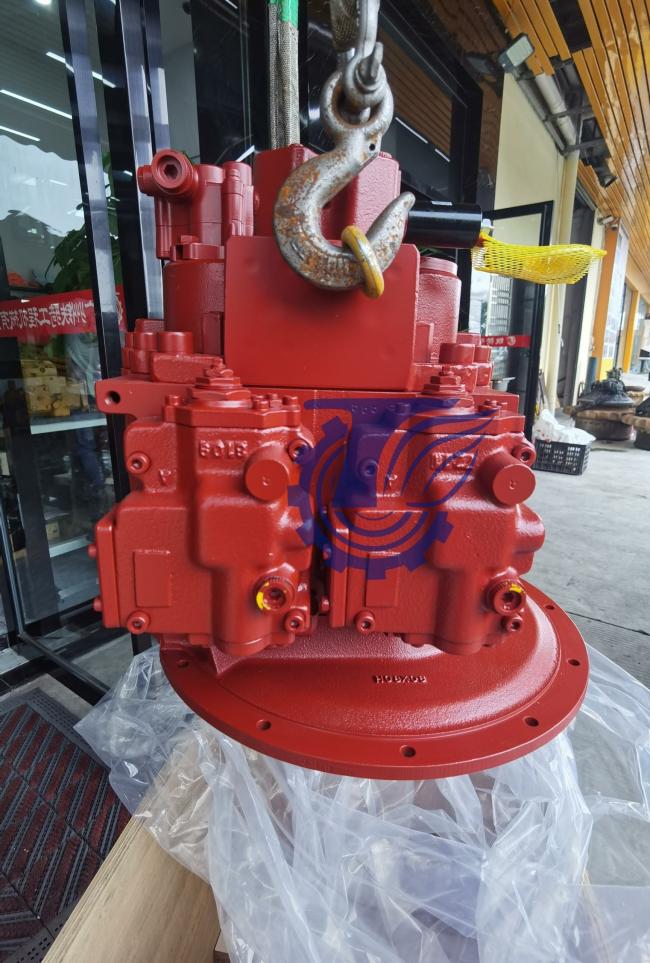

31Q6-15320 31Q6-15010 K3V112DT Hydraulic Main Pump Assy Bomba For Hyundai R210-9 R210 R210W-7 R200W-7 Excavator Parts
31Q6-15320 31Q6-15010 K3V112DT Hydraulic Main Pump Assy Bomba for Hyundai R210-9 R210 R210W-7 R200W-7 Excavator Parts Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 31Q6-15320 31Q6-15010 K3V112DT Hydraulic Main Pump Assy Bomba for Hyundai R210-9 R210 R210W-7 R200W-7 Excavator Parts Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQTQCAT | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

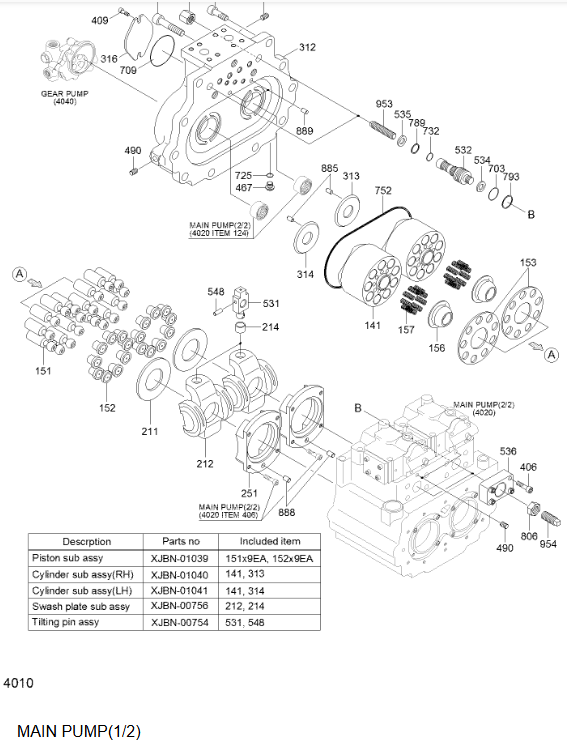

| Pos. | Part No | Qty | Parts name |
| *. | 31Q6-15320 | [1] | MAIN PUMP |
| *-1. | @ | [1] | MAIN PUMP UNIT |
| NS141. | XJBN-00067 | [2] | BLOCK-CYLINDER |
| NS151. | XJBN-01032 | [18] | PISTON |
| NS152. | XJBN-01214 | [18] | SHOE |
| 153 | XJBN-00945 | [2] | PLATE-SET |
| 156 | XJBN-00083 | [2] | BUSHING-SPHERICAL |
| 157 | XJBN-00084 | [18] | SPRING-CYLINDER |
| 211 | XJBN-00085 | [2] | PLATE-SHOE |
| NS212. | XJBN-00780 | [2] | PLATE-SWASH |
| NS214. | XJBN-00071 | [2] | BUSHING-TILTING |
| 251 | XJBN-00779 | [2] | SUPPORT |
| 312 | XJBN-01752 | [1] | COVER-VALVE |
| NS313. | XJBN-00738 | [1] | PLATE-VALVE,RH |
| NS314. | XJBN-00739 | [1] | PLATE-VALVE,LH |
| 316 | XJBN-00690 | [1] | COVER |
| 406 | XJBN-00355 | [8] | SCREW |
| 409 | XJBN-00696 | [2] | SCREW-HEX |
| 410 | XJBN-00775 | [12] | SCREW-HEX |
| 412 | XJBN-00774 | [1] | SCREW-HEX |
| 467 | XJBN-00265 | [2] | PLUG |
| 490 | XJBN-00032 | [4] | PLUG |
| 491 | XJBN-00234 | [9] | PLUG |
| NS531. | XJBN-00771 | [2] | PIN-TILTING |
| 532 | XJBN-00770 | [2] | PISTON-SERVO |
| 534 | XJBN-01124 | [2] | STOPPER(L) |
| 535 | XJBN-00093 | [2] | STOPPER(S) |
| 536 | XJBN-00768 | [2] | COVER-SERVO |
| NS548. | XJBN-00360 | [2] | PIN-FEED BACK |
| 703 | XJBN-00915 | [2] | O-RING |
| 709 | XJBN-00387 | [1] | O-RING |
| 725 | XJBN-00045 | [1] | O-RING |
| 732 | XJBN-00912 | [2] | O-RING |
| 752 | XJBN-00763 | [1] | PACKING-SEAT |
| 789 | XJBN-00099 | [2] | RING-BACK UP |
| 793 | XJBN-00761 | [2] | RING-BACK UP |
| 806 | XJBN-00101 | [2] | NUT-HEX |
| 807 | XJBN-00760 | [2] | NUT |
| 885 | XJBN-00103 | [2] | PIN-VALVE PLATE |
| 888 | XJBN-00712 | [1] | PIN |
| 889 | XJBN-01753 | [1] | PIN |
| 953 | XJBN-00757 | [2] | SCREW-SET |
| 954 | XJBN-00392 | [2] | SCREW-SET |
| *-2. | @ | [2] | REGULATOR ASSY |
| *-3. | @ | [1] | GEAR PUMP |
| *-4. | @ | [1] | EPPR VALVE |
| S. | XJBN-01039 | [2] | PISTON SUB ASSY |
| S. | XJBN-01040 | [1] | CYLINDER ASSY-RH |
| S. | XJBN-01041 | [1] | CYLINDER ASSY-LH |
| S. | XJBN-00756 | [2] | SWASH PLATE ASSY |
| S. | XJBN-00754 | [2] | TILTING PIN ASSY |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
