31N6-10050 31N6-10051 Hydraulic Pump Main Pump Assy Bomba for Hyundai R210-7 Excavator Parts Aftermarket Original
31N6-10050 31N6-10051 Hydraulic Pump Main Pump Assy Bomba for Hyundai R210-7 Excavator Parts Aftermarket Original
| PRODUCT DESCRIPTION | ||
| Model: 31N6-10050 31N6-10051 Hydraulic Pump Main Pump Assy Bomba for Hyundai R210-7 Excavator Parts Aftermarket Original | TQTQCATegory: Hydraulic Pump | |
| Brand: TQTQCAT | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

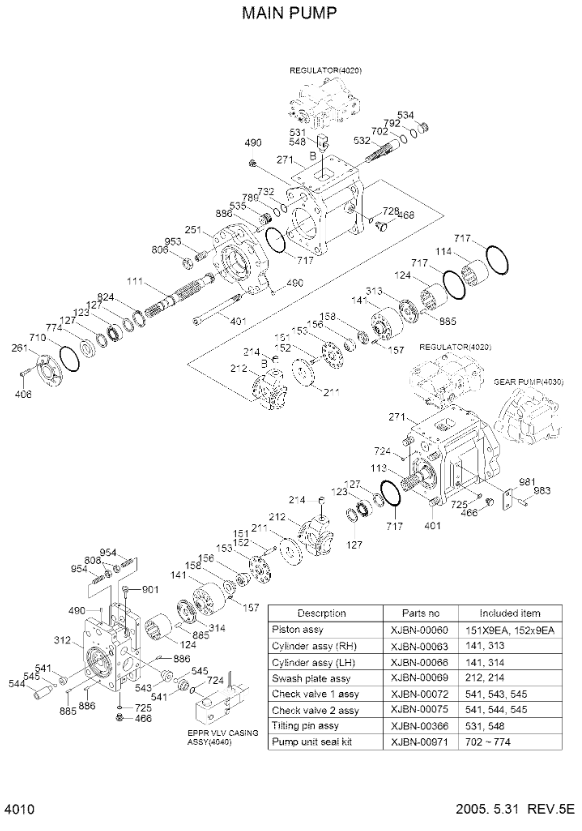

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31N6-10010 | [1] | MAIN PUMP ASSY | *-1,2,3,4 |
| *. | 31N6-10050 | [1] | MAIN PUMP ASSY | *-1,2,3,4 |
| *. | 31N6-10051 | [1] | MAIN PUMP ASSY | *-1,2,3,4 |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| 111 | XJBN-00077 | [1] | DRIVE SHAFT(F) | |
| 113 | XJBN-00078 | [1] | DRIVE SHAFT(R) | |
| 114 | XJBN-00351 | [1] | COUPLING-SPLINE | |
| 123 | XJBN-00079 | [2] | BEARING-ROLLER | |
| 123 | XJBN-00950 | [2] | BEARING-ROLLER | |
| 124 | XJBN-00080 | [2] | BEARING-NEEDLE | |
| 127 | XJBN-00081 | [4] | SPACER-BEARING | |
| NS141. | XJBN-00067 | [2] | BLOCK-CYLINDER | |
| NS151. | XJBN-00061 | [18] | PISTON | |
| NS152. | XJBN-00062 | [18] | SHOE | |
| *-11. | XJBN-01116 | [1] | SET PLATE KIT | INCL153,156,158 |
| 153 | XJBN-00082 | [2] | PLATE-SET | |
| 156 | XJBN-00353 | [2] | BUSHING-SPHERICAL | |
| 156 | XJBN-00083 | [2] | BUSHING-SPHERICAL | |
| 158 | XJBN-00354 | [2] | SPACER | |
| 157 | XJBN-00084 | [18] | SPRING-CYLINDER | |
| 211 | XJBN-00085 | [2] | PLATE-SHOE | |
| NS212. | XJBN-00070 | [2] | PLATE-SWASH | |
| S214. | XJBN-00071 | [2] | BUSHING-TILTING | |
| 251 | XJBN-00086 | [2] | SUPPORT | |
| 261 | XJBN-00087 | [1] | COVER(F)-SEAL | |
| 271 | XJBN-00088 | [2] | CASING-PUMP | |
| 312 | XJBN-00089 | [1] | BLOCK-VALVE | |
| S313. | XJBN-00065 | [1] | PLATE-VALVE(R) | |
| S314. | XJBN-00068 | [1] | PLATE-VALVE(L) | |
| 401 | XJBN-00090 | [8] | SCREW-HEX SOC HD | |
| 406 | XJBN-00355 | [4] | SCREW-HEX SOC HD | |
| 466 | XJBN-00356 | [2] | PLUG | |
| 468 | XJBN-00357 | [4] | PLUG | |
| 490 | XJBN-00032 | [18] | PLUG | |
| NS531. | XJBN-00358 | [2] | PIN-TILTING | |
| 532 | XJBN-00091 | [2] | PISTON-SERVO | |
| 534 | XJBN-00092 | [2] | STOPPER(L) | |
| 535 | XJBN-00093 | [2] | STOPPER(S) | |
| NS541. | XJBN-00073 | [4] | SEAT | |
| NS541. | XJBN-00859 | [4] | SEAT | |
| NS543. | XJBN-00074 | [2] | STOPPER 1 | |
| NS543. | XJBN-00860 | [2] | STOPPER | |
| NS544. | XJBN-00076 | [2] | STOPPER 2 | |
| NS544. | XJBN-00861 | [2] | STOPPER | |
| S545. | XJBN-00359 | [4] | BALL-STEEL | |
| NS548. | XJBN-00360 | [2] | PIN-FEED BACK | |
| K702. | XJBN-00918 | [2] | O-RING | |
| K710. | XJBN-00095 | [1] | O-RING | |
| K717. | XJBN-00096 | [4] | O-RING | |
| K724. | XJBN-00361 | [16] | O-RING | |
| K725. | XJBN-00362 | [4] | O-RING | |
| K728. | XJBN-00363 | [4] | O-RING | |
| K732. | XJBN-00912 | [2] | O-RING | |
| K774. | XJBN-00098 | [1] | SEAL-OIL | |
| 789 | XJBN-00099 | [2] | RING-BACK UP | |
| 792 | XJBN-00100 | [2] | BACK-UP RING | |
| 806 | XJBN-00101 | [2] | NUT | |
| 808 | XJBN-00364 | [2] | NUT | |
| 824 | XJBN-00102 | [2] | RING-SNAP | |
| 885 | XJBN-00103 | [2] | PIN-VALVE PLATE | |
| 886 | XJBN-00365 | [4] | PIN-SPRING | |
| 901 | XJBN-00104 | [2] | BOLT-EYE | |
| 953 | XJBN-00105 | [2] | SCREW-SET | |
| 954 | XJBN-00106 | [2] | SCREW-SET | |
| 981 | XJBN-00156 | [1] | NAME PLATE | |
| 981 | XJBN-00391 | [1] | NAME PLATE | |
| 983 | XJBN-00341 | [2] | PIN | |
| *-2. | @ | [1] | REGULATOR | SEE 4020 |
| *-3. | @ | [1] | GEAR PUMP | SEE 4030 |
| *-4. | @ | [1] | EPPR VALVE | SEE 4040 |
| 11 | XJBN-00060 | [2] | PISTON SUB ASSY | SEE ILLUST |
| 13 | XJBN-00063 | [1] | CYLINDER ASSY(RH) | SEE ILLUST |
| 14 | XJBN-00066 | [1] | CYLINDER ASSY(LH) | SEE ILLUST |
| 30 | XJBN-00069 | [2] | SWASH PLATE SUB ASSY | SEE ILLUST |
| 41 | XJBN-00072 | [2] | CHECK VALVE ASSY 1 | SEE ILLUST |
| 42 | XJBN-00075 | [2] | CHECK VALVE ASSY 2 | SEE ILLUST |
| 530 | XJBN-00366 | [2] | TILTING PIN ASSY | SEE ILLUST |
| K. | XJBN-00971 | [1] | PUMP UNIT SEAL KIT | SEE ILLUST |
