39QA-40102 38QB-40101 Hydraulic Travel Motor for Hyundai HX480L HX520L R450LC7 R480C9MH R500LC7 R520LC9 Excavator Parts Aftermarket High Quality Original
39QA-40102 38QB-40101 Hydraulic Travel Motor for Hyundai HX480L HX520L R450LC7 R480C9MH R500LC7 R520LC9 Excavator Parts Aftermarket High Quality Original
| PRODUCT DESCRIPTION | ||
| Model: 39QA-40102 38QB-40101 Hydraulic Travel Motor for Hyundai HX480L HX520L R450LC7 R480C9MH R500LC7 R520LC9 Excavator Parts Aftermarket High Quality Original | Ategory: Walking motor assembly | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

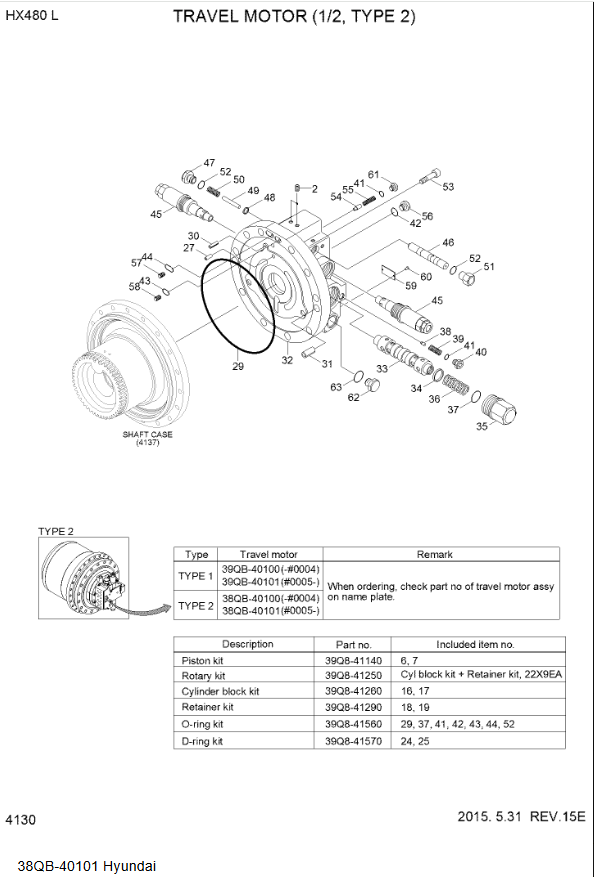

| Pos. | Part No | Qty | Parts name | Comments |
| *. | 38QB-40100 | [1] | TRAVEL MOTOR ASSY | |
| *. | 38QB-40101 | [1] | TRAVEL MOTOR ASSY | |
| *-1. | 38QB-41100 | [1] | TRAVEL MOTOR | |
| 2 | 39Q6-41120 | [14] | PLUG | |
| 27 | 39Q8-41410 | [1] | PIN-PARALLEL | |
| K29. | Y172-049004 | [1] | O-RING | |
| 30 | S471-800404 | [1] | PIN-SPRING | |
| 31 | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 32 | 39QB-41140 | [1] | COVER-REAR | |
| 33 | 39QB-41150 | [1] | MAIN SPOOL ASSY | |
| 34 | 39QB-41200 | [2] | SEAT-SPRING | |
| 35 | 39QB-41210 | [2] | PLUG | |
| 36 | 39Q6-41540 | [2] | SPRING | |
| K37. | S632-040004 | [2] | O-RING | |
| 38 | 39QB-41330 | [2] | RESTRICTOR | |
| 39 | 39Q8-41520 | [2] | SPRING | |
| 40 | 39Q6-41780 | [2] | PLUG | |
| K41. | S631-008004 | [5] | O-RING | |
| K42. | S631-011004 | [2] | O-RING | |
| K43. | S631-012004 | [1] | O-RING | |
| K44. | S631-016004 | [1] | O-RING | |
| 45 | 39QB-41220 | [2] | RELIEF VALVE ASSY | |
| 46 | 39Q8-41530 | [1] | SPOOL | |
| 47 | 39Q8-41540 | [1] | PLUG | |
| 48 | 39Q6-41710 | [1] | SEAT-SPRING | |
| 49 | 39Q6-41720 | [1] | PIN-PARALLEL | |
| 50 | 39Q6-41730 | [1] | SPRING | |
| 51 | 39Q6-41740 | [1] | CONNECTOR | |
| K52. | S631-014004 | [2] | O-RING | |
| 53 | S109-180556 | [10] | BOLT-SOCKET | |
| 54 | 39Q6-41760 | [3] | VALVE-CHECK | |
| 55 | 39Q6-41770 | [3] | SPRING | |
| 56 | 39Q6-41750 | [2] | PLUG | |
| 57 | 39Q6-41880 | [1] | RESTRICTOR | |
| 58 | 39Q6-41860 | [1] | RESTRICTOR | |
| 59 | 39QB-41320 | [1] | NAME PLATE | |
| 60 | 39Q6-41800 | [2] | RIVET | |
| 61 | 39QB-41340 | [3] | PLUG | |
| 62 | P220-110104 | [2] | PLUG-HEX | |
| 63 | S631-018004 | [2] | O-RING | |
| *-2. | @ | [1] | TRAVEL REDUCTION GEAR | SEE 4140 |
| K. | 39Q8-41140 | [1] | PLUG KIT | SEE ILLUST |
| K. | 39Q8-41250 | [1] | ROTARY KIT | SEE ILLUST |
| K. | 39Q8-41260 | [1] | CYLINDER BLOCK KIT | SEE ILLUST |
| K. | 39Q8-41290 | [1] | RETAINER KIT | SEE ILLUST |
| K. | 39Q8-41560 | [1] | O-RING KIT | SEE ILLUST |
| K. | 39Q8-41570 | [1] | D-RING KIT | SEE ILLUST |
