31NA-40020 Hydraulic Travel Motor for Hyundai R360LC-7 Excavator Parts Aftermarket High Quality Original
31NA-40020 Hydraulic Travel Motor for Hyundai R360LC-7 Excavator Parts Aftermarket High Quality Original
| PRODUCT DESCRIPTION | ||
| Model: 31NA-40020 Hydraulic Travel Motor for Hyundai R360LC-7 Excavator Parts Aftermarket High Quality Original | Ategory: Walking motor assembly | |
| Brand:TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||

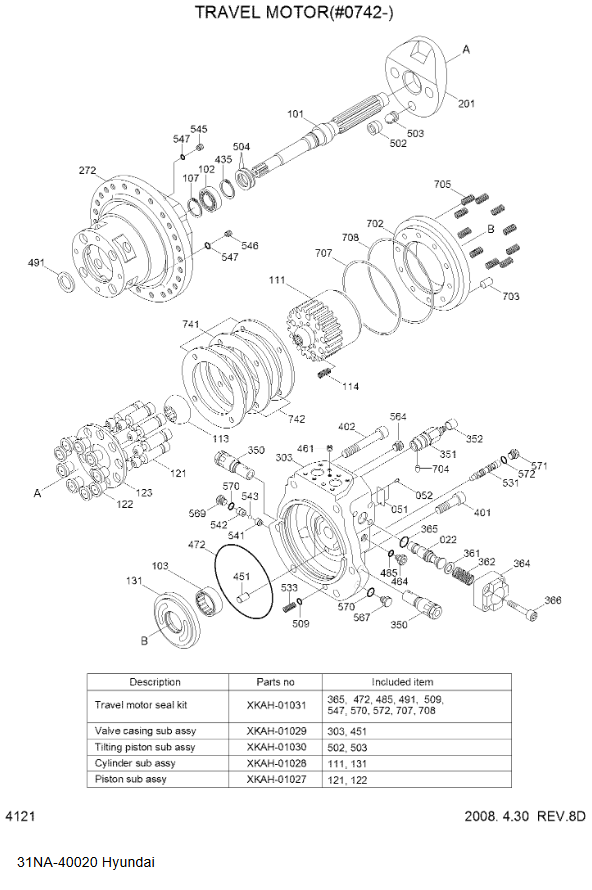

| Pos. | Part No | Qty | Parts name |
| *. | 31NA-40020 | [1] | TRAVEL MOTOR |
| *. | 31NA-40020BG | [1] | TRAVEL MOTOR |
| N*-1. | XKAH-00939 | [1] | MOTOR ASSY |
| 22 | XKAH-00940 | [1] | SPOOL-CBV |
| 101 | XKAH-00941 | [1] | SHAFT-DRIVE |
| 102 | XKAH-00942 | [1] | BEARING-ROLLER |
| 103 | XKAH-00943 | [1] | BEARING-NEEDLE |
| 107 | XKAH-00944 | [1] | RING-SNAP |
| S111. | XKAH-00945 | [1] | BLOCK-CYLINDER |
| 113 | XKAH-00946 | [1] | BUSHING-SPHERICAL |
| 114 | XKAH-00947 | [9] | SPRING-CYL |
| NS121. | XKAH-00948 | [9] | PISTON |
| NS122. | XKAH-00949 | [9] | SHOE |
| 123 | XKAH-00950 | [1] | PLATE-SET |
| S131. | XKAH-00951 | [1] | PLATE-VALVE |
| 201 | XKAH-00952 | [1] | PLATE-SWASH |
| S272. | XKAH-00953 | [1] | CASING-SHAFT |
| NS303. | XKAH-00954 | [1] | CASING A-VALVE |
| 350 | XKAH-00955 | [2] | VALVE-RELIEF |
| 351 | XKAH-00956 | [2] | VALVE-REDUCING |
| 352 | XKAH-00957 | [2] | COVER |
| 361 | XKAH-00958 | [2] | WASHER |
| 362 | XKAH-00959 | [2] | SPRING-C/B |
| 364 | XKAH-00960 | [2] | COVER-C/B |
| K365. | XKAH-00961 | [2] | O-RING |
| 366 | XKAH-00962 | [8] | BOLT-SOCKET |
| 401 | XKAH-00963 | [2] | BOLT-SOCKET |
| 402 | XKAH-00964 | [4] | BOLT-SOCKET |
| 435 | XKAH-00965 | [1] | RING-SNAP |
| S451. | XKAH-00187 | [1] | PIN-VALVE PLATE |
| 461 | XKAH-00208 | [14] | PLUG-PT |
| 464 | XKAH-00966 | [2] | PLUG-VP |
| K472. | XKAH-00967 | [1] | O-RING |
| K485. | XKAH-00035 | [2] | O-RING |
| K491. | XKAH-00968 | [1] | SEAL-OIL |
| NS502. | XKAH-00969 | [1] | PISTON |
| NS503. | XKAH-00153 | [1] | SHOE |
| 504 | XKAH-00970 | [2] | BALL-PIVOT |
| K509. | XKAH-00035 | [1] | O-RING |
| 531 | XKAH-00971 | [1] | SPOOL-TILTING |
| 533 | XKAH-00972 | [1] | SPRING-TILTING |
| 541 | XKAH-00973 | [1] | SEAT-2A |
| 542 | XKAH-00974 | [1] | STOPPER |
| 543 | XKAH-00199 | [1] | BALL-STEEL |
| 545 | XKAH-00975 | [1] | ORIFICE |
| 546 | XKAH-00976 | [1] | ORIFICE |
| K547. | XKAH-00261 | [2] | O-RING |
| 564 | XKAH-00977 | [2] | PLUG |
| 567 | XKAH-00136 | [4] | PLUG-VP |
| 569 | XKAH-00710 | [2] | PLUG-RO |
| K570. | XKAH-00052 | [6] | O-RING |
| 571 | XKAH-00978 | [1] | PLUG-RO |
| K572. | XKAH-00053 | [1] | O-RING |
| 702 | XKAH-00979 | [1] | PISTON-BRAKE |
| 703 | XKAH-00980 | [1] | ORIFICE |
| 704 | XKAH-00981 | [1] | ORIFICE |
| 705 | XKAH-00127 | [14] | SPRING-BRAKE |
| K707. | XKAH-00133 | [1] | O-RING |
| K708. | XKAH-00982 | [1] | O-RING |
| 741 | XKAH-00983 | [1] | PLATE-SEPARATION |
| 742 | XKAH-00984 | [2] | PLATE-FRICTION |
| N801. | XKAH-00985 | [1] | NAME PLATE |
| N802. | XKAH-00986 | [2] | SCREW-RIVET |
| *-2. | @ | [1] | T/REDUCTION GEAR |
| K. | XKAH-01031 | [1] | SUB ASSY-SEAL |
| 11 | XKAH-01030 | [1] | SUB ASSY-TILTING PISTON |
| 12 | XKAH-01029 | [1] | SUB ASSY-VALVE CASING |
| 13 | XKAH-01028 | [1] | SUB ASSY-CYLINDER |
| 14 | XKAH-01027 | [1] | SUB ASSY-PISTON |
Why choose us?
1, Do you still find a company which can provide one-stop solution to your problem? Why not choose us?
2, Do you still find a company which could provide high-quality products with comparative price? How about choose us?
3, Do you still find a company which is glad to to take good service to make you feel at home? Why do not take us into consideration?
4, Do you have a high requirements for products, ant hope it could have large stock, short delivery time and long warranty period? Welcome to our company and choose products that meet your needs.
5, As a professional company in this industry, we have accurate data to follow the excavator brand part number inquiry, guarantees the product’s correct rate.You can trust us because we can find parts for nearly all your needs.
