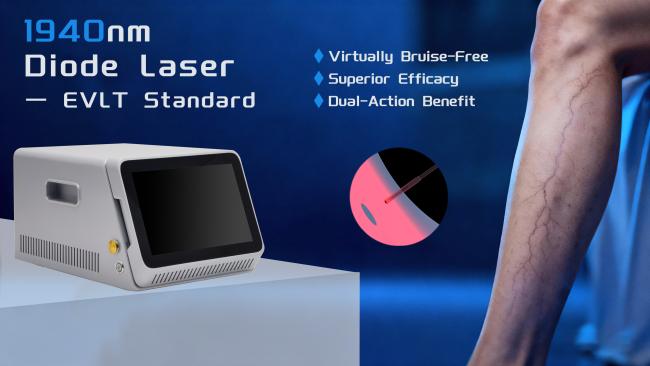

EVLT 1940nm Laser System for Varicose Vein Ablation & Clinical Vascular Therapy
1940nm EVLT Diode Laser for Varicose Vein Treatment & Endovenous Thermal Ablation

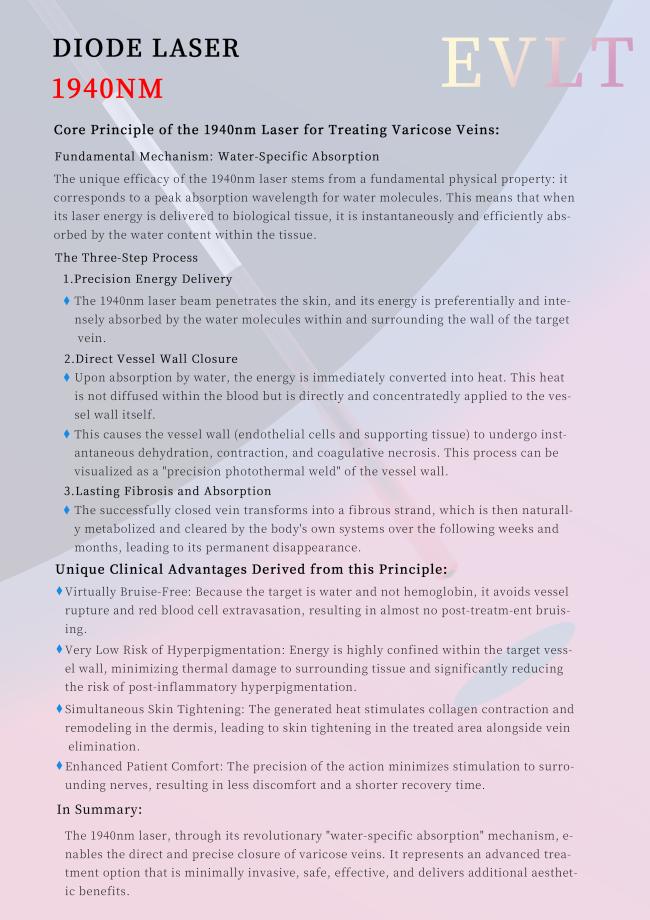

The exceptional efficacy of the 1940 nm laser is rooted in its unique physical characteristics. This wavelength aligns with the peak absorption band of water molecules, enabling highly efficient and rapid energy absorption within biological tissues. When the laser is delivered into the target area, its energy is instantly absorbed by the tissue's intracellular and extracellular water content, ensuring precise thermal action with superior clinical selectivity and minimal collateral damage.
The Three-Step Mechanism of Action
1. Precision Energy Delivery
The 1940 nm laser beam penetrates the skin and is preferentially absorbed by intracellular and extracellular water within the target vein wall. This selective absorption ensures high photothermal efficiency with minimal dispersion into surrounding structures.
2. Direct Vessel Wall Closure
Once absorbed, the laser energy is rapidly converted into heat. Unlike wavelength modalities targeting hemoglobin, thermal energy is concentrated directly on the venous wall rather than diffusing through the blood column. This results in instantaneous dehydration, collagen contraction, and coagulative necrosis of endothelial and supportive layers-effectively creating a "precision photothermal weld" that occludes the vessel.
3. Progressive Fibrosis and Clearance
The occluded vein subsequently undergoes fibrosis, gradually transforming into a fibrous cord that is naturally resorbed by physiological metabolic processes over the following weeks to months, leading to permanent resolution.
Key Clinical Advantages
• Virtually Bruise-Free
Since the primary chromophore is water rather than hemoglobin, vessel rupture and erythrocyte extravasation are minimized, resulting in little to no post-treatment bruising.
• Lower Risk of Hyperpigmentation
Energy remains confined within the vessel wall, reducing thermal diffusion into adjacent tissues and significantly lowering the incidence of post-inflammatory hyperpigmentation.
• Concurrent Skin Tightening
Localized thermal stimulation promotes collagen denaturation and remodeling in the dermis, providing a secondary benefit of skin tightening in the treated area.
• Enhanced Patient Comfort
The selective and localized action reduces stimulation of perivascular nerves, improving comfort during the procedure and shortening recovery time.
| Place of Origin | China |
| Brand Name | GOMECY |
| Output | Fiber-optic coupling |
| Laser Wavelength | 1940nm+635nm |
| Output Power | 8W/12W/15W or OEM |
| Pulse width |
15ms-60ms |
| Language | English or OEM |
| Frequency | 1~9Hz |
1. What is EVLT?
Endovenous Laser Treatment (EVLT) is a minimally invasive laser procedure in which a thin optical fiber is introduced into the diseased vein under ultrasound guidance. Laser energy is delivered along the vein, causing controlled thermal injury to the vessel wall. This leads to vein closure and subsequent absorption by the body, effectively treating varicose veins and other venous disorders.
2. What conditions does EVLT treat?
EVLT is commonly used to treat:
-
Lower extremity varicose veins
-
Telangiectasias (spider veins)
-
Venous reflux insufficiency
-
Chronic venous insufficiency (CVI)
-
Selected hemangiomas and abnormally dilated vascular lesions
3. What wavelengths are used in EVLT?
Different laser wavelengths target different chromophores:
-
810 nm / 940 nm: Primarily absorbed by hemoglobin
-
980 nm: Dual absorption of hemoglobin and water
-
1470 nm: Mainly water-absorptive, offering reduced thermal diffusion and gentler treatment
-
1940 nm: Even higher water absorption peak, providing improved vein wall targeting, reduced collateral tissue damage, and faster recovery
