Waterproof M16 2 Pin Circular Quick Lock Connector Male To Female 300V Rated
M16 10A 2Pin Waterproof Circular Connector,Quick Release Male To Female Wire Connector
Description of Industrial Waterproof Circular Connector
This model connectors is specialized for various power applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.Both screw terminals and soldering terminals option available.
10A Stable Power Transmission: Supports continuous 10A current output, ideal for medium-load power supply scenarios, ensuring reliable performance without voltage drop during long-term operation.
Durable & Corrosion-Resistant: Crafted from high-grade materials, the connector features excellent mechanical strength, corrosion resistance, and resistance to temperature fluctuations—extending service life in harsh working conditions.
Main Feature
- Push lock quick easy release system

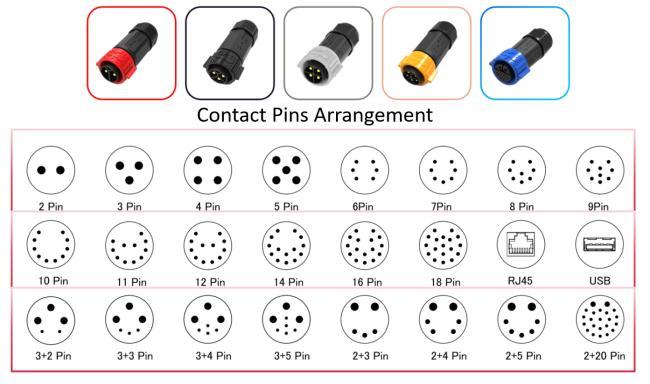

- Multi-core configurations: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin on offer
- Field-installable variants: both wire-to-wire and wire-to-board configurations
- High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
- Cable assembly services provided – customization is welcome
- OEM/ODM partnerships are warmly accepted
| Electrical Parameters | |
| Number of Poles | 2Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Production Dimension
More Technical Details
FAQ
Q1:How do I place an order? What is the process?
A1:The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed;
3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:How to choose the suitable connector?
A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
