3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67
3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67,Quick Locking
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Quick Details of 12Pin Connector Male female
- 3+13 Pin Functional Partition, No Interference Between Power and Signal: 3 pins independently carry the main power, and 13 pins with high-density layout support multi-channel parallel data transmission (can be allocated to various sensors such as temperature and humidity, pressure, and displacement). Physical isolation + independent shielding design completely avoids the interference of power fluctuations on data signals, and the data transmission accuracy reaches 99.9%.
- Quick-Lock Precise Docking, Efficient Outdoor Construction: The foolproof design of tapered guide post avoids equipment damage caused by pin misinsertion. The elastic locking tongue locks in one second. A single person can complete the installation when working at high altitudes or in narrow spaces outdoors, no tools are needed, and the construction efficiency is increased by more than 3 times.
- IP67 Full-Scenario Protection, Adapt to Extreme Outdoor: Double fluororubber sealing + UV-resistant housing can resist heavy rain, sand and dust, high-temperature exposure and low-temperature freezing, and work continuously without failure in unshielded outdoor environments, meeting the harsh scenario needs of photovoltaic power stations, mine monitoring, outdoor cultural and tourism facilities, etc.
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Product Type Features | |
| Connector System | Cable-to-Cable |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Configuration Features | |
| Number of Positions | 3+13 |
| Number of Signal Positions | 13 |
| Contacts Preloaded | Yes |
| Electrical Characteristics | |
| Operating Voltage (VAC) | 600V max. |
| Operating Voltage (VDC) | 600V max. |
| Body Features | |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Contact Features | |
| Contact Current Rating (Max) (A) . | 15A max. |
| Circular Connector Contact Type | Pin-Socket |
| Mechanical Attachment | |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Dimensions | |
| Wire Size (AWG) | 20AWG,18AWG,16AWG,14AWG, |
| Usage Conditions | |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Industry Standards | |
| UL Flammability Rating | UL 94V-0 |

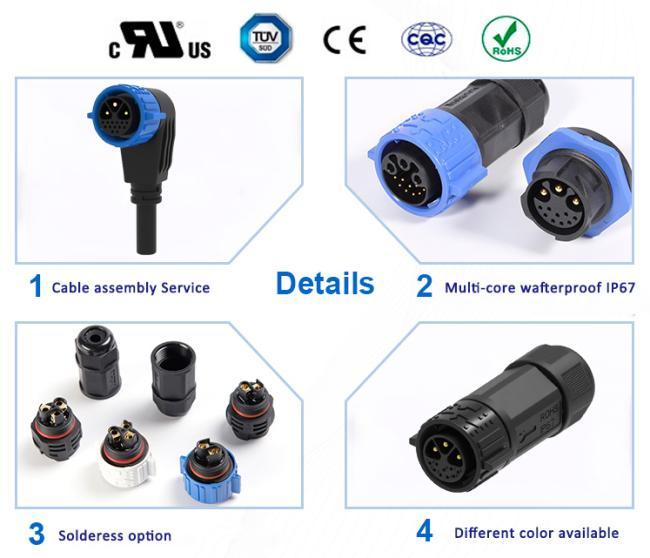

More Technical Details
FAQ
Q1:What is rated voltage?
A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q2:Who is responsible for customs clearance? Do you provide necessary documents?
A2:We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
Q3:Do you accept other payment currencies besides USD?
A3: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
