2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket
2 Pin Circular Power Connector M16 10A 300V Waterproof Male Female Plug Socket
Description of Industrial Waterproof Circular Connector
Main Feature
- Push lock quick easy release system
- Multi-core can be choosen: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
- Field-installable variants: both wire-to-wire and wire-to-board configurations
- High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
- Cable assembly services provided – customization is welcome
- OEM/ODM partnerships are warmly accepted
| Electrical Parameters | |
| Number of Poles | 2Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery

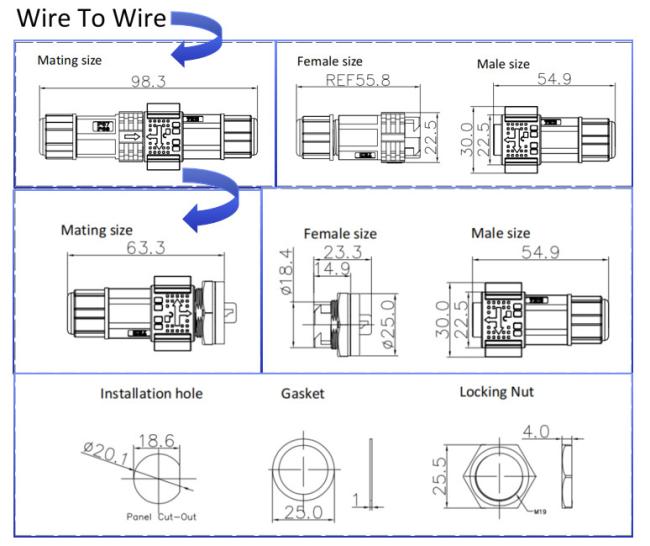

Production Dimension
More Technical Details
FAQ
Q1:How do I place an order? What is the process?
A1:The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed;
3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:What shipping methods do you offer? How long is the delivery time?
A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
