M16 8Pin Waterproof Wire Splice Connector IP67 Brass Gold Plated Wire To Wire For Signal
8 Gauge Low Voltage Wire Connectors Waterproof IP67
Quick Details of 8Pin waterproof connector
-
Core Specifications: 8-pin design, compatible with M16 standard size, adopting Wire To Wire connection structure, specially tailored for signal transmission scenarios
-
Material & Craftsmanship: The conductor is made of brass gold-plated material, which has excellent electrical conductivity, anti-oxidation and corrosion resistance, effectively reducing signal transmission loss
-
Protection Level: Meets IP67 high protection standard, enabling complete dustproof and temporary water immersion protection, suitable for complex and harsh working environments such as outdoors and humidity
-
Transmission Advantages: Focus on signal transmission needs, with stable contact, low impedance and small signal attenuation, which can ensure the clarity and continuity of signal transmission of various equipment
-
Application Scenarios: Widely used in industrial automation signal lines, security monitoring signal transmission, outdoor electronic equipment signal docking and other scenarios requiring waterproof and stable signal connection
| Product Type Features | |
| Connector System | Cable-to-Cable |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, socket |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Electrical Characteristics | |
| Number of Poles | 8 |
| Current Rating | 5A max. |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60 s. |
Main Features
- Push lock quick release system

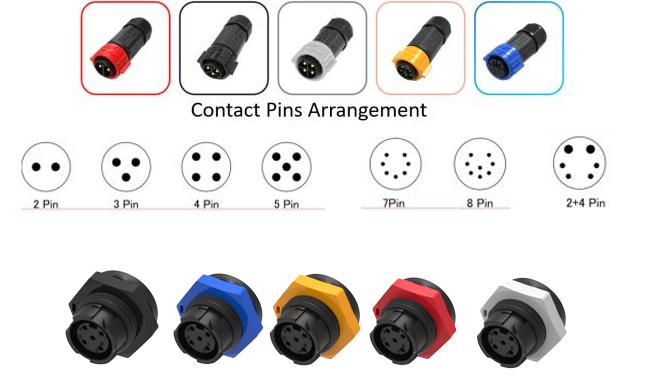

- Multic-core options: 2Pin,3Pin,4Pin,5Pin,7Pin,8Pin,2+4Pin for Power
- Field assembly version:both wire to wire and wire to board options
- Current rated 5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Body Features | |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Usage Conditions | |
| Operating Temperature Range (°C) | -40 ~+105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Operation/Application | |
| Durability Rating (Cycles) | 500 |
| Industry Standards | |
| UL Flammability Rating | UL 94V-0 |
Production Dimension
More Technical Details
FAQ
Q1:Are your products certified? What certifications do you have?
A1:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q2:Are you a factory or trading company?
A2: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
Q3:What is your Minimum Order Quantity (MOQ)?
A3: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
