20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
5 Pin Circular M19 PA66 300V Waterproof Connector
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Quick Description
-
Product Positioning: Focus on industrial multi-channel power connection needs, adopts M19 standard circular interface design, 5Pin dedicated power pin layout, 20A high current carrying specification, paired with PA66 weather-resistant shell, specially built for stable power supply connection in complex industrial scenarios
-

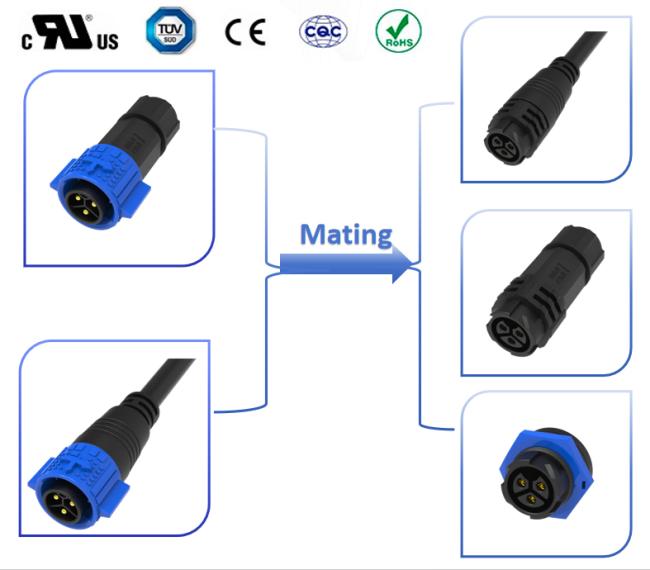

Core Configuration: Interface specification M19, 5Pin power-dedicated pin core, rated current 20A, supports male-female quick pairing, suitable for industrial medium and low voltage power systems (usually compatible with 300V and below), meeting the parallel power supply needs of multi-module equipment
-
Material & Protection: The shell is made of PA66 reinforced engineering plastic, with excellent flame retardancy, aging resistance and impact strength; built-in dual waterproof sealing structure, which can effectively isolate rainwater, industrial dust and moisture, ensuring power supply safety in harsh environments
-
Power Transmission Advantages: The pin core adopts high-conductivity brass gold-plating process, with extremely low contact resistance and oxidation resistance, 20A high current transmission is stable without heating; 5Pin independent layout can realize separate transmission of multiple groups of power , avoiding interference, suitable for long-term continuous operation of industrial equipment
-
Application Scenarios: Widely used in industrial automation multi-module equipment power supply, outdoor industrial control power distribution, new energy industrial energy storage facilities, heavy machinery electrical systems, smart factory wiring projects and other industrial scenarios requiring multi-channel power connection
| Electrical Parameters | |
| Number of Poles | 5Pin |
| Current Rating | 20A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 15A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Design Sketch
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: What shipping methods do you offer? How long is the delivery time?
A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
