China 14Pin Waterproof Male Female Connector M19 Low Voltage Circular Connectors for sale

14Pin Waterproof Male Female Connector M19 Low Voltage Circular Connectors

Price Negotiable

Price: Negotiation

MOQ: Negotiation

Delivery Time: 3~6working days

Brand: Ulinkcon

Product Description

14 Pin Male Female Connector M19 300V Connectors Waterproof

Quick Description

Core Specification Parameters: Features a 14Pin pin design to meet multi-channel signal and power transmission requirements; adopts an M19 circular interface that complies with industry standard dimensions, offering high plug-in precision. It is compatible with cables and equipment interfaces of matching specifications, enabling easy and efficient installation.

Excellent Waterproof Performance: Boasts a professional IP67 waterproof rating with a sealed housing design. It can effectively resist erosion from harsh environments such as rainwater, moisture, and dust, guaranteeing stable operation of the connector in humid, outdoor, and other complex scenarios, and extending its service life.

Low-Voltage Adaptation: Designed exclusively for low-voltage circuits, it offers a wide voltage adaptation range and stable current-carrying capacity. It can safely and reliably achieve power and signal transmission between low-voltage devices, avoiding high-voltage risks, and is suitable for various low-voltage electronic equipment.

High-Quality Material & Craftsmanship: The housing is crafted from high-strength engineering plastic, ensuring wear resistance, impact resistance, and corrosion resistance; the pins are gold-plated, which reduces contact resistance, enhances electrical conductivity and oxidation resistance, and guarantees stable and durable connections.

Wide Application Scenarios: Ideal for signal and power connection in a wide range of low-voltage electronic devices, including outdoor lighting, security monitoring, smart homes, industrial control, medical equipment, automotive electronics, and new energy equipment. It is particularly suitable for outdoor or humid environments requiring waterproof and dustproof protection.

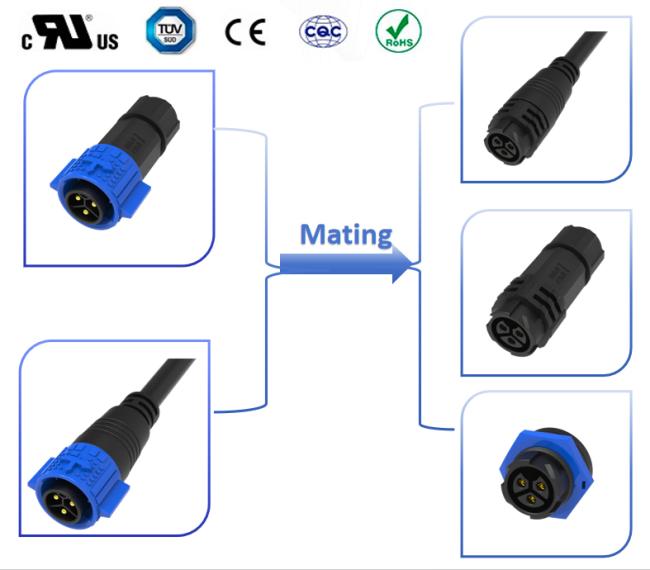

Convenient Connection Design: Adopts a male-female plug-in design that ensures smooth plugging and unplugging, secure connection, and resistance to dislodgement. Some models support buckle-type or thread-type fixing, further enhancing connection stability and facilitating quick installation, disassembly, and maintenance.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	14Pin
Current Rating	5 Amax.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

3. Q: What payment methods do you accept?

A:We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
