3+5 Pin M19 Male Female Cable Connectors 300V Waterproof Quick Disconnect Connectors
15A Waterproof Data Cable Connector 3 +5 Pin M19 IP67 Circular Connectors
Quick Description
-
Product Overview: A professional-grade connectivity option designed for male-female paired cable connections, featuring 3+5 pin configuration, M19 standard size, and 300V rated voltage. Specialized in quick disconnect functionality, it realizes efficient assembly and disassembly while ensuring reliable power and signal transmission.
-
Core Specifications: 3 power pins + 5 data pins separated layout; rated voltage 300V,industrial low-voltage application scenarios; supports quick disconnect operation, no tools required for pairing/unpairing; IP67 waterproof and dustproof rating, suitable for harsh indoor/outdoor environments.
-
Key Advantages: Male-female precise pairing design avoids misinsertion; quick disconnect mechanism improves maintenance and replacement efficiency; high-quality insulating material ensures 300V voltage stability and safety; reinforced housing with sealing structure resists water splashes and dust intrusion.
-
Application Scenarios: Widely used in industrial control systems, outdoor lighting equipment, low-voltage power distribution devices, and electronic equipment requiring frequent disconnection, perfectly matching the demand for quick and stable connection in 300V low-voltage scenarios.
| Electrical Parameters | |
| Number of Poles | 3+5Pin |
| Current Rating | 15A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
Main Features
- Push lock quick release system

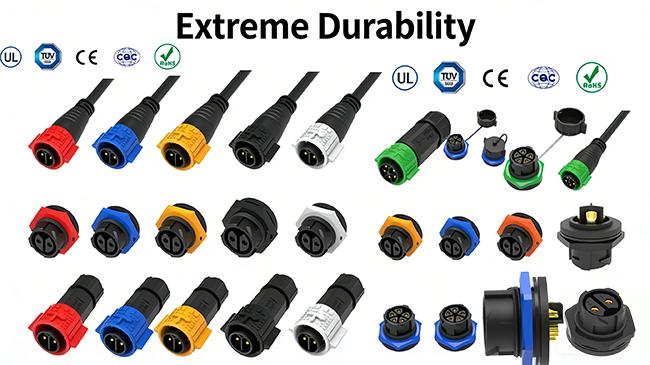

- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Design Sketch
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: Do you accept other payment currencies besides USD?
A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
