M16 3 Pin Connector Male And Female 10A 300V Push Waterproof Cable Connector
Quick Release M16 3Pin Waterproof Cable To Cable Connector.
Description of Industrial Waterproof Circular Connector
-
Core Parameters: Adopts M16 standard interface, 3-pin configuration, rated current 10A, rated voltage 300V, suitable for medium and high voltage power transmission scenarios; equipped with push-type connection structure for convenient operation, and complies with relevant safety specifications for reliable use
-

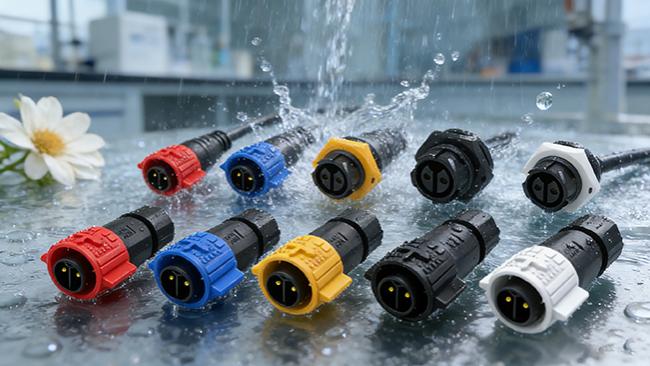

Waterproof Performance: With professional waterproof design, it can effectively resist the erosion of rainwater and humid environment, suitable for power connection needs outdoors and in water-rich environments, ensuring transmission stability under harsh conditions
-
Structural Advantages: Male and female plugs have precise push-type docking, firm and tight connection, excellent anti-vibration and anti-fall performance. Combined with smooth plugging feel, it greatly improves installation and maintenance efficiency, ensuring continuous and stable power transmission
-
Application Scenarios: Widely used in power connection of industrial automation equipment, power supply of outdoor instruments and meters, power transmission of security monitoring systems, power supply of new energy auxiliary equipment and other scenarios, providing reliable connection support for the stable operation of various medium and high voltage equipment
Main Feature
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin, available
- Field assembly version:both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 10A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Electrical Parameters | |
| Number of Poles | 3Pin waterproof connector |
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Production Dimension
