M16 Waterproof 7 Pin Connector Low Voltage Automotive Brass Gold-Plated Connectors
M16 Male Female 7 Pin Waterproof Automotive Connectors For Low Power Signal
Main Features
- Push lock quick release system

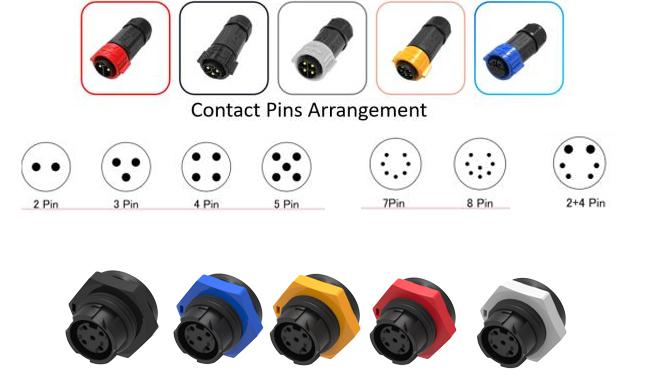

- Multic-core options: 2Pin,3Pin,4Pin,5Pin ,7Pin,8Pin,2+4Pin
- Field assembly version:wire to wire / wire to board
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Quick Description
-
Core Parameters & Certification: This connector features an M16 form factor with a 7-pin configuration and a housing made of PA66 engineering plastic. CE-certified, it fully complies with low-voltage equipment safety standards, boasting a rated operating voltage of 60V and a rated current of 5A, specifically engineered as a dedicated connection component for low-voltage data cables
-
Core Data Transmission Performance: The 7-pin contacts are constructed from high-purity copper alloy with a gold-plated finish, which significantly reduces data transmission loss. It can stably transmit various low-voltage data signals (such as sensor data and control command data), effectively preventing packet loss or delay and ensuring complete signal transmission
-
Protection & Structural Advantages: It achieves IP67 waterproof and dustproof rating, completely isolating rainwater, moist water vapor and environmental dust through the dual protection of a professional sealing rubber ring and push locking structure. The male-female quick-plug design meets the efficient needs of wiring and maintenance, while it also has excellent anti-electromagnetic interference capability, which can resist radiation interference from surrounding electrical appliances and avoid data crosstalk
-
Application Scenarios: Its core advantages focus on data transmission stability and low-voltage safety, making it suitable for complex environments such as outdoor and humid areas. Widely used in various low-voltage data transmission scenarios, it provides reliable connection guarantee for data communication systems and perfectly matches the transmission needs of low-voltage data cables
| Electrical Parameters | |
| Number of Poles | 7Pin |
| Current Rating | 5A max. |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60 s. |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
