M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
5~8 working days
Brand:
Ulinkcon
Product Description
M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
Product Overview
M16 8 Pin Waterproof Connector 5A IP67 Quick Release Male Female Connector For Signal
Quick Details of 8Pin Waterproof Connector
This product is an M16-sized 8-pin round connector designed for cable-to-board connections, providing a waterproof solution customized for signal transmission in industrial scenarios. Featuring a standard M16 circular structure with precise 8-pin layout, it efficiently adapts to signal docking needs between cables and circuit boards in industrial equipment, ensuring independent and stable transmission of multi-channel signals.
Technical Specifications
| Product Type Features | Specifications |
|---|---|
| Connector System | Cable-to-Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Socket |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Electrical Characteristics | Specifications |
|---|---|
| Number of Poles | 8 |
| Current Rating | 5A max. |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60 s. |
| Body Features | Specifications |
|---|---|
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Usage Conditions | Specifications |
|---|---|
| Operating Temperature Range (°C) | -40 ~ +105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Durability Rating (Cycles) | 500 |
| UL Flammability Rating | UL 94V-0 |
Main Features
- Push lock quick release system

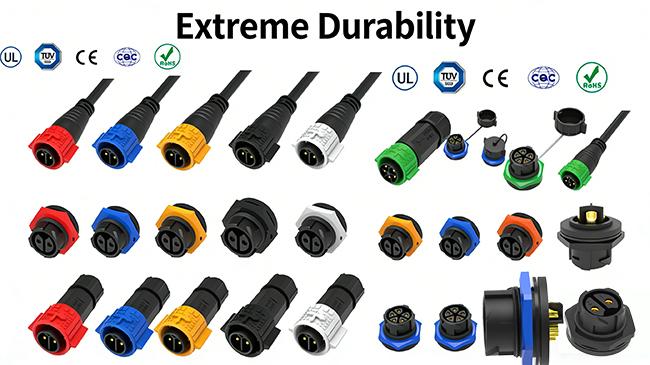

- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin
- Field assembly version: both wire to wire and wire to board options
- Current rated 5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application Industries
- Communications Application
- Product coding machines
- Inventory product coding
- Inkjet systems
- Solar System
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Communications equipment
- Heavy machinery
Production Dimension
More Technical Details
Frequently Asked Questions
Q1: Who is responsible for customs clearance? Do you provide necessary documents?
A1: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
Q2: Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3: What is your Minimum Order Quantity (MOQ)?
A3: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
