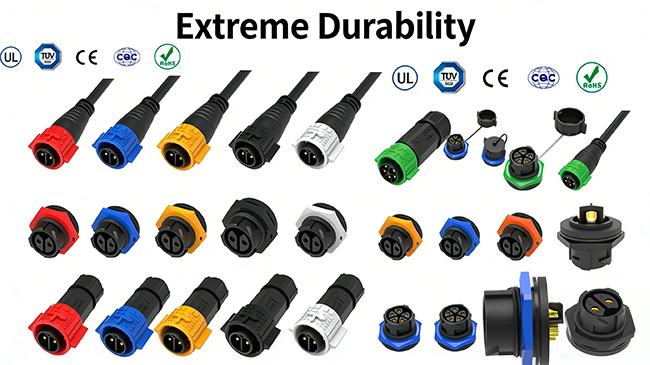

50A M25 2 Pole Waterproof Connector Industrial Quality Power Quick Connectors
M25 2 Pin Waterproof DC Power Connector 50A Male To Female Connectors
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
- Field assembly version:both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 50A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of 2Pin waterproof Connector
1. Core Parameters
-
Interface Specification: M25 standard circular interface, 2 Pole configuration, specifically designed for power transmission scenarios
-
Rated Current: 50A industrial-grade specification, with strong power-bearing capacity, accurately matching high-current power supply scenarios
-
Connection Method: Adopts quick-connect structure, simple and convenient to operate, meeting the high-efficiency installation needs in industrial fields
-
Core Attribute: Equipped with a waterproof level suitable for harsh industrial environments, building a solid industrial-grade quality defense line
2. Product Features
-
Industrial-Grade Reliable Quality: Selects high-wear and anti-aging high-quality materials, capable of long-term stable adaptation to complex industrial working conditions
-
Convenient & Efficient Connection: Adopts quick plug-in structure, tool-free operation, significantly enhancing installation and later maintenance efficiency
-
Strong Waterproof Protection: Integrated sealed design, effectively isolating moisture and dust erosion, ensuring stable and fluctuation-free high-current transmission
-
Stable Power Transmission: 2 Pole exclusive power transmission design, with extremely small contact resistance, greatly reducing power loss
3. Application Scenarios
-
Suitable for power supply needs of industrial equipment, widely used in core industrial scenarios such as industrial machinery and production line equipment
-
Can meet various high-current power connection needs such as outdoor industrial facilities and new energy equipment auxiliary power supply
-
Can work stably in harsh industrial environments such as humidity and dust, adapting to power transmission under complex working conditions
4. Custom Services
-
Provides industrial-grade cable assembly customization services, which can be accurately matched according to actual wire diameters and installation scenarios
-
For customization, detailed cable specification parameters need to be provided, and a professional team will provide exclusive adaptation solutions
| Electrical Parameters | |
| Number of Poles | 2Pin waterproof connector |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Production Dimension
More Technical Details
FAQ
Q1:Are your products certified? What certifications do you have?
A1:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q2:How many materials you can provide?
A2: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
Q3:How can I get samples?
A3: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
