M25 Male Female Panel Mount Connector Gold Plated 3+9 Pin Waterproof Connector
Multi Pin Connector Types Of 3+9 Pin M25 Outdoor Waterproof Connector

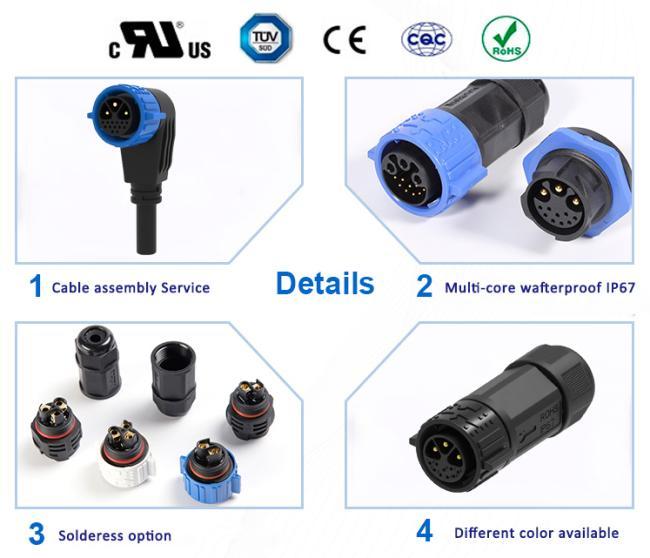

Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
- Field assembly version:both wire to wire and wire to board options
- Current rated 30A+5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Details of 6Pin Connector Male female
1. Key Specifications
-
Core Craftsmanship: Gold-plated terminal design enhances electrical conductivity and anti-oxidation performance, prolonging the product's service life
-
Interface Details: M25 dimension with 3+9 Pin multi-pin configuration, enabling Male-Female mating and compatible with Panel Mount applications
-
Electrical Ratings: 30A+5A rated current , ideally suited for power supply and signal transmission requirements of medium-power devices
-
Protective Performance: Waterproof construction ensures reliable operation in harsh outdoor environments, effectively resisting humidity and dust
2. Core Product Advantages
-
Gold-Plated Terminal Benefits: Minimal contact resistance ensures efficient and stable electrical transmission, with outstanding anti-oxidation and corrosion resistance
-
Easy Installation & Docking: Supports Panel Mount, featuring Male-Female mating structure for precise positioning and hassle-free assembly/disassembly
-
Integrated Multi-Pin Function: 3+9 Pin independent circuits enable simultaneous power supply and multi-channel signal transmission, achieving high functional integration
-
Outdoor Durability: Sealed waterproof design effectively withstands rain, moisture and dust, making it suitable for long-term outdoor service
-
Widely used in outdoor monitoring equipment, outdoor lighting systems and other scenarios requiring outdoor waterproof power supply
-
Suitable for industrial automation production lines, outdoor testing instruments and other equipment that need to transmit power and multi-channel signals at the same time
-
Applicable to various medium-power outdoor electrical equipment connection needs requiring Panel Mount and Male Female docking
-
Provides customization services for M25 3+9 Pin multi-pin connectors, which can be adapted according to actual installation dimensions and cable specifications (wire diameter/length)
-
For customization, detailed usage scenarios and technical parameters need to be provided, and a professional team will provide exclusive Panel Mount adaptation solution
| Product Type Features | |
| Connector System | Cable-to-Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Configuration Features | |
| Number of Positions | 3+9 |
| Number of Signal Positions | 9 |
| Contacts Preloaded | Yes |
| Electrical Characteristics | |
| Operating Voltage (VAC) | 600V max. |
| Operating Voltage (VDC) | 600V max. |
| Body Features | |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Contact Features | |
| Contact Current Rating (Max) (A) . | 30A+5A max. |
| Circular Connector Contact Type | Pin-Socket |
| Mechanical Attachment | |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Dimensions | |
| Wire Size (AWG) | 20AWG,18AWG,16AWG,14AWG, |
| Usage Conditions | |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Industry Standards | |
| UL Flammability Rating | UL 94V-0 |
Production Dimension
More Technical Details
FAQ
Q1:How many materials you can provide?
A1:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
Q2:What if there are quality issues with the received goods?
A2: Please provide photos/videos of the defective products within 7 days of receipt. We will verify the issue and offer solutions such as free replacement, repair, or partial refund based on the situation.
Q3:How to choose the suitable connector?
A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.
