M16 Wire To Wire Power Connector Rohs Waterproof 300V Connector 3 Pin For Power
Wire‑to‑Wire Direct Connection Design
Specially designed for wire‑to‑wire power connection, enabling fast and stable docking between two cables without PCB or panel, greatly improving wiring efficiency.
IP67 Waterproof & Dustproof Protection
With integrated sealed structure, it reaches IP67 protection grade, effectively isolating moisture, rain, dust and oil, suitable for outdoor and harsh industrial environments.
3‑Pin Special Power Terminal Configuration
Optimized 3‑pin layout for stable power transmission, with low contact resistance and high conductivity, ensuring safe and reliable power supply for various equipment.
300V Rated Voltage for Wide Application
Rated voltage up to 300V, ideal for low‑voltage power systems, lighting, electrical equipment and industrial control devices.
RoHS Compliant & Environmentally Friendly
Fully meets RoHS environmental standards, free of hazardous substances, safe for industrial and daily use, and eco-friendly.
- Push lock quick release system

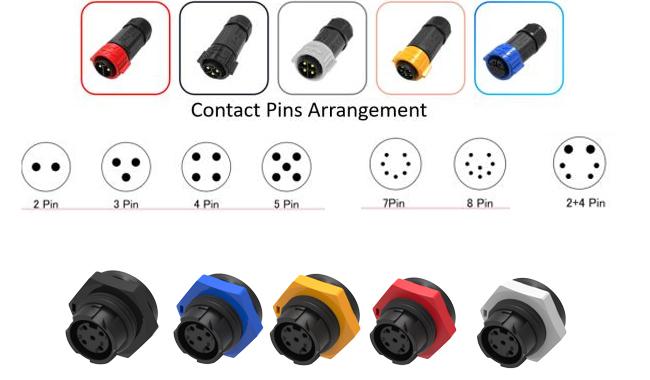

- Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin available
- Field assembly version: wire-to-wire and wire-to-board options
- High current rated waterproof connector up to 10A for continuous operation
- Cable assembly service supported with customization options
- OEM/ODM services available
| Number of Poles | 3Pin waterproof connector |
|---|---|
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s |
| Contact Resistance | 10 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
- Communications equipment
- Product coding machines
- Inventory product coding systems
- Inkjet systems
- Solar systems
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Heavy machinery
There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
