IP67 M19 9 Pin Push Locking Cable Male Female Connector ODM Outdoor Waterproof Connector
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3~6working days
Brand:
Ulinkcon
Product Description

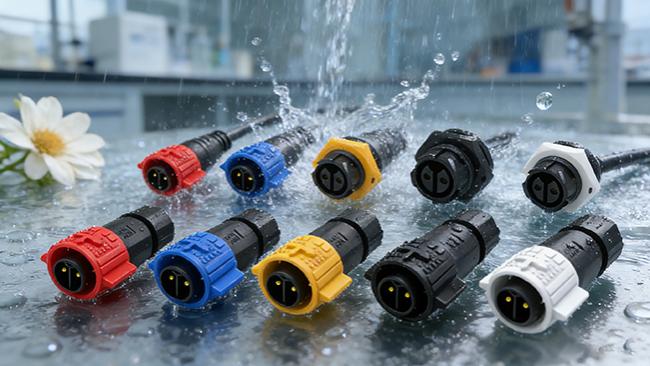

M19 9 Pin Male Cable Connector - Industrial Waterproof IP67 Connector
9 Pin Data Connector M19 IP67 Waterproof Connector
Main Features
- Push lock quick release system for easy connection
- Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
- Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
- Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
- Field assembly version with wire to wire and wire to board options
- 5A current rating for continuous operation
- Cable assembly service supported with custom options available
- OEM/ODM services welcome
Application Industries
- Growth Lights
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Heavy Machinery
Product Overview
IP67 Waterproof & Dustproof
IP67 rated protection, suitable for outdoor and harsh industrial environments, stable and safe.
IP67 rated protection, suitable for outdoor and harsh industrial environments, stable and safe.
M19 Standard Circular Design
Standard M19 circular size, good compatibility, easy installation and replacement.
Standard M19 circular size, good compatibility, easy installation and replacement.
9-Pin Data Connector
9-pin configuration dedicated for stable data and signal transmission in control systems.
9-pin configuration dedicated for stable data and signal transmission in control systems.
Push Locking Mechanism
Push-lock quick connection, tool-free, fast plugging and stable connection.
Push-lock quick connection, tool-free, fast plugging and stable connection.
Male & Female Cable Type
Male and female butt-joint for cable connection, convenient for on-site wiring and maintenance.
Male and female butt-joint for cable connection, convenient for on-site wiring and maintenance.
ODM Supported
Professional manufacturer supports ODM customization to meet different project requirements.
Professional manufacturer supports ODM customization to meet different project requirements.
Electrical Parameters
| Number of Poles | 9Pin |
|---|---|
| Current Rating | 5A max |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60s |
Technical Parameters
| Contact Resistance | 10 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Operation Parameters
| Voltage Rating | 300VAC max |
|---|---|
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max Cable Cross Section Area | 0.5mm² ~ 2.5mm² |
Design Sketch
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: How to track my shipment?
A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
Q: How can I get samples?
A: We are pleased to provide samples, with freight costs covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.
Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
