M19 20A 2 Pin High Current Power Connector China IP67 Waterproof Connector Supplier
M19 2Pin 20A Push Lock Power Waterproof Circular Connectors
Main Features
- Push lock quick easy release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Quick Details of 2Pin Connector Male female
| Product Type Features | |
| Connector System | Cable-to-Cable/Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, socket |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Electrical Characteristics | |
| Number of Poles | 2 |
| Current Rating | 20A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
| Body Features | |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Usage Conditions | |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Operation/Application | |
| Durability Rating (Cycles) | 250, 251 |
| Industry Standards | |
| UL Flammability Rating | UL 94V-0 |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery

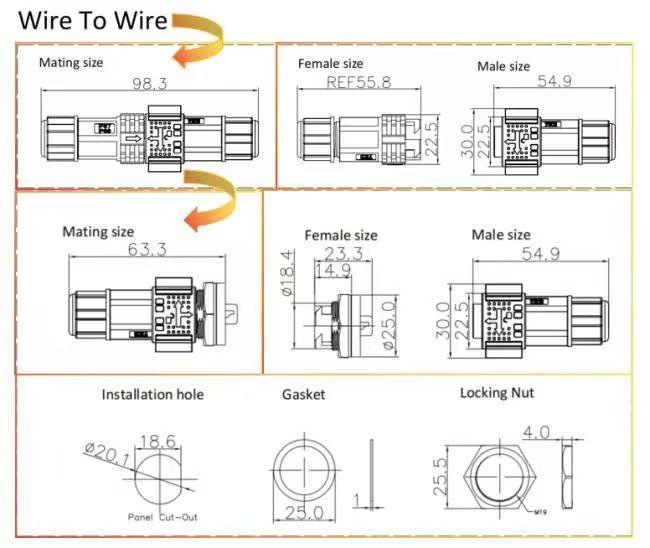

More Technical Details
FAQ
Q1:How can I get samples?
A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:How to track my shipment?
A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
