3 Phase Waterproof Panel Mount Connector M16 OEM Electrical Connectors 300V
300V Rated Voltage, Stable Transmission: Suitable for 3-phase low-voltage power transmission. Excellent insulation, low contact resistance, safe and long-lasting operation.
OEM Customization Available: Support customization of pin count, cable, length, logo and more to meet different equipment and brand requirements.
Self-Locking Structure, Stable Connection: Thread-free self-locking design for easy plugging, shockproof and anti-loose to ensure stable power supply.
High-Grade Materials, Long Service Life: Heat-resistant and anti-aging insulation shell with gold-plated contacts. Good conductivity, wear and corrosion resistance.
Easy Installation, Higher Efficiency: Panel-mount pre-installed structure with simple wiring. Fast assembly for equipment, reducing installation and maintenance cost.
- Push lock quick release system for easy operation
- Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin

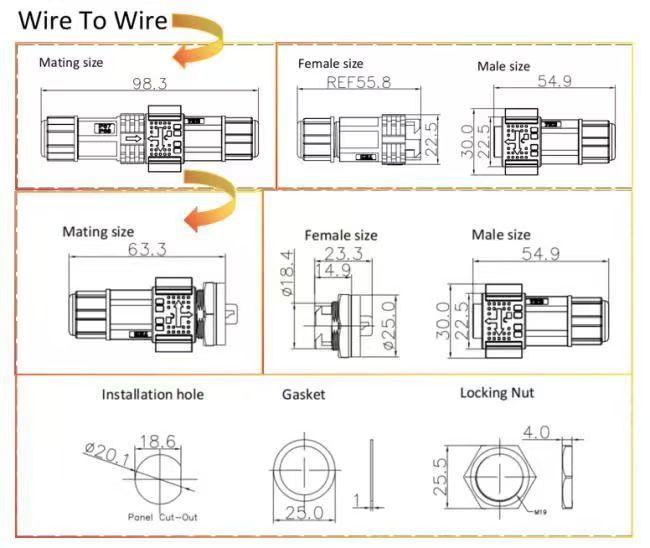

- Field assembly versions: wire to wire and wire to board options
- High current rating up to 10A for long-term operation
- Cable assembly service supported with customization options
- OEM/ODM services available
| Number of Poles | 3Pin waterproof connector |
|---|---|
| Current Rating | 10A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s |
| Contact Resistance | 10 mΩ max |
|---|---|
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Heavy Machinery
