300V M16 8 Pin Push Pull Cable Connectors Male Female Molded Signal Connector Supplier
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
5~8 working days
Brand:
Ulinkcon
Product Description
M16 IP67 Waterproof Circular Connectors 8 Gauge Male To Female Connector For Data
Product Overview
PA66 M16 8 Pin Male Female Connectors - Industrial Data Connector for Signal Transmission
M16 8 Pin Waterproof Connector with 5A rating and IP67 protection, featuring quick-release male-female design for industrial signal transmission applications.
Key Features
-
Product Specifications: Rated voltage 300V, adopting M16 standard interface design with 8Pin configuration, supporting male and female pairing. Tailored for signal transmission scenarios, it complies with international standard, ensuring product versatility and interchangeability, and is suitable for various industrial signal transmission needs.
-
Connection Method & Structure: Equipped with a convenient Push Pull connection design, which allows quick plugging and unplugging without tools, saving installation and maintenance time. The shell adopts an integrated molding process, featuring a compact and firm structure that effectively improves the mechanical stability of the connector and avoids poor contact caused by vibration.
-
Material & Quality Assurance: The contacts are made of brass with gold plating, featuring excellent electrical conductivity and a contact resistance of ≤10mΩ, with a plugging life of more than 5000 times. The insulating shell is made of PA66 material (UL94 V0 flame retardant grade), which is high temperature resistant and corrosion resistant. The seal is made of silicone material, with an IP67 protection level, effectively preventing dust, water and oil pollution, and adapting to harsh industrial environments.
-
Signal Transmission Performance: It has good EMC shielding performance, which can effectively resist external electromagnetic interference, ensure stable and non-attenuated signal transmission, and is suitable for high-precision signal transmission scenarios. It can transmit 8 independent signals at the same time, avoid signal crosstalk, and ensure the accuracy of equipment operation.
-
Supplier Advantages: Direct supply from the source manufacturer, with a complete R&D, production and testing system. All products have passed 100% electrical testing and plugging testing, complying with RoHS and REACH environmental standards. Support bulk customization with stable delivery time, provide one-on-one technical consultation and after-sales maintenance services, with outstanding cost performance.
Product Specifications
| Connector System | Cable-to-Cable |
|---|---|
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, socket |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Number of Poles | 8 |
| Current Rating | 5A max. |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60 s. |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Operating Temperature Range | -40°C to +105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| Durability Rating | 500 Cycles |
| UL Flammability Rating | UL 94V-0 |
Additional Features
- Push lock quick release system for efficient operation

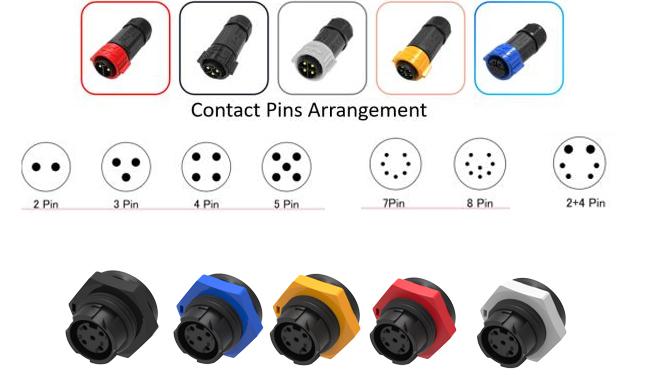

- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
- Field assembly version with both wire-to-wire and wire-to-board options
- Current rated 5A for long-term continuous operation
- Cable assembly service supported with custom options available
- OEM/ODM services welcome for specialized requirements
Application Industries
- Communications Equipment
- Product Coding Machines and Inkjet Systems
- Inventory Product Coding
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Heavy Machinery
Production Dimensions
Technical Details
Frequently Asked Questions
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Can I pay after receiving the goods?
For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
How to track my shipment?
Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
