IP67 M16 7 Pin 300V Low Voltage LED Connectors Circular Male Female Connector Sizes
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3~6working days
Brand:
Ulinkcon
Product Description
5A M16 Nylon 7 Pin Waterproof Connector CE Plastic PA66 Data Quick Lock Connector
Product Overview
M16 Male Female 7-Pin Waterproof Automotive Connectors designed for low power signal transmission with reliable performance in demanding industrial environments.
Main Features
- Push lock quick release system for easy installation
- Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
- Field assembly versions: wire to wire and wire to board
- Cable assembly service supported with custom options available
- OEM/ODM services welcome
Product Specifications
-
Core Positioning & Applicable Scenarios: Circular male and female connectors specially designed for low-voltage LED equipment, adopting M16 standard interface and 7Pin pin layout, with a rated voltage of 300V. Suitable for various low-voltage LED lighting systems (such as LED strips, LED lamps, LED displays), and can also be used for synchronous transmission of signals and power in small LED control equipment, which is a dedicated connection solution for the LED industry.
-
Protection Performance & Structural Design: With IP67 protection level, it can be completely dust-proof and protected against short-term water immersion (no damage within 30 minutes at 1 meter depth underwater), suitable for harsh working environments such as outdoors, humidity and dust. Adopting a circular integrated structure, the male and female heads are accurately aligned, combined with a silicone sealing gasket, which effectively isolates water vapor and dust intrusion and ensures the long-term stable operation of LED equipment.
-
Material & Durability: The shell is made of flame-retardant PC material, which is high temperature resistant (-40℃~105℃), impact resistant and anti-aging, meeting UL94 V0 flame retardant grade. The pin plugging life can reach more than 5000 times, and it is not easy to oxidize and deform after long-term use, which is suitable for the long-term continuous working needs of LED equipment and reduces maintenance costs.
-
Product Advantages & Compliance: Produced by the source factory, supporting bulk customization and small-batch trial orders with flexible delivery time. All products have passed IP67 protection test and electrical performance test, complying with RoHS and REACH environmental standards, and compatible with mainstream LED equipment interfaces at home and abroad. Provide perfect after-sales guarantee, and can provide one-on-one interface adaptation suggestions according to customers' LED project needs.
Electrical Parameters
| Number of Poles | 7Pin |
| Current Rating | 5A max. |
| Voltage Rating | 60VAC max |
| Durability Voltage | 500VAC @ 60 s. |
Technical Parameters
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Operation Parameters
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max Cable Cross Section Area | 0.5mm² ~ 2.5mm² |
Application Industries
- Growth Lights
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Heavy Machinery

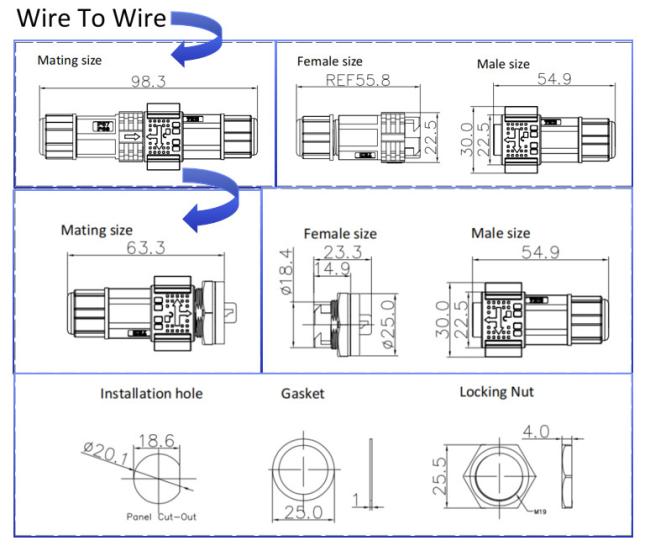

Product Images
Frequently Asked Questions
How to track my shipment?
Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
Where is your factory located?
Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
What is your Minimum Order Quantity (MOQ)?
The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
Can I have custom label?
Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
