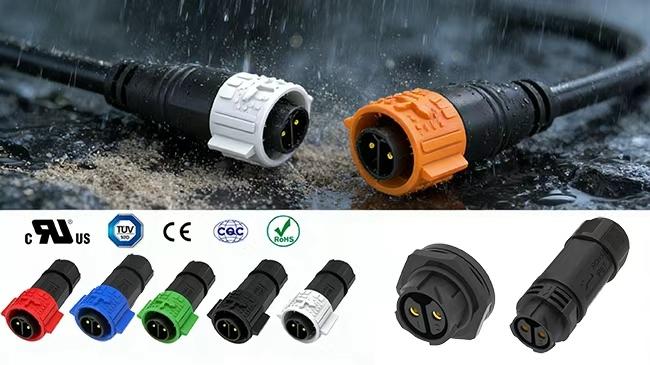

M19 IP67 Waterproof 3+5 Pin Plug Socket Connector 20A Male Female Power Data Connector 8 Pin
20A Waterproof Data Cable Connector 3 +5 Pin M19 IP67 Circular Connectors
Quick Description
-
Core Configuration: M19 circular self-locking design, 3+5 Pin (total 8 Pin) separate layout, 3 Pins for 15A power transmission and 5 Pins for data transmission. Male-female plug-in structure realizes synchronous power and data transmission, suitable for medium-power equipment, avoiding signal and power crosstalk.
-
Waterproof Protection: IP67 fully sealed design with double waterproof sealing rings. After self-locking fit, it is completely dustproof and can resist 1-meter water immersion for 30 minutes, effectively isolating water vapor and oil, suitable for harsh scenarios such as outdoor and wet industrial control.
-
Material & Reliability: Housing is made of weather-resistant engineering plastic, resistant to high and low temperatures (-40℃~105℃) and impact; gold-plated copper alloy pin cores have low contact resistance, strong oxidation resistance, smooth plugging and qualified mechanical life.
-
Electrical Performance: Rated current 20A, rated voltage 300V, insulation resistance ≥500MΩ, qualified withstand voltage, anti-electromagnetic interference, efficient power transmission and low data transmission attenuation, suitable for synchronous power and data transmission of various medium-power equipment.
-
Ease of Use: Self-locking design, tool-free manual plugging and unplugging, anti-loosening structure suitable for vibration conditions; compact structure, easy installation, balancing assembly efficiency and later maintenance convenience.
| Electrical Parameters | |
| Number of Poles | 3+5Pin |
| Current Rating | 15A +5Amax. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Design Sketch
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: Who is responsible for customs clearance? Do you provide necessary documents?
A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
