M19 IP67 Waterproof Male Female Connector PA66 10 Pin Data Connector ODM
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
3~6working days
Brand:
Ulinkcon
Product Description
M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors
Quick Description
- M19 IP67 Waterproof Male Female Connector, made of PA66 material, is a 10-pin data connector specially designed for industrial scenarios, supporting ODM customization services. With excellent waterproof and dustproof performance, stable data transmission capability and robust structural design, it is suitable for various outdoor, humid and complex industrial environments, providing safe and reliable connection guarantee for data interaction between devices.
- Adopting the standard M19 specification design with a 10-pin layout, it accurately matches the medium and high-frequency data transmission needs. The pins are made of high-conductivity copper alloy with precision gold plating, featuring extremely low contact resistance and low transmission loss. It can efficiently and stably transmit various industrial control signals, detection data, etc., avoiding data loss, signal interference and other problems caused by poor contact, and ensuring the accuracy and real-time performance of equipment data interaction. The rated working current can reach 5A, and the maximum rated voltage is 300V, which takes into account both data transmission and small-scale power supply needs, adapting to multi-scenario applications.
- It has outstanding waterproof and dustproof performance, reaching IP67 protection level, combined with a double-layer silicone sealing ring design, which can completely block the intrusion of rainwater, dust, oil, fog and other impurities. It can work normally even in an environment of 1 meter underwater for 30 minutes continuously, adapting to harsh working conditions such as outdoor, humid and dusty environments. The shell is made of high-quality PA66 engineering plastic, which has excellent impact resistance, vibration resistance, UV resistance, high and low temperature resistance. The flame retardant grade reaches UL94 V-0, which can withstand severe vibration, accidental collision and alternating high and low temperature environments (-40℃~125℃) during the operation of industrial equipment, not easy to age and deform, greatly extending the service life of the product and reducing maintenance costs.
- Adopting male-female pairing design, it is smooth in plugging and unplugging with precise positioning, combined with a thread-type locking structure, which is firm and reliable after connection, effectively preventing loose connection or falling off caused by equipment vibration and external pulling, and ensuring the continuity of data transmission. It is easy to install, no professional and complex equipment is required, wiring is done through screw terminals, adapting to various installation methods, and on-site installation and maintenance can be completed quickly. It supports ODM customization services, and can customize the number of pins, wiring methods, shell color, protection level upgrade, etc. according to customers' specific needs, meeting the personalized connection needs of different industrial equipment. The product is widely used in industrial automation, outdoor monitoring, intelligent equipment, construction machinery, instruments and meters and other fields, complying with international certification standards such as UL, CE and ROHS, with stable quality, and can be long-term adapted to data transmission needs in various complex industrial scenarios.
| Electrical Parameters | |
| Number of Poles | 10Pin |
| Current Rating | 5A max. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Main Features
- Push lock quick release system

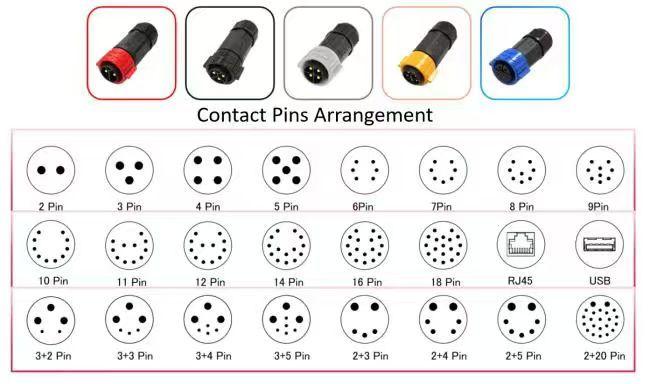

- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
